Inspection Procedure 12

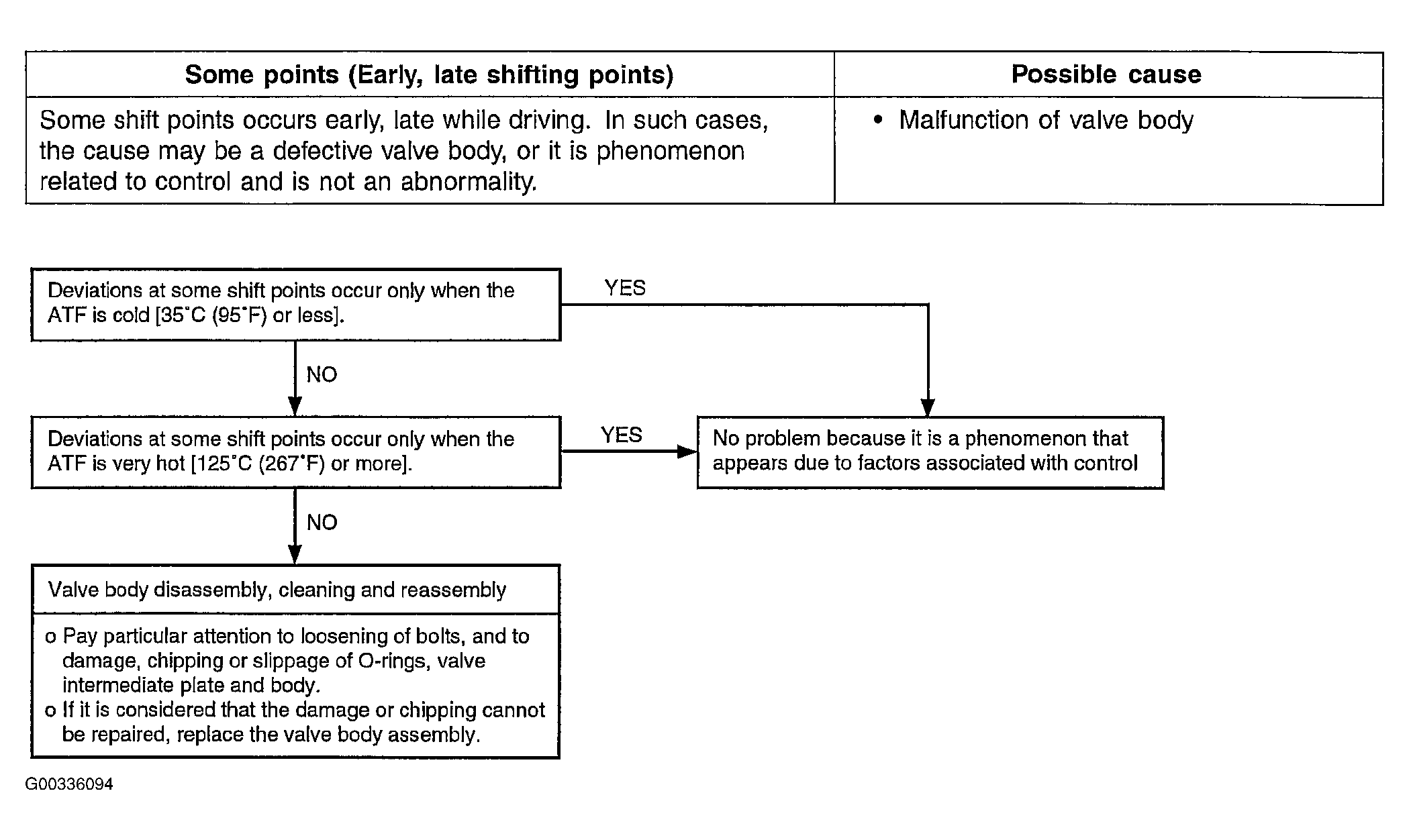

Fig 1: Inspection Procedure 12 Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
