Body Control Module: Service and Repair

REMOVAL AND INSTALLATION
1. Disconnect the negative (-) battery terminal.

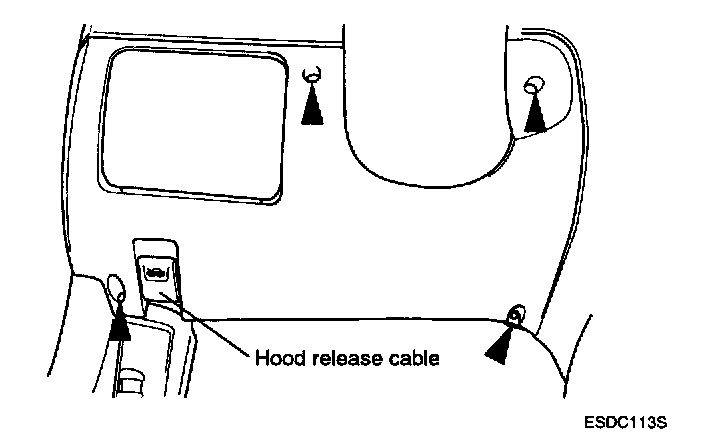

2. Remove the 2 screws and 2 bolts holding the driver's crash pad lower panel.

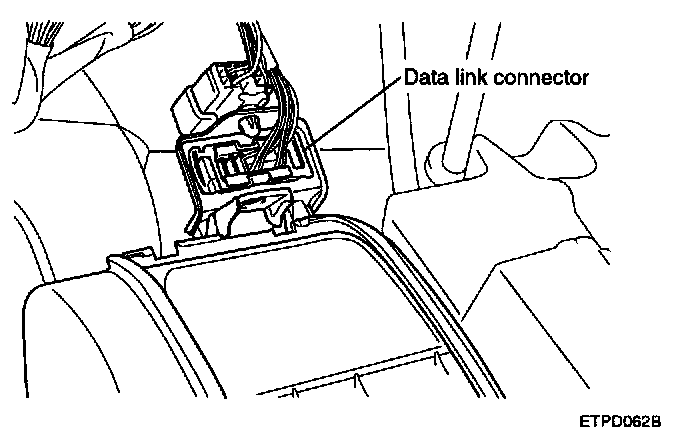

3. Disconnect the hood release cable and the data link connector from beneath the driver's crash pad lower panel.

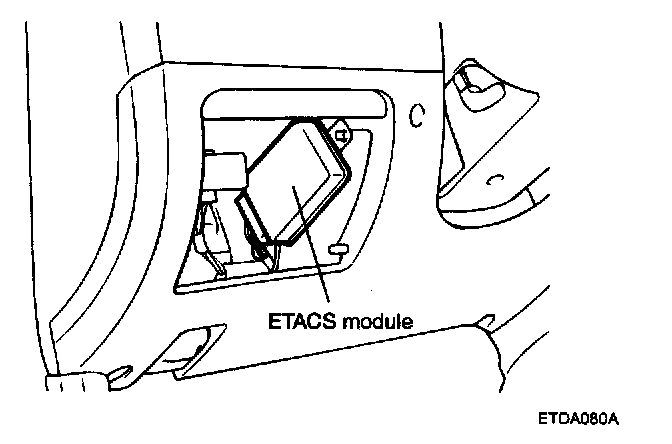

4. Remove the ETACS module from the bracket after removing bolts.
5. Installation is the reverse of removal.
