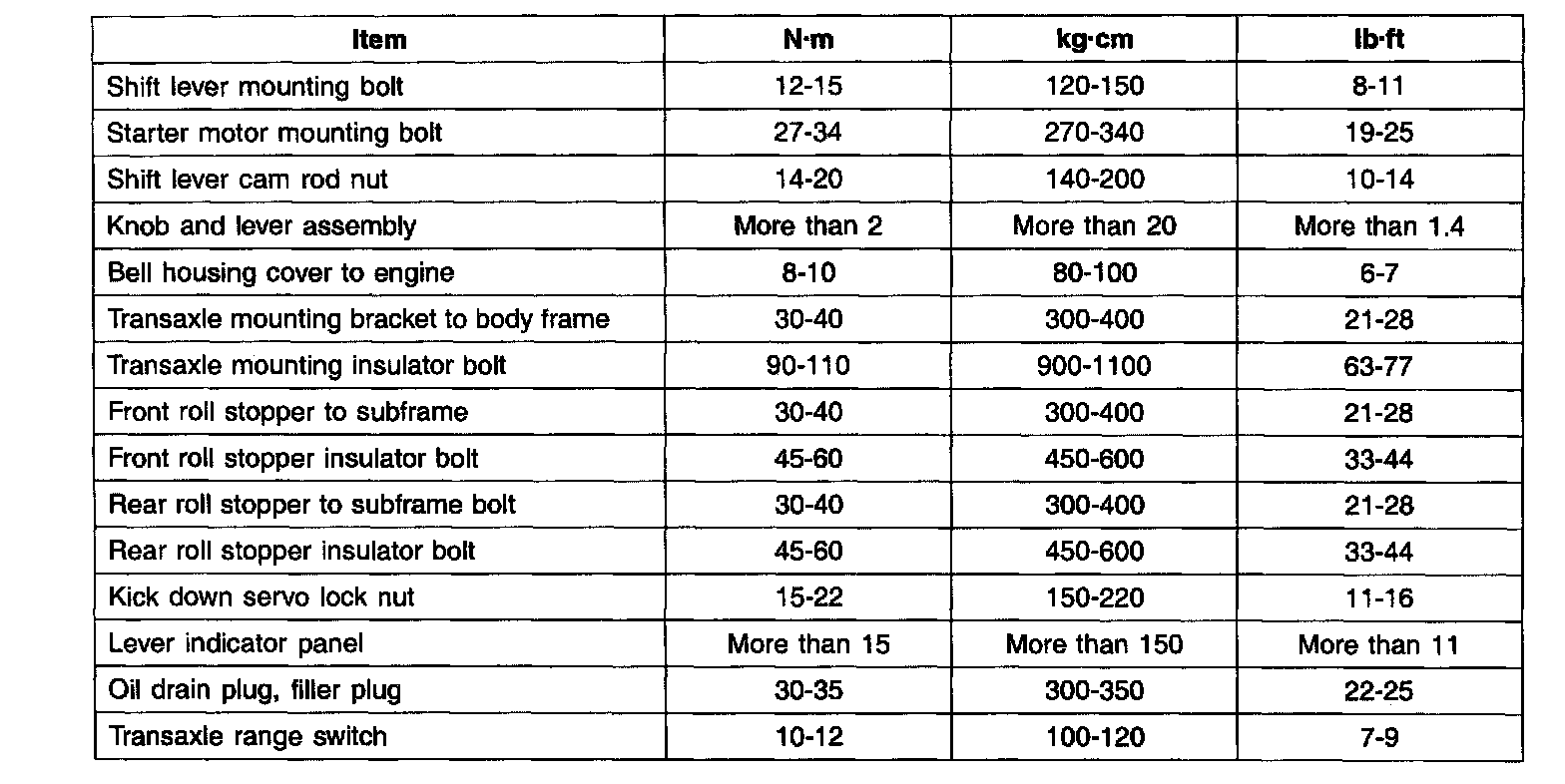

Tightening Torques






AUTOMATIC TRANSAXLE COMPONENTS





COMPONENTS (1)





COMPONENTS (2)





COMPONENTS (3)





COMPONENTS (4)





COMPONENTS (5)
