Inspect Ignition Switch

INSPECT IGNITION SWITCH

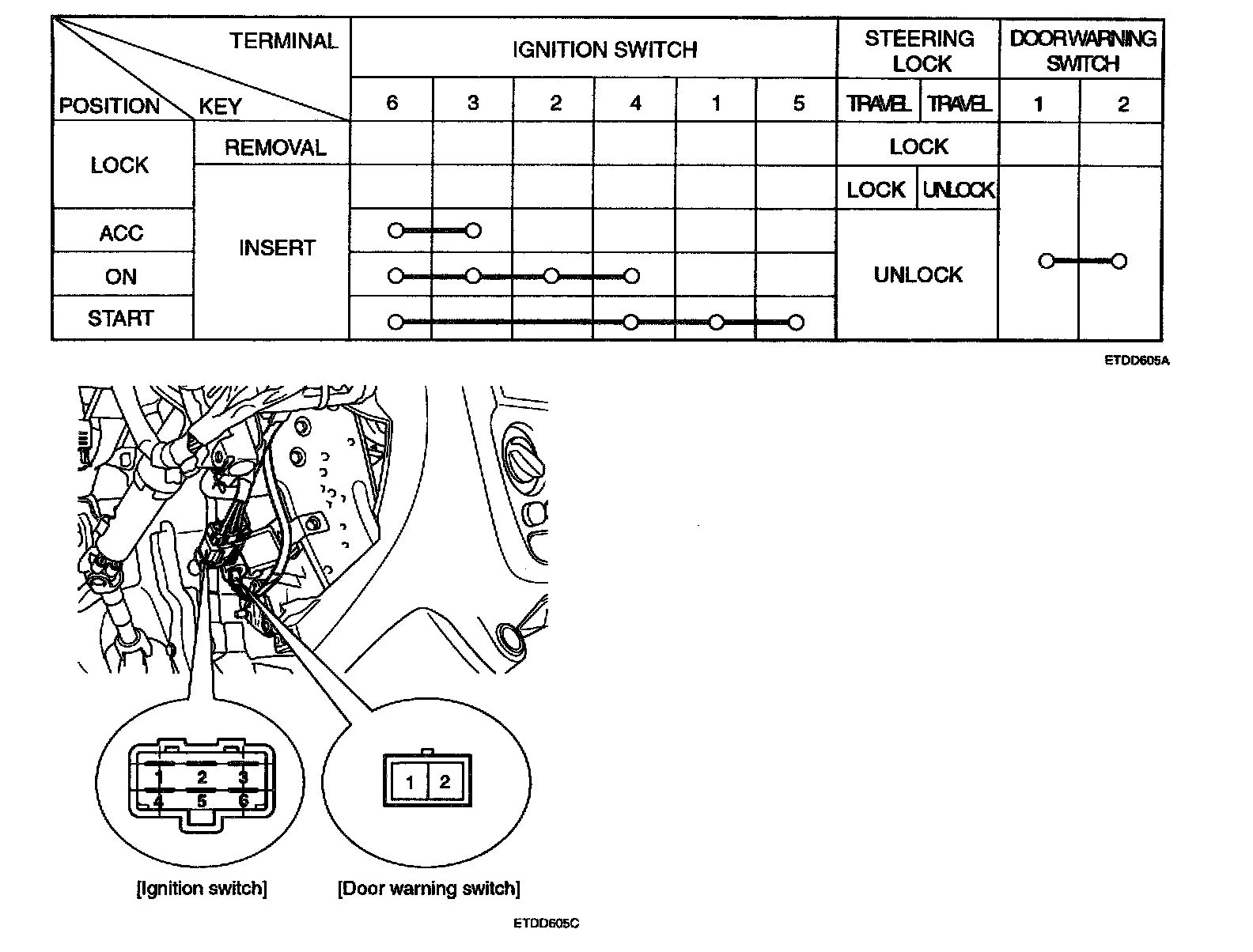

1. Remove the connector located under the steering column.




2. Check for continuity between terminals. If there is no continuity, replace the ignition switch.
