Diagnostic Trouble Code Description Tables

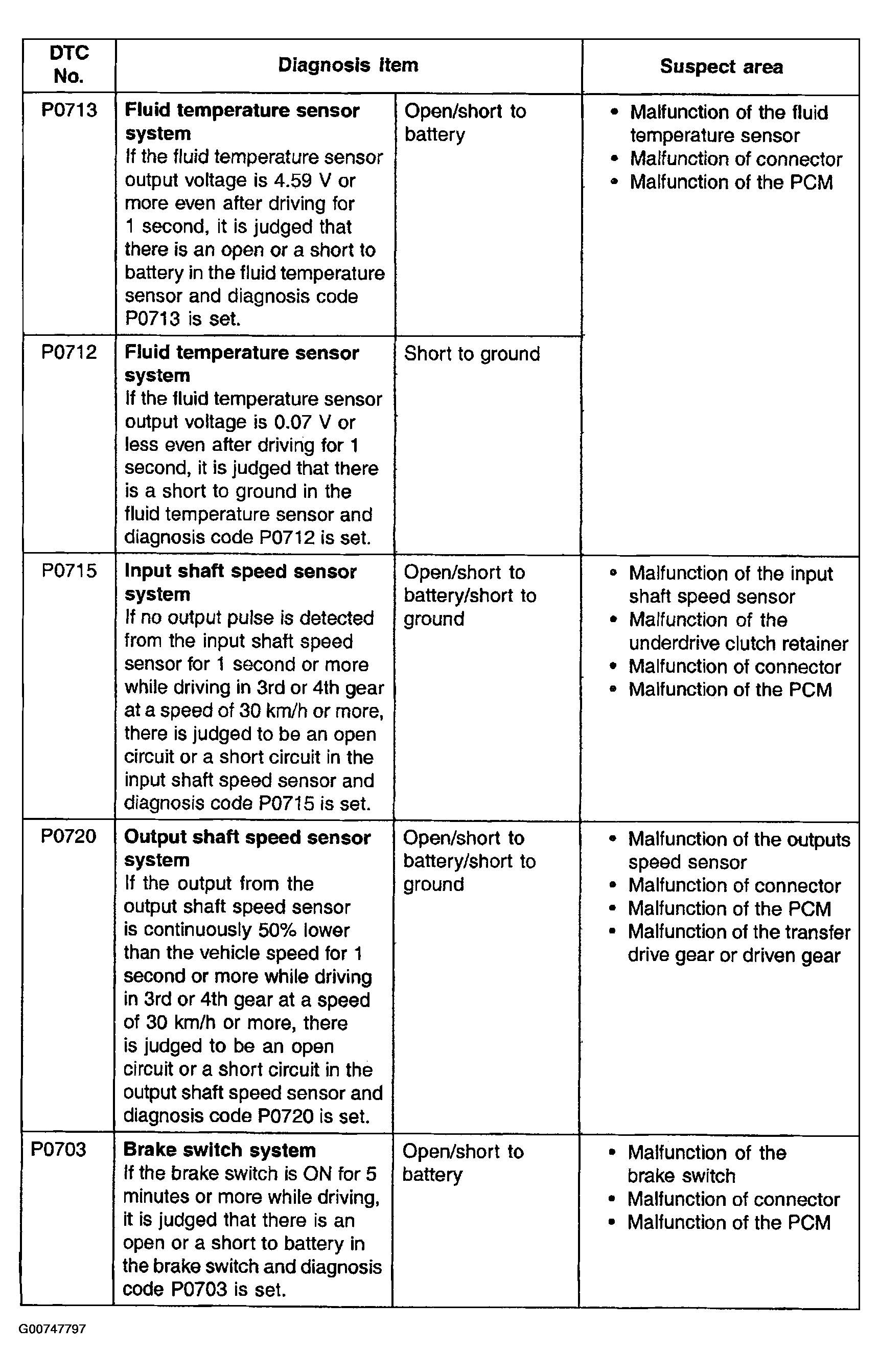

Fig 1: Diagnostic Trouble Code Description Table (P0713, P0712, P0715, P0720 & P0703)

Courtesy of HYUNDAI MOTOR CO.

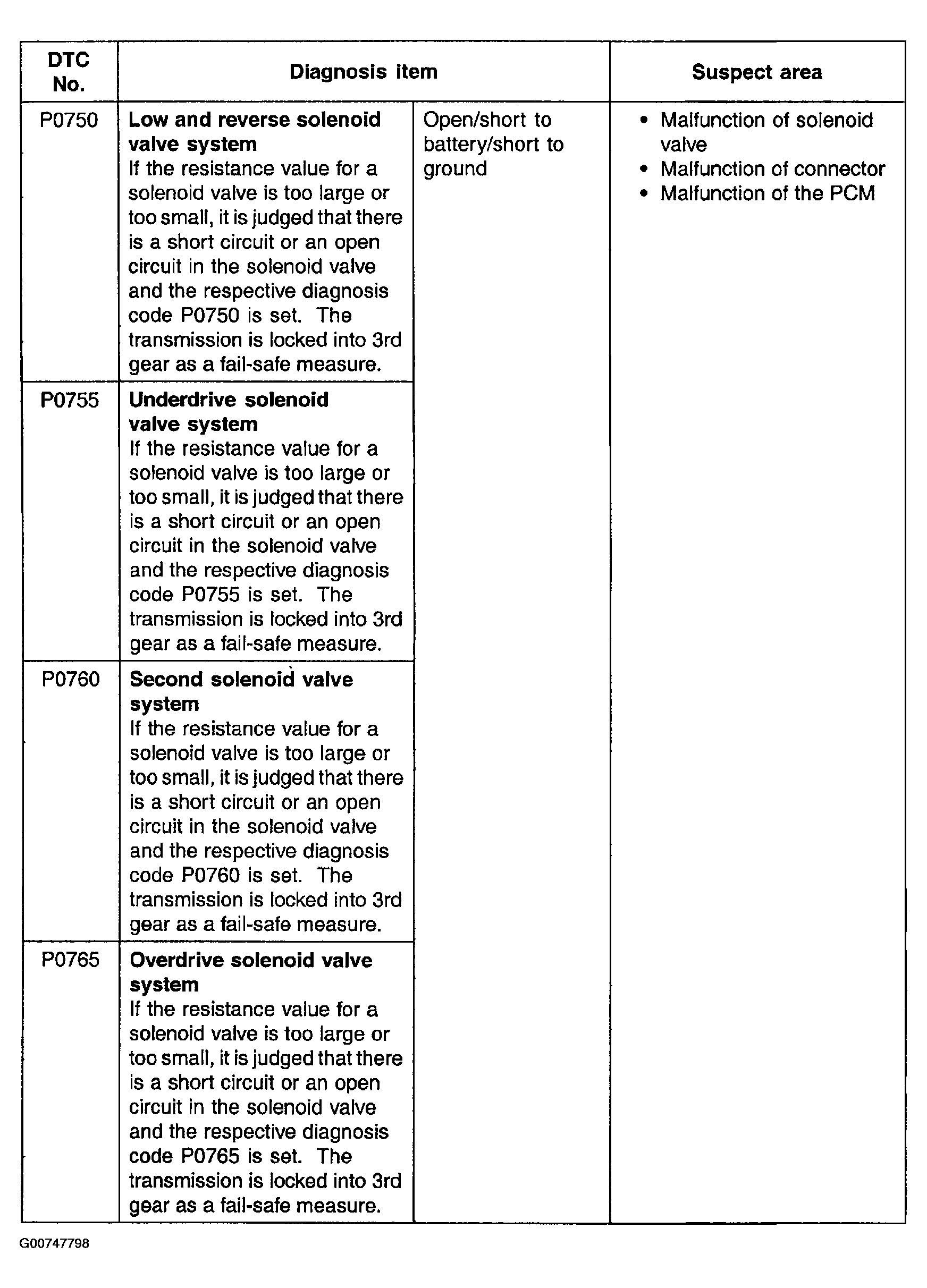

Fig 2: Diagnostic Trouble Code Description Table (P0750, P0755, P0760 & P0765)

Courtesy of HYUNDAI MOTOR CO.

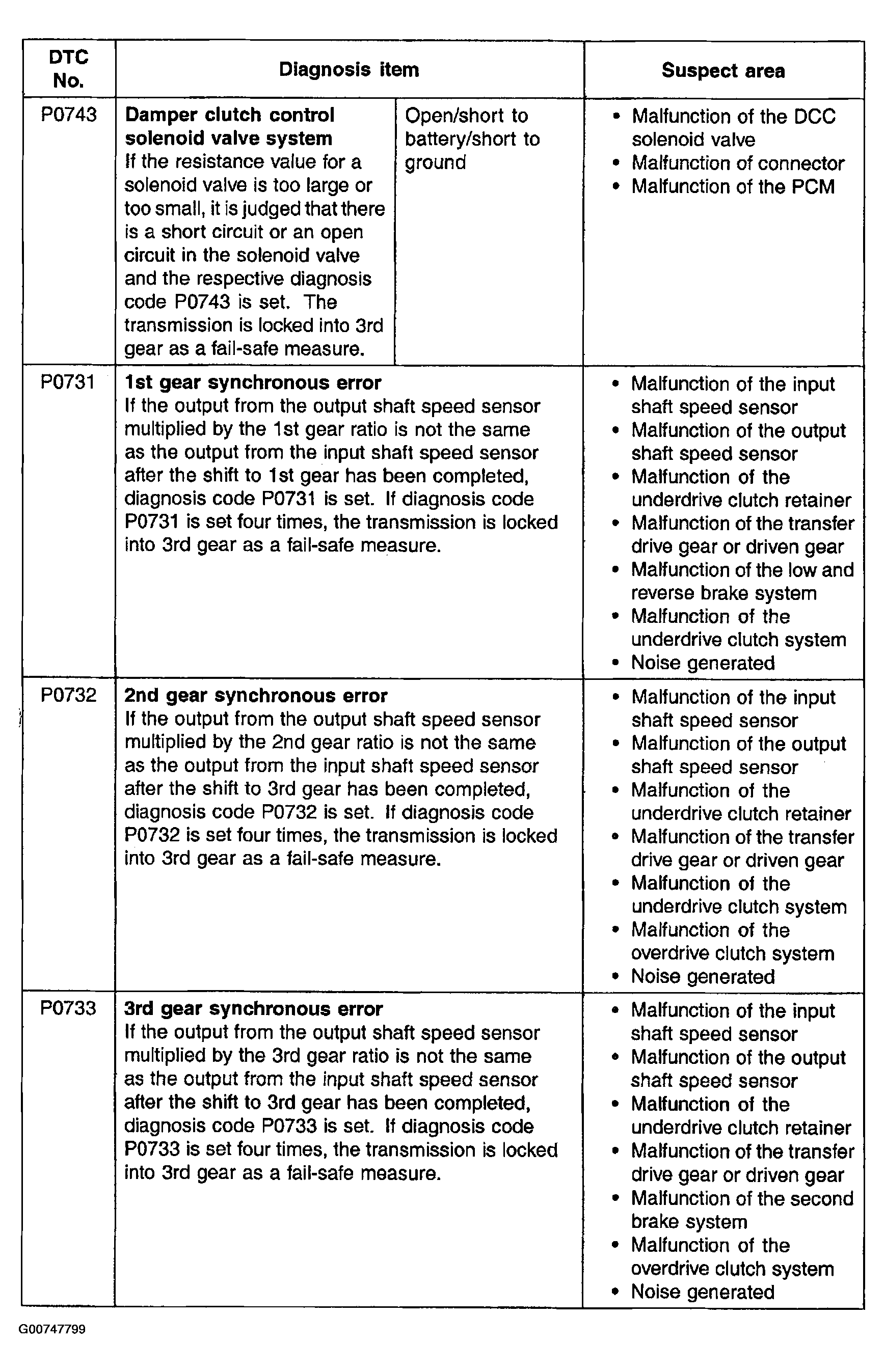

Fig 3: Diagnostic Trouble Code Description Table (P0743, P0731, P0732 & P0733)

Courtesy of HYUNDAI MOTOR CO.

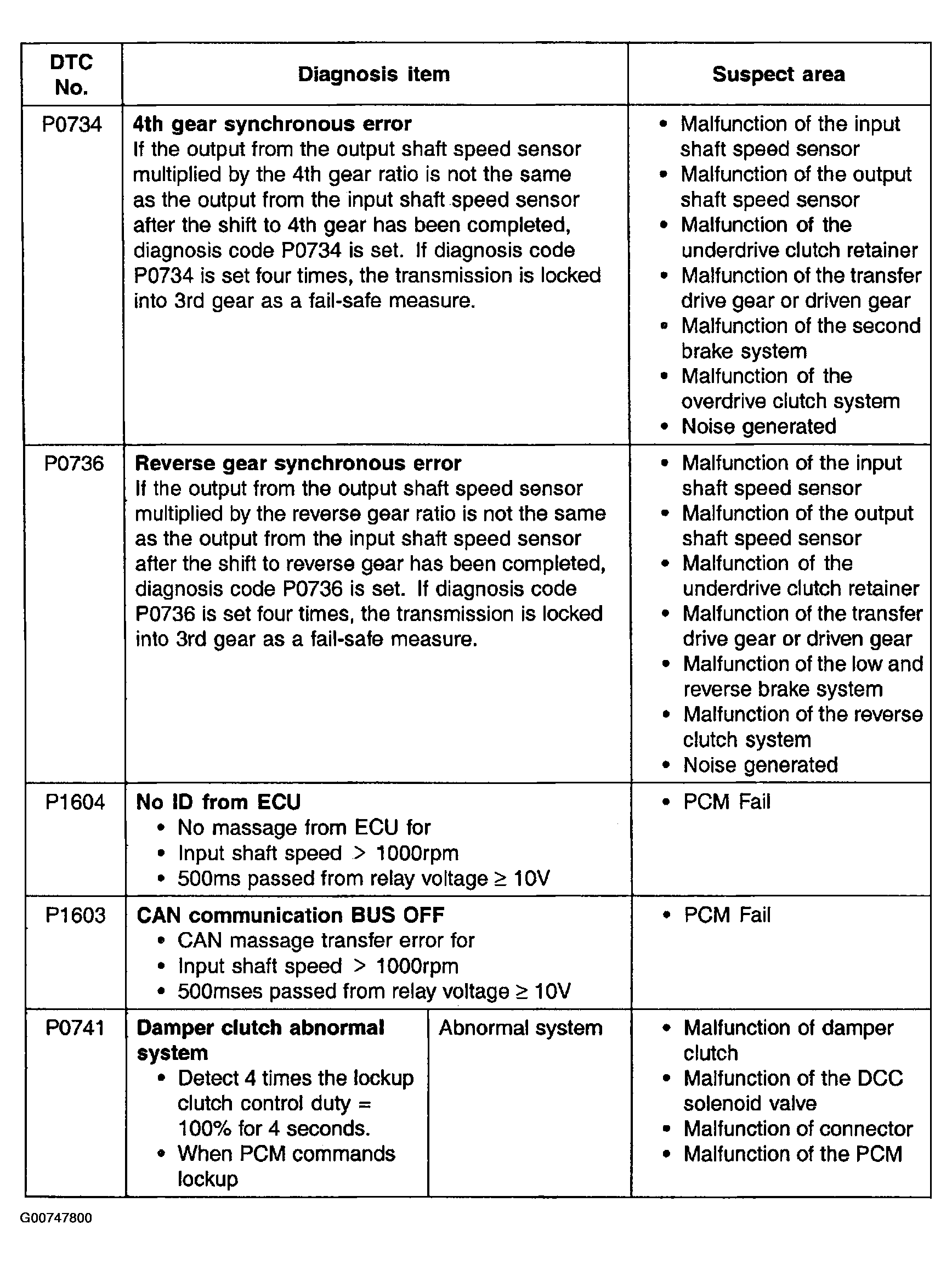

Fig 4: Diagnostic Trouble Code Description Table (P0734, P0736, P1604, P1603 & P0741)

Courtesy of HYUNDAI MOTOR CO.

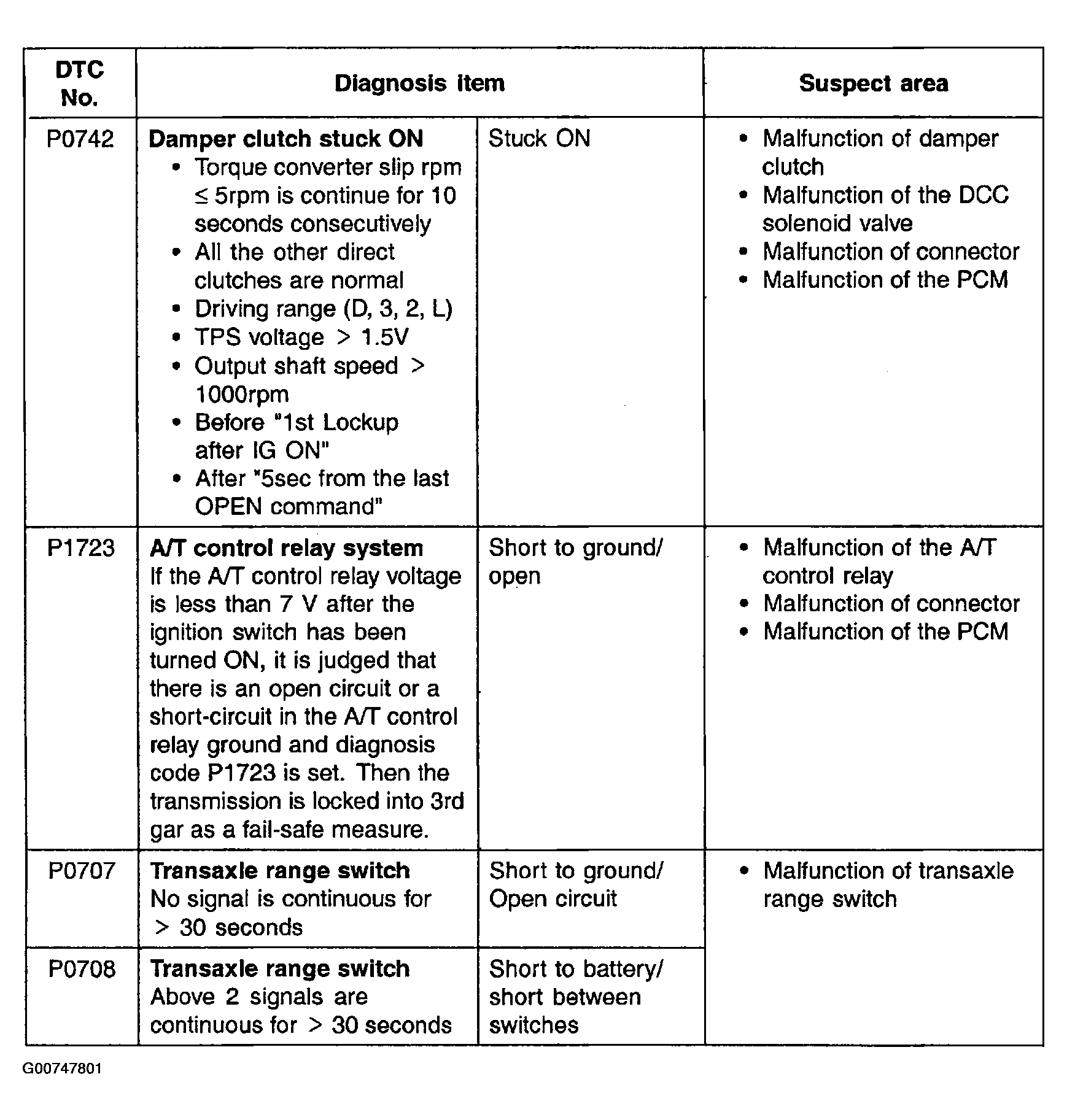

Fig 5: Diagnostic Trouble Code Description Table (P0742, P1723, P0707 & P0708)

Courtesy of HYUNDAI MOTOR CO.
