ETACS Module Input Signal Test: Notes

  1. Disconnect the wire connector(B) from the ETACS module(A).
  2. Inspect the connector(B) on wire harness side as shown in the below.

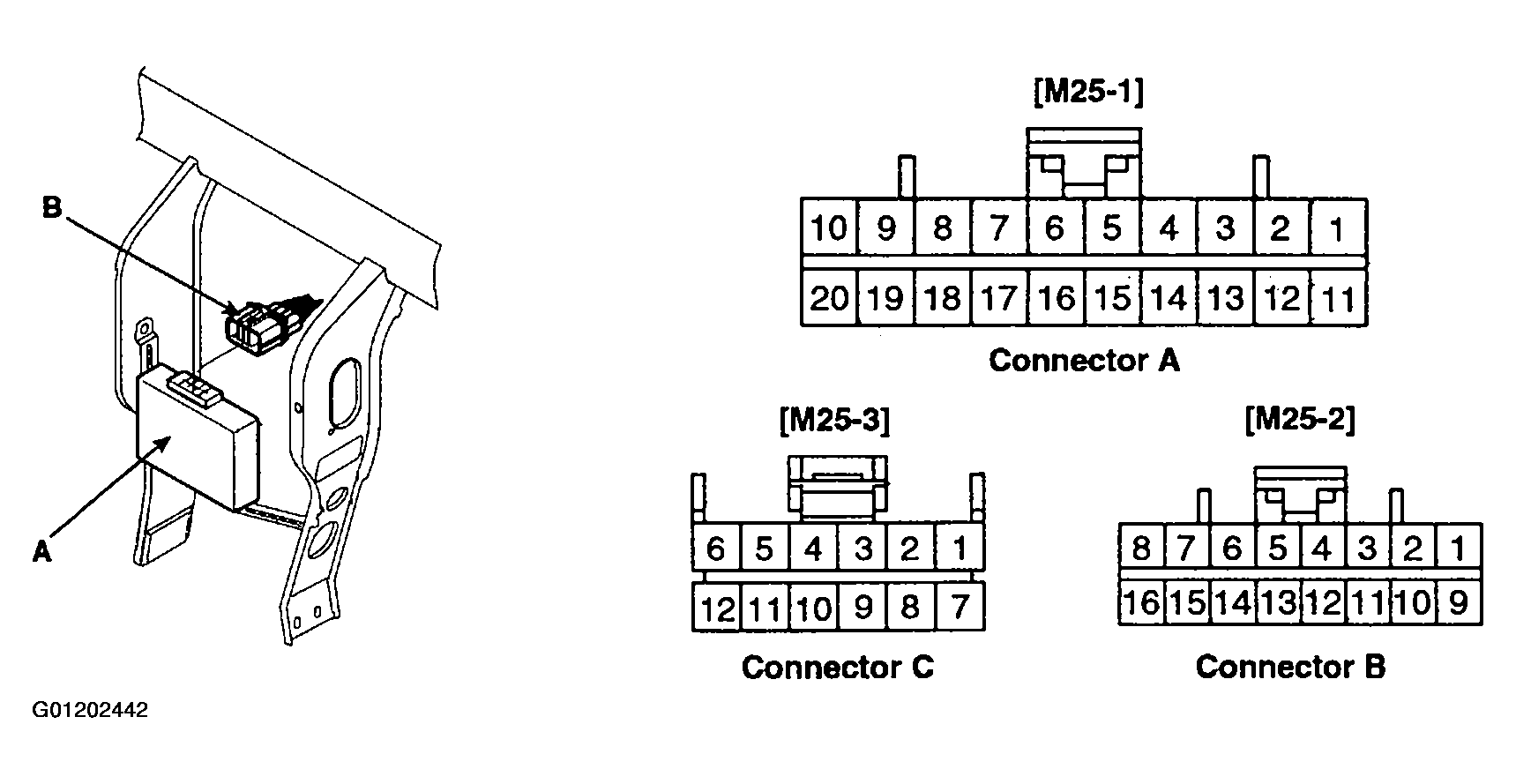

    Fig 1: View Of ETACS Connectors & Terminals
    G01202442Courtesy of HYUNDAI MOTOR CO.

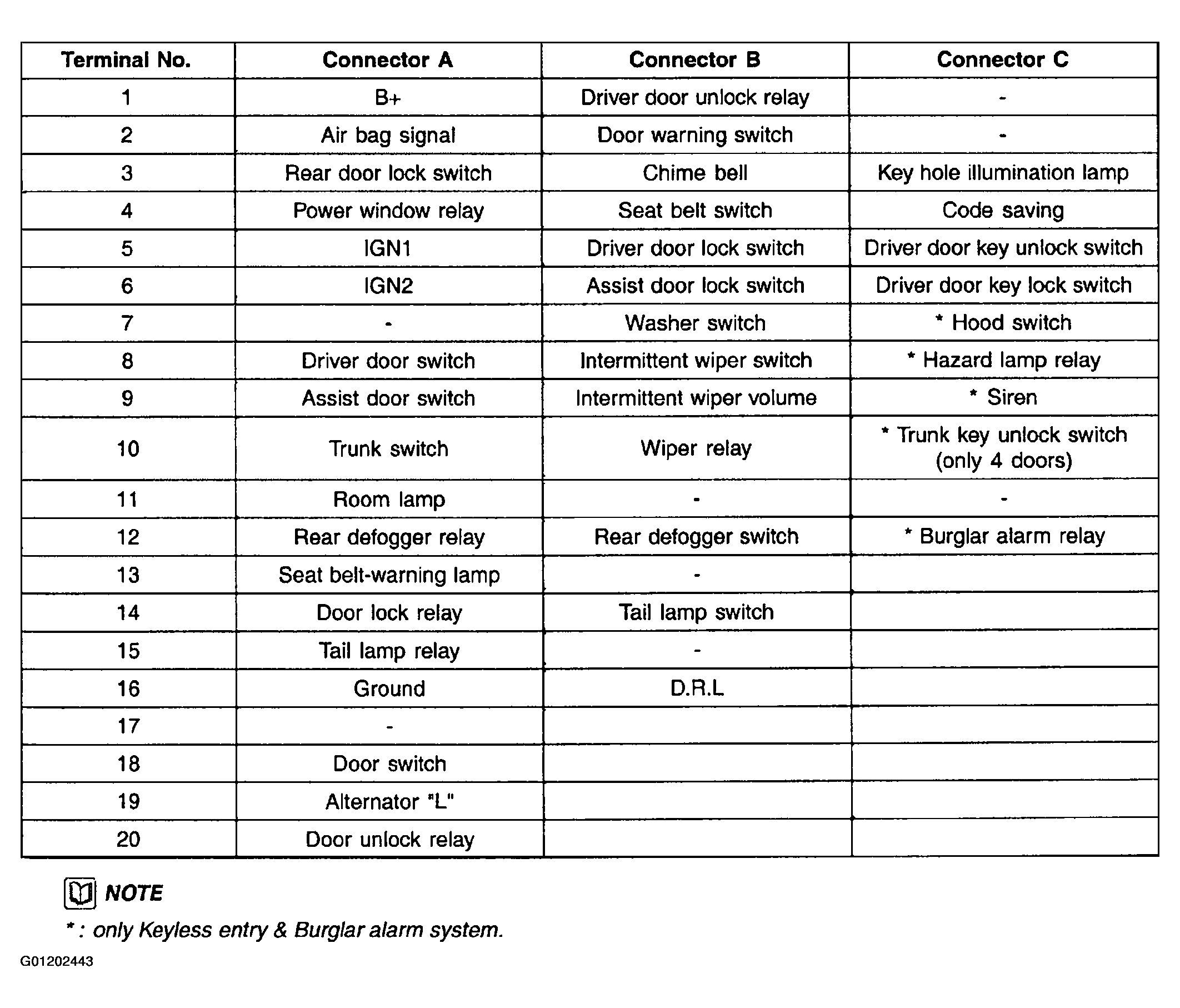

    Fig 2: Identifying ETACS Connectors & Terminals
    G01202443Courtesy of HYUNDAI MOTOR CO.
    NOTE: *: only Keyless entry & Burglar alarm system.
