Power Window Relay: Inspection

  1. Remove the power window relay(A) from the passenger compartment junction block(B).
  2. There should be continuity between the No.1 and No.4 terminals when power and ground are connected to the No.3 and No.2 terminals.
  3. There should be no continuity between the No.1 and No.4 terminals when power is disconnected.

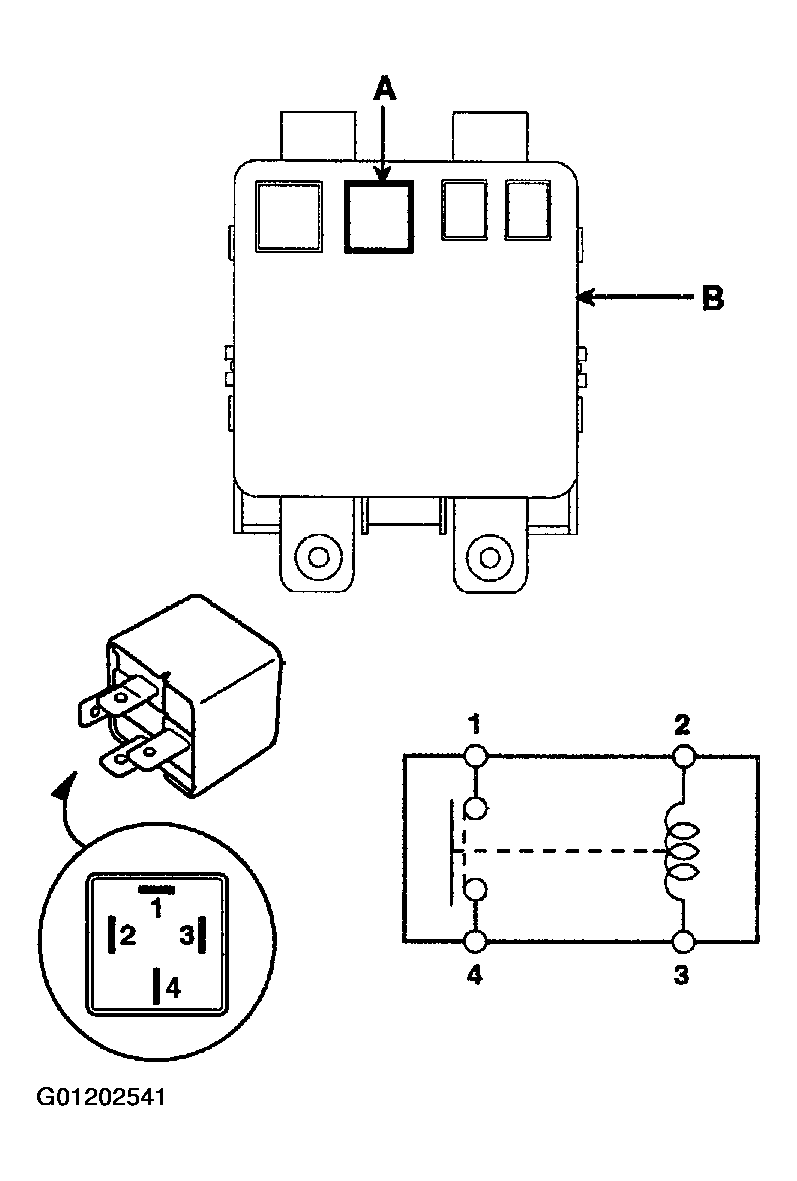

Fig 1: Identifying Power Window Relay & Terminals
G01202541Courtesy of HYUNDAI MOTOR CO.
Fig 2: Power Window Relay Continuity Table
G01202542Courtesy of HYUNDAI MOTOR CO.
