Ignition Switch: Inspection

  1. Disconnect the ignition switch connector and the door warning switch connector under the steering column.
  2. Check for continuity between the terminals.
  3. If continuity is not as specified, replace the switch.

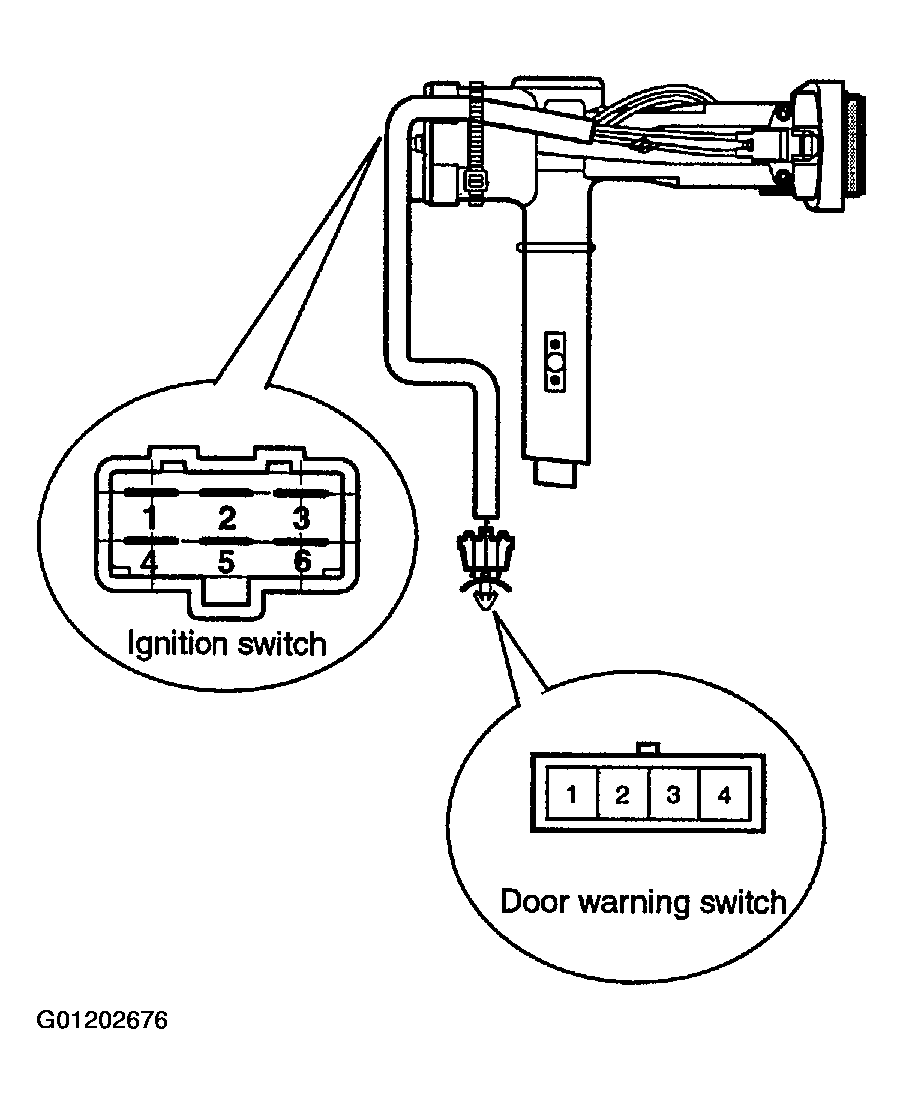

Fig 1: Identifying Ignition Switch & Door Warning Switch Connector Terminals
G01202676Courtesy of HYUNDAI MOTOR CO.

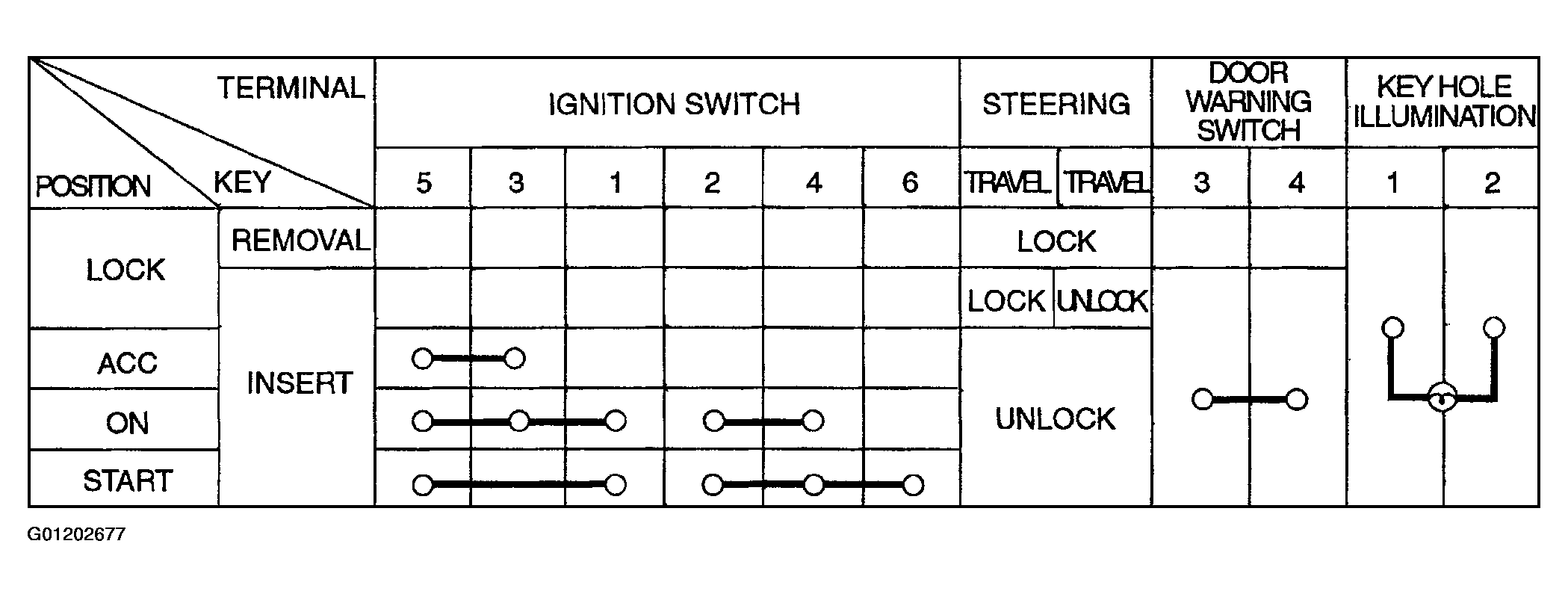

Fig 2: Ignition Switch & Door Warning Switch Continuity Table
G01202677Courtesy of HYUNDAI MOTOR CO.
