Ignition Switch: Removal

Disconnect the negative(-) battery terminal.

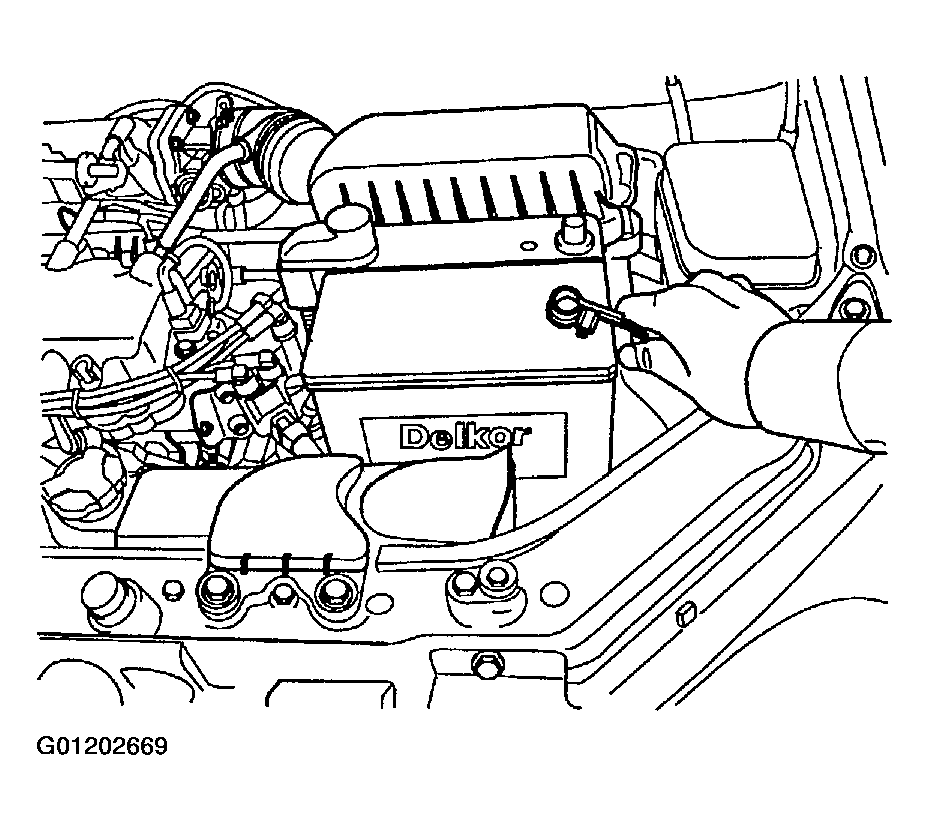

Fig 1: Disconnecting Battery Cable
Courtesy of HYUNDAI MOTOR CO.
Remove the 2 bolts (A) and disconnect the airbag connector and the horn connector, then remove the airbag module.
CAUTION: Remove the horn pad only for vehicle without airbag.

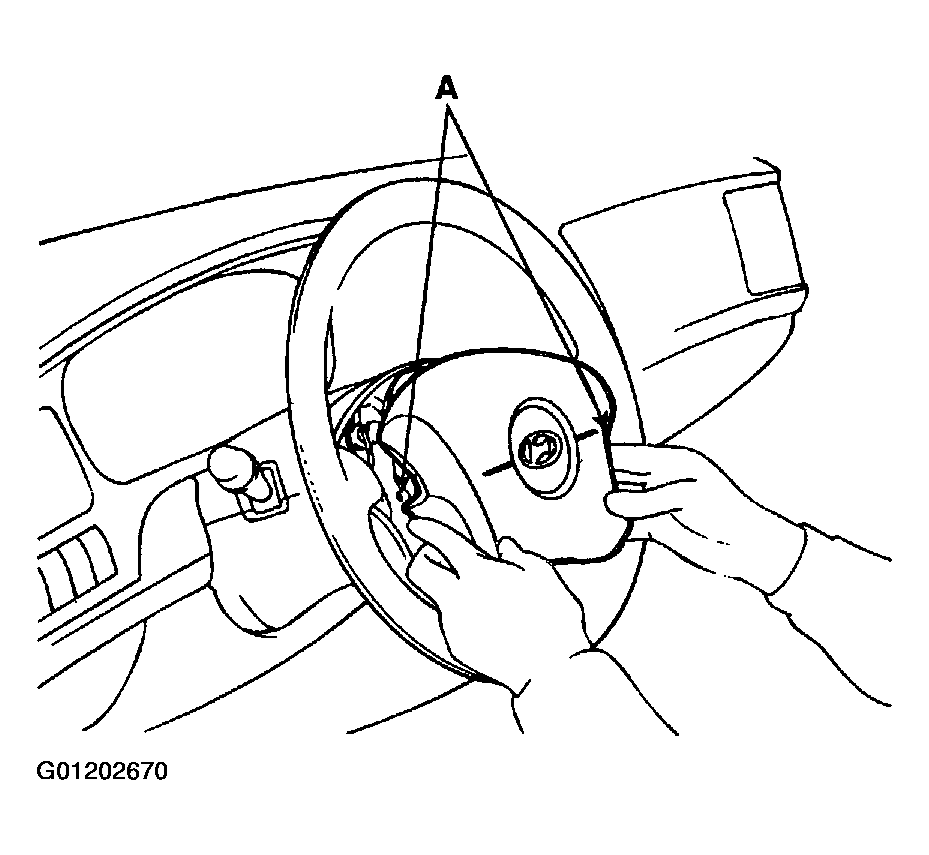

Fig 2: Removing Air Bag Module
Courtesy of HYUNDAI MOTOR CO.
Remove the steering wheel lock nut (A).

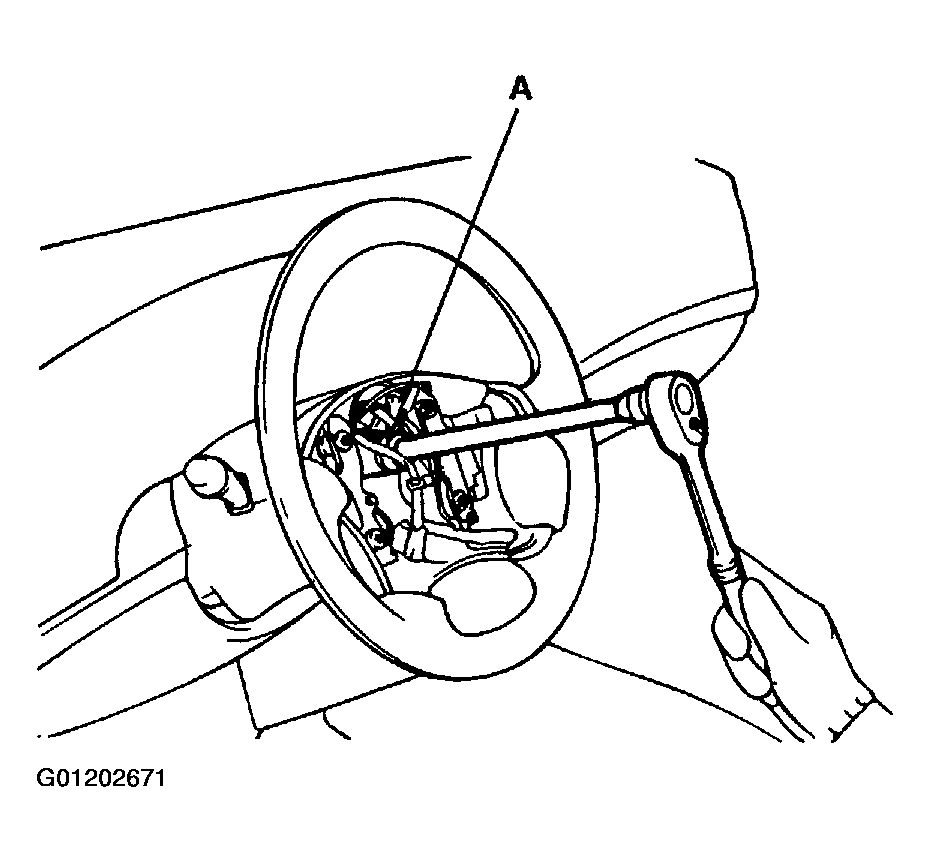

Fig 3: Removing Steering Wheel Nut
Courtesy of HYUNDAI MOTOR CO.
Remove the steering wheel (A) with special tool (09561-11002).
CAUTION: Do not hammer on the steering wheel to remove it. Doing so many damage the collapsible mechanism.

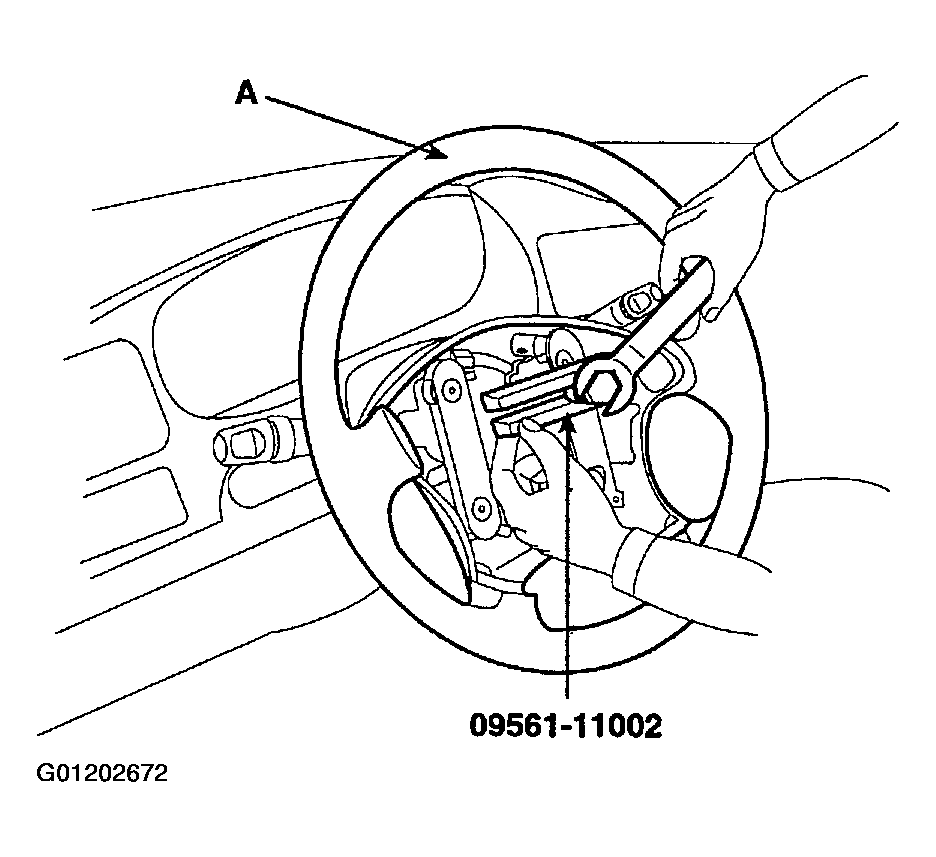

Fig 4: Removing Steering Wheel With Puller
Courtesy of HYUNDAI MOTOR CO.
Remove the steering column shroud after removing 3 screws (A).

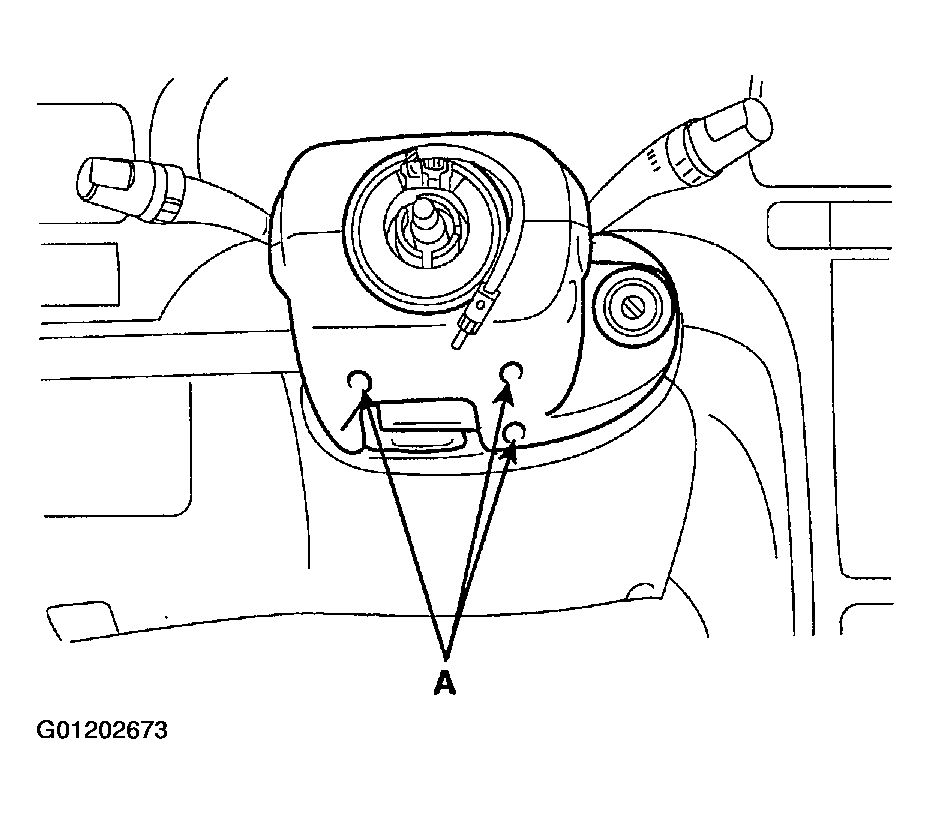

Fig 5: Identifying Column Shroud Screws
Courtesy of HYUNDAI MOTOR CO.
Remove the 3 screws holding the multifunction switch, then disconnect the wire connector.
Remove the multi-function switch assembly.

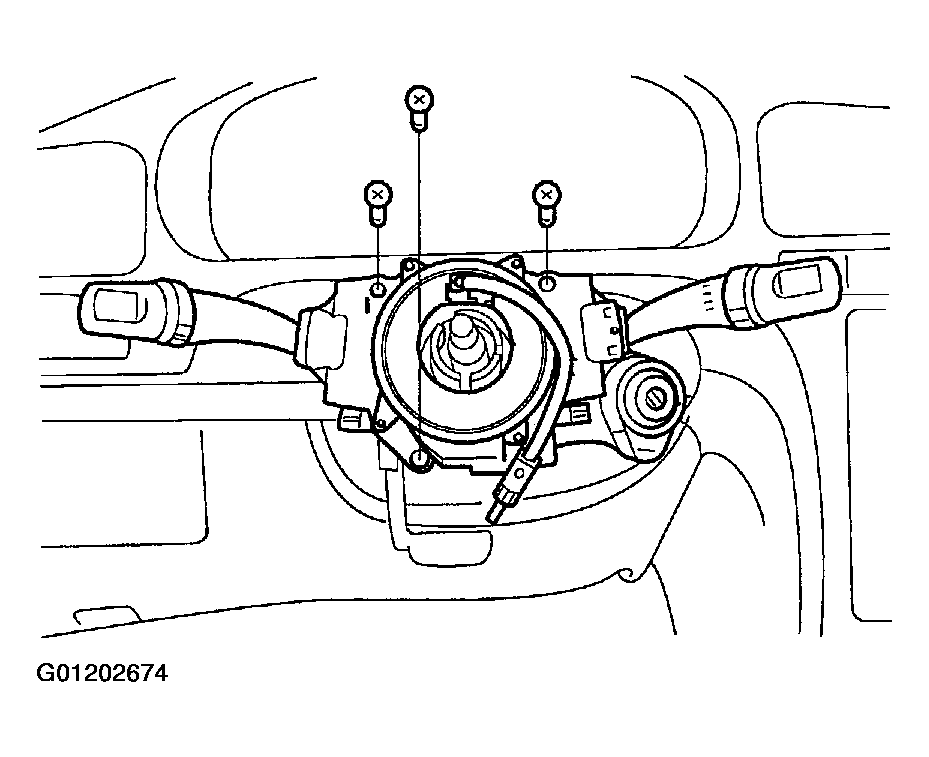

Fig 6: Identifying Multifunction Switch Screws
Courtesy of HYUNDAI MOTOR CO.
Remove the 5 bolts connecting the steering column shaft (A) and the universal joint (B) as shown in the illustration.

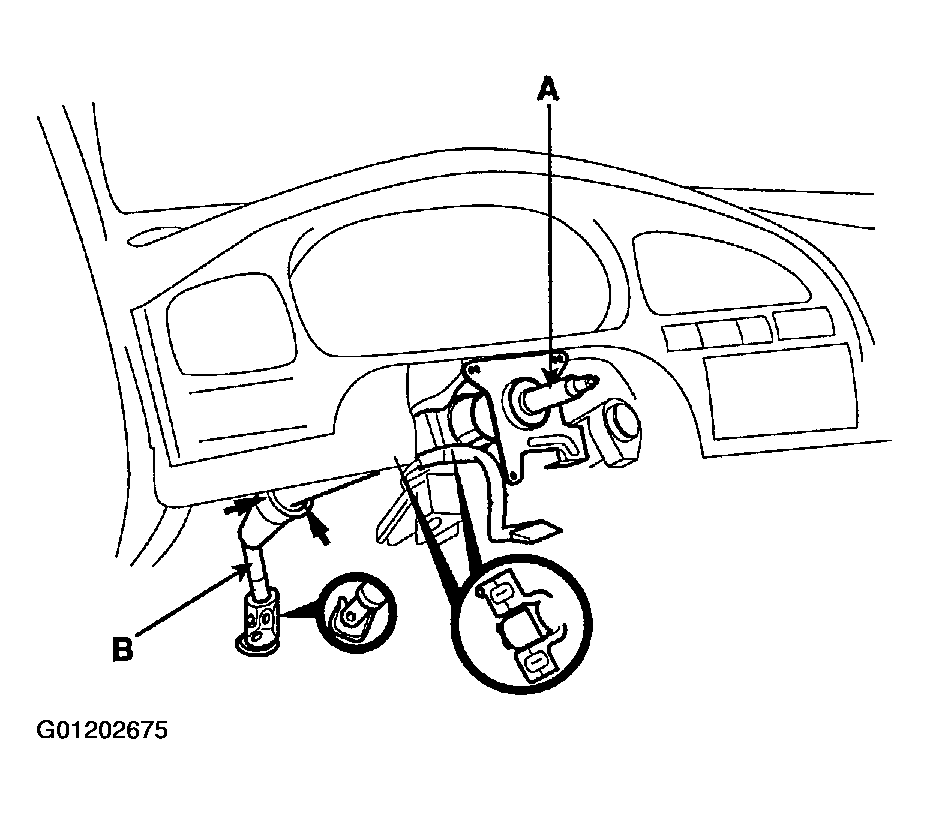

Fig 7: Identifying Steering Column & Universal Joint Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove the key lock assembly from the steering column shaft. See KEY LOCK ASSEMBLY .
Installation is the reverse of removal.
