Inspection Of HECU Terminals

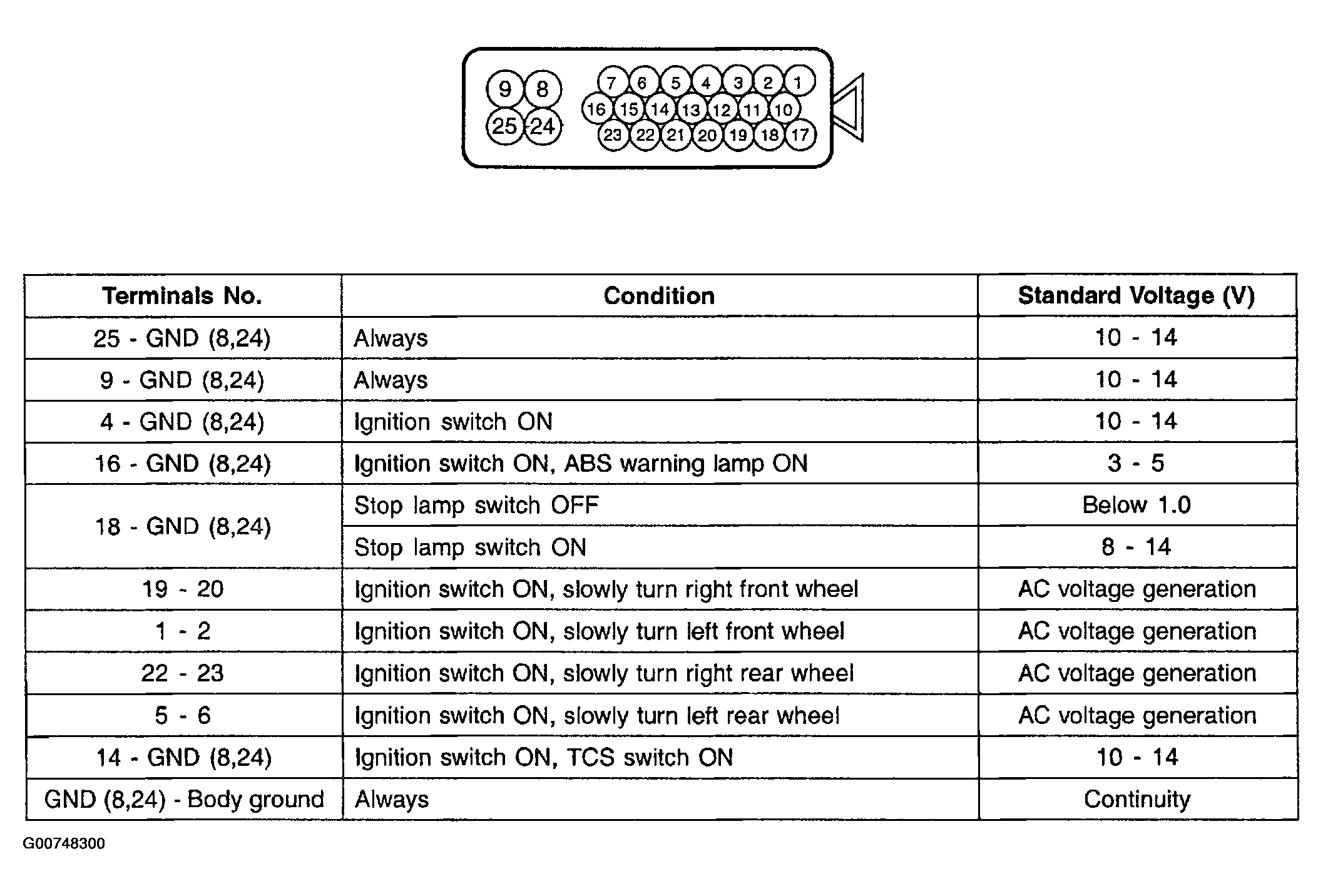

Fig 1: Inspecting HECU Terminals
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
