Anti-Lock Braking System Wheel Speed Sensor: Components

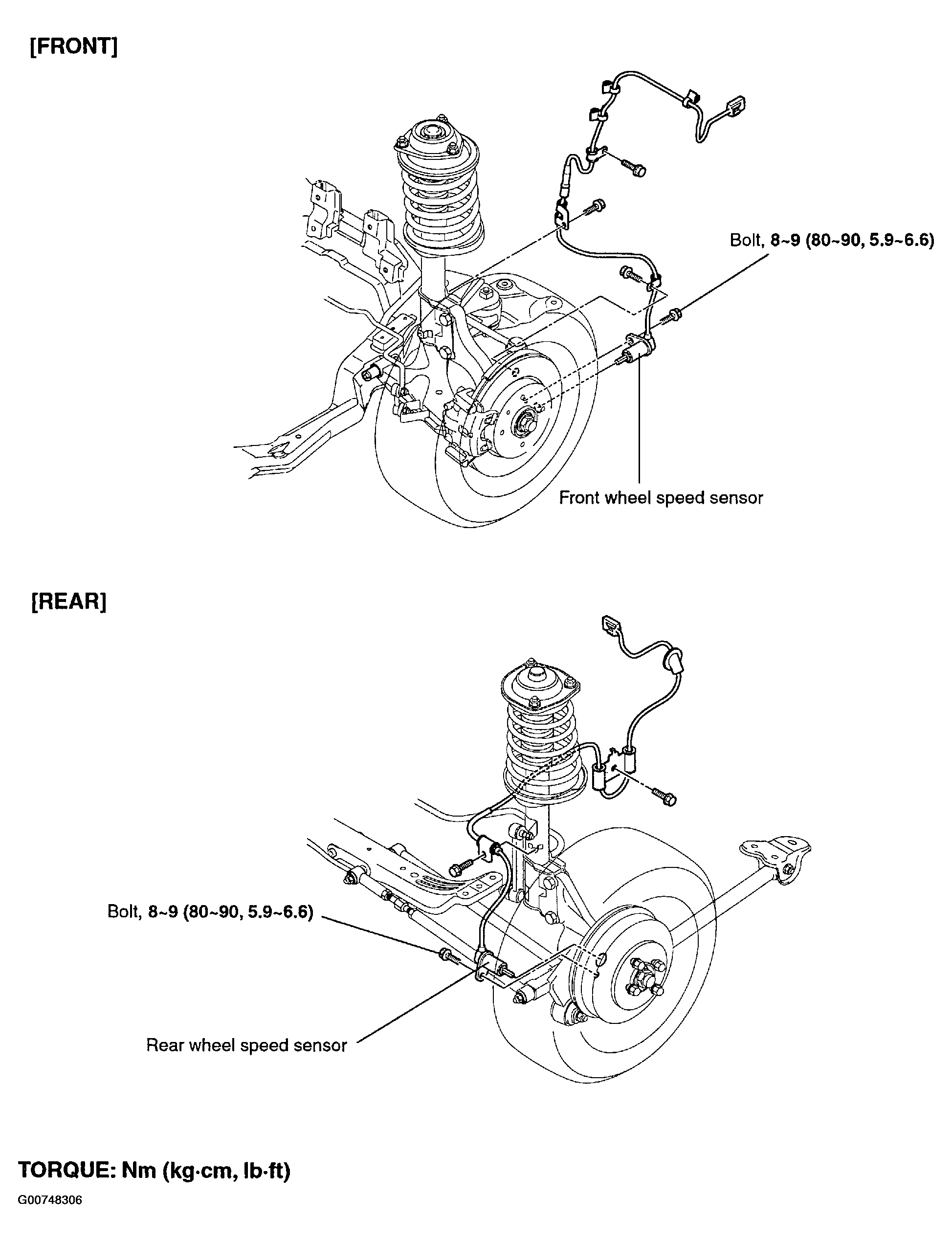

Fig 1: Locating Wheel Speed Sensors & Components
G00748306Courtesy of HYUNDAI MOTOR CO.
