Hi-Scan (Pro) Check

  1. Turn the ignition switch OFF.
  2. Connect the Hi-scan (pro) to the 16P data link connector located behind the driver's side kick panel.

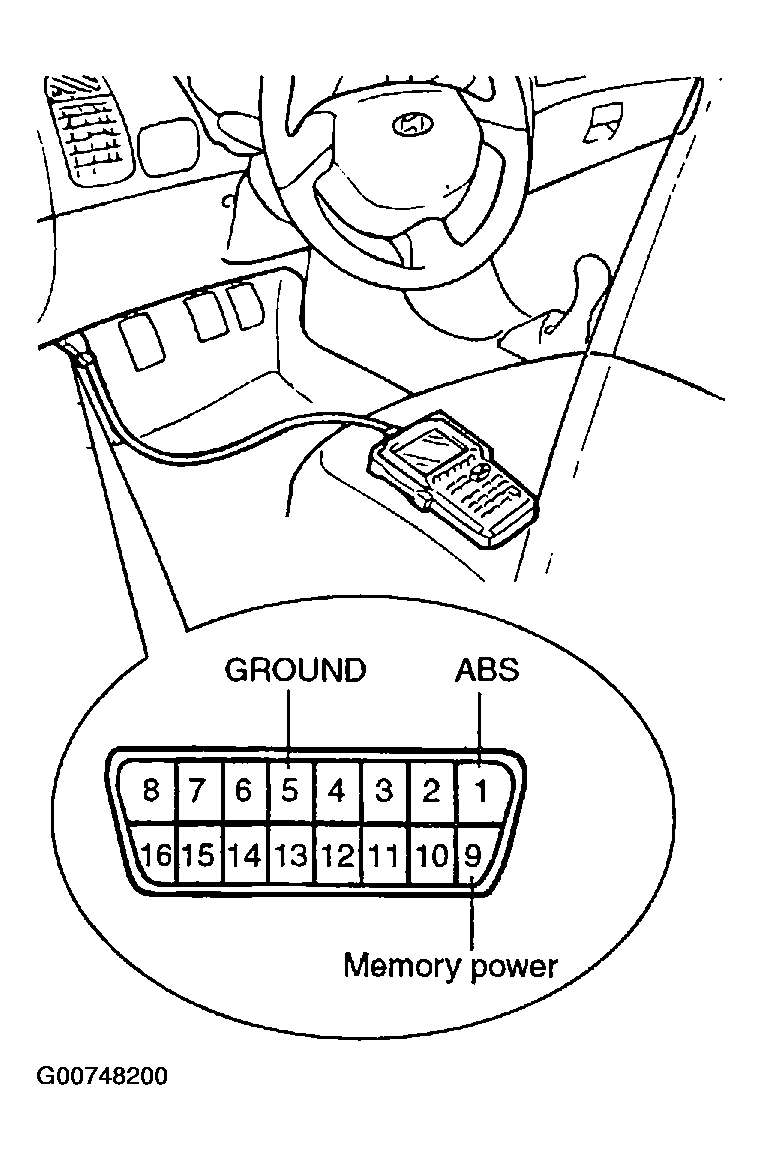

    Fig 1: Connecting Hi-Scan (Pro) To 16P Data Link Connector Located Behind Driver's Side Kick Panel
    G00748200Courtesy of HYUNDAI MOTOR CO.
  3. Turn the ignition switch ON.
  4. Check for diagnostic trouble codes using the Hi-scan (pro).
  5. After completion of the repair or correction of the problem, erase the stored fault codes using the clear key on the Hi-scan (pro).
  6. Disconnect the Hi-scan (pro) from the 16P data link connector.
