Output Shaft Speed Sensor Replacement: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Removal of the battery and air cleaner. See TRANSAXLE RANGE SWITCH REPLACEMENT  .
  2. Remove the output shaft speed sensor (A).

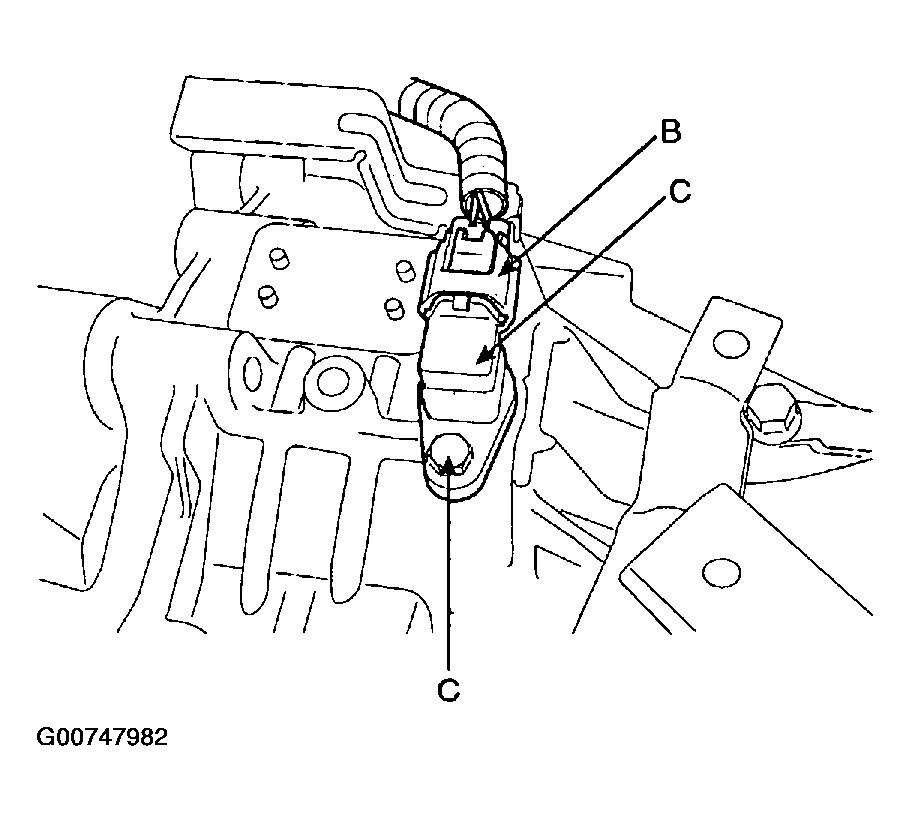

    Fig 1: Removing Output Shaft Speed Sensor
    G00747982Courtesy of HYUNDAI MOTOR CO.
    1. Disconnect the output shaft speed sensor connector (B).
    2. Remove the bolt (C).
    3. Inspect the output shaft speed sensor bore.
