Manual Transaxle System: General: Specifications

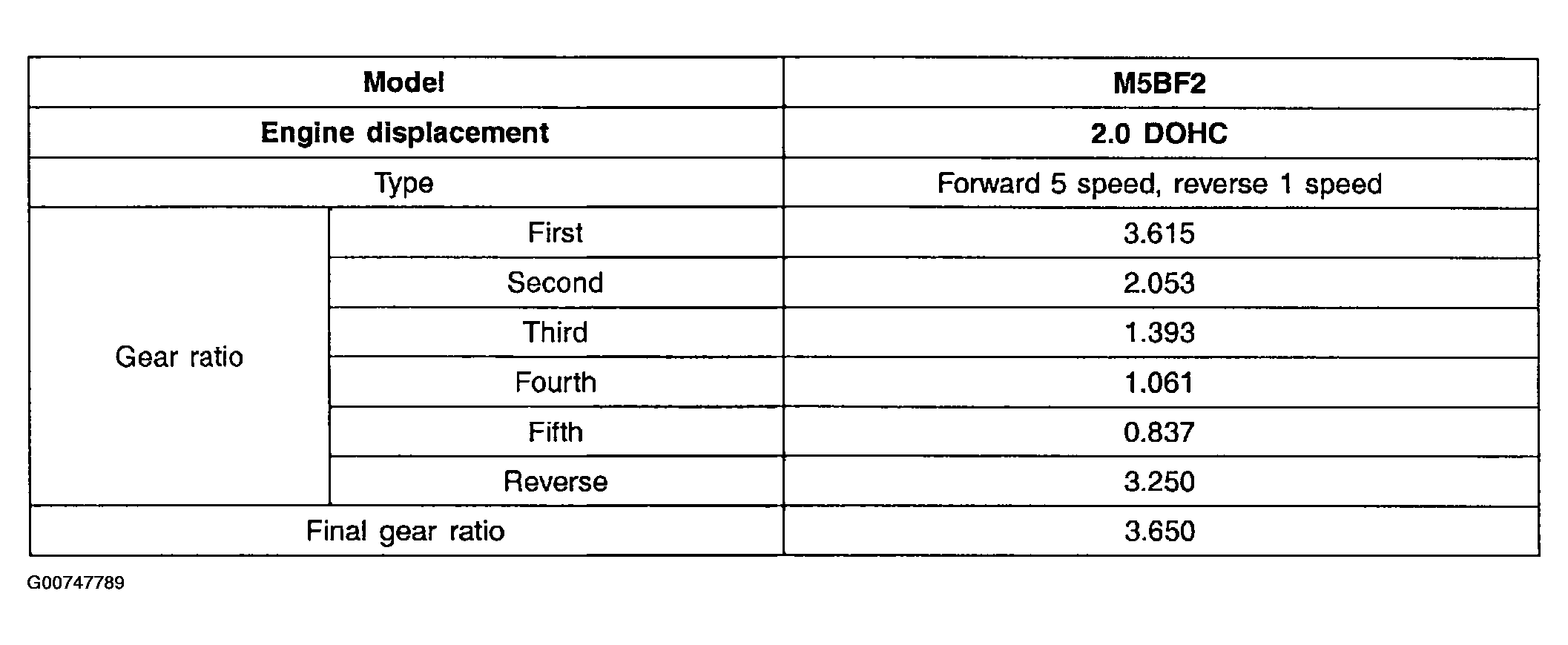

Fig 1: General Manual Transaxle Specification Table

G00747789

Courtesy of HYUNDAI MOTOR CO.
