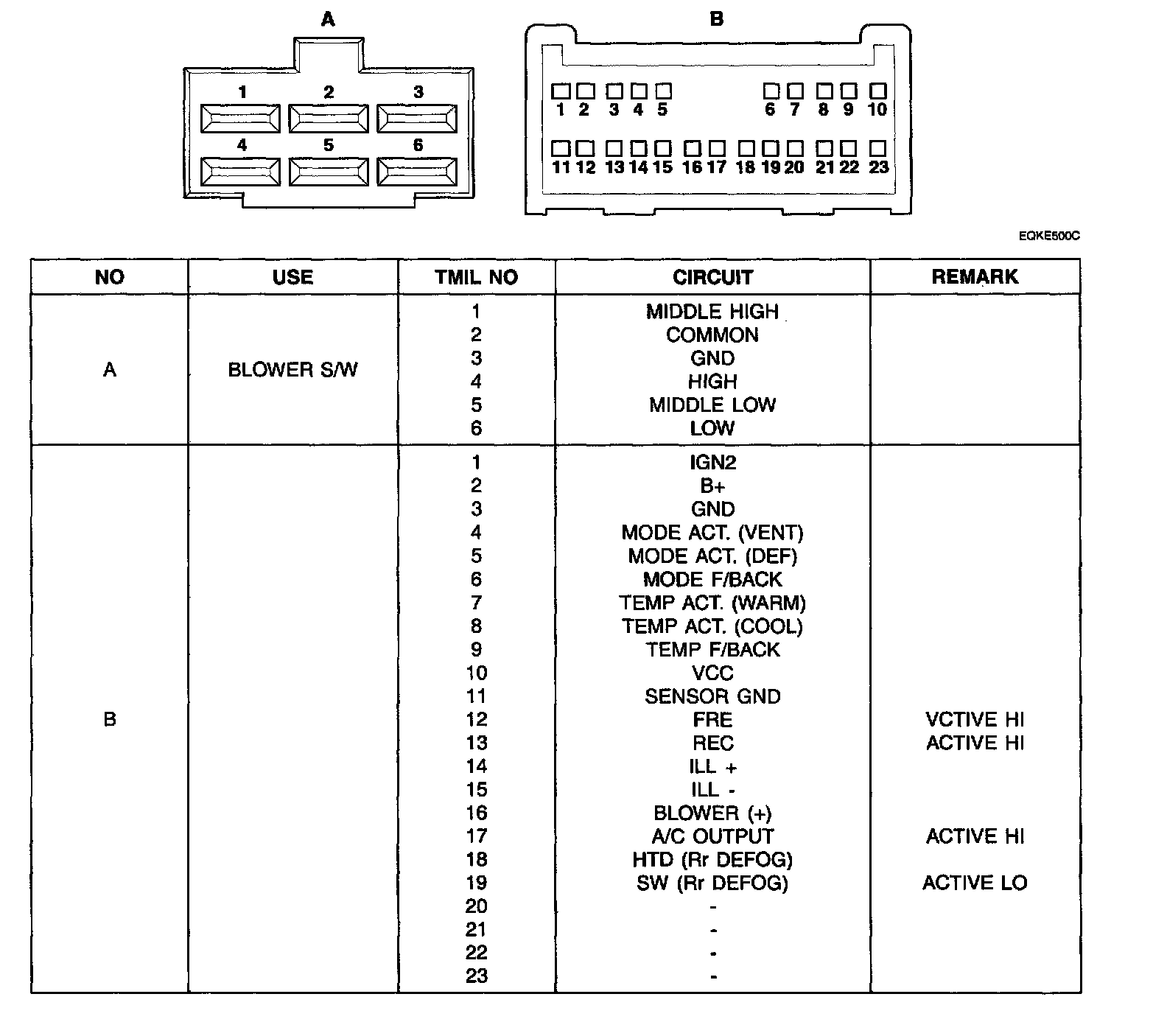

Control Assembly, HVAC
>>
Manual
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Manual
Control Configuration:
