Passenger Compartment Fuse/Relay Box

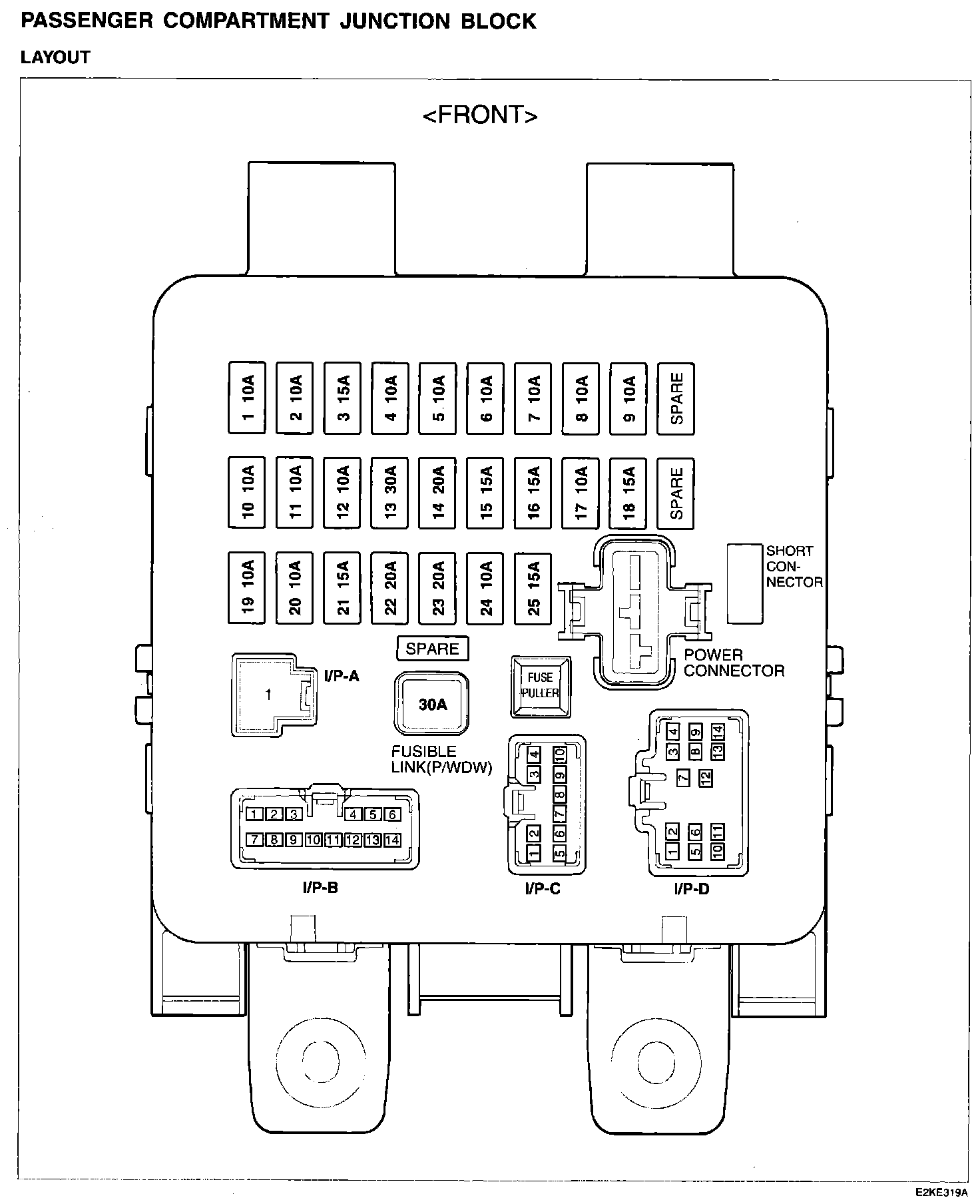

Passenger Compartment Junction Block Front View:



Passenger Compartment Junction Block Rear View:



Passenger Compartment Relay Box:
