Power Window Sub Switch

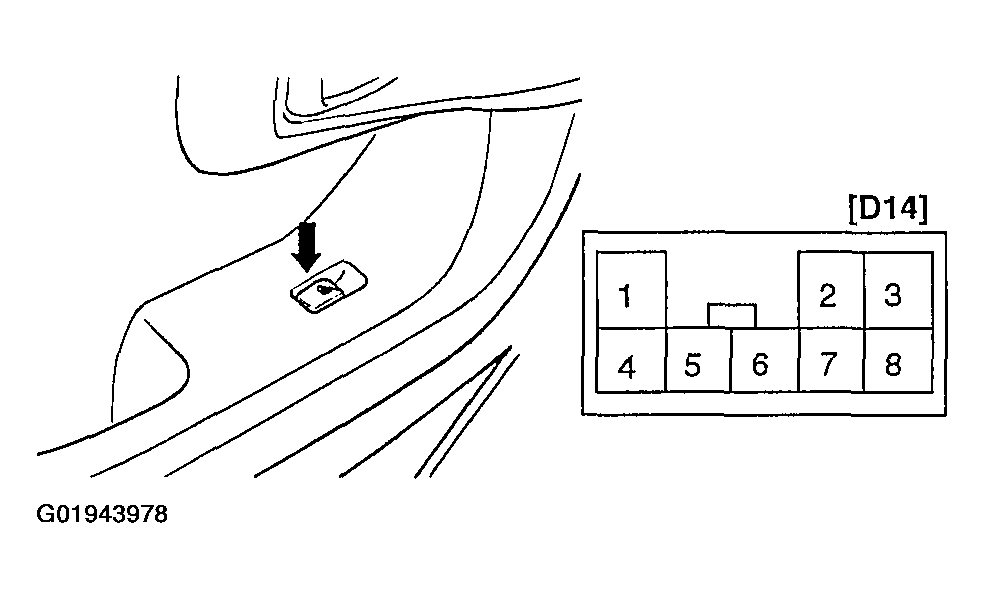

Fig 1: Identifying Power Window Sub Switch Connector Terminals
G01943978Courtesy of HYUNDAI MOTOR CO.

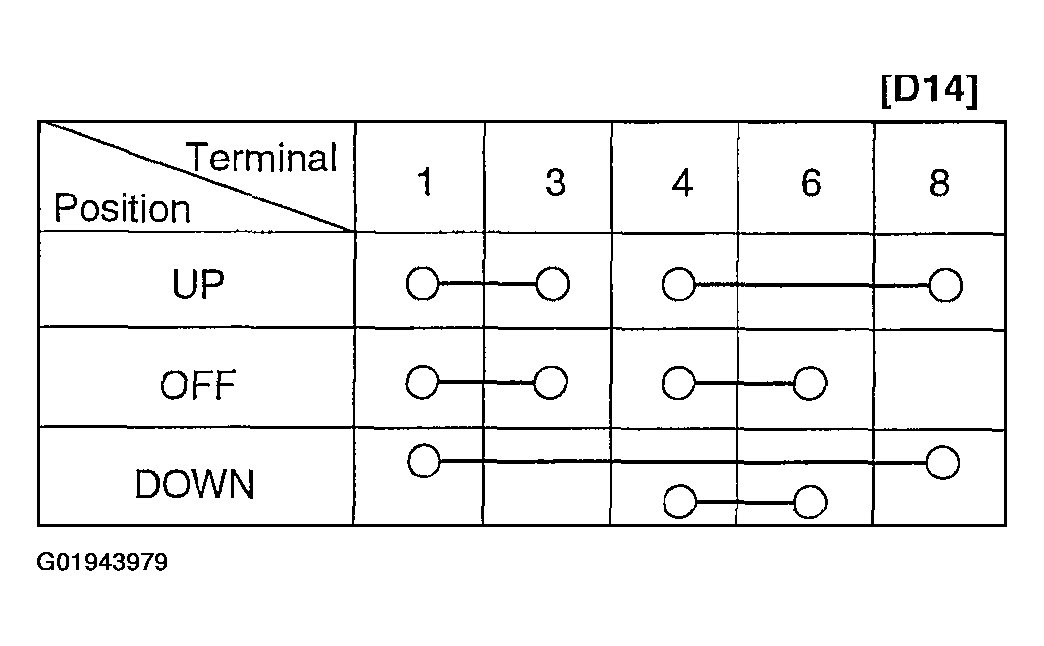

Fig 2: Power Window Sub Switch Continuity Table
G01943979Courtesy of HYUNDAI MOTOR CO.
