Front Hub/Knuckle: Components

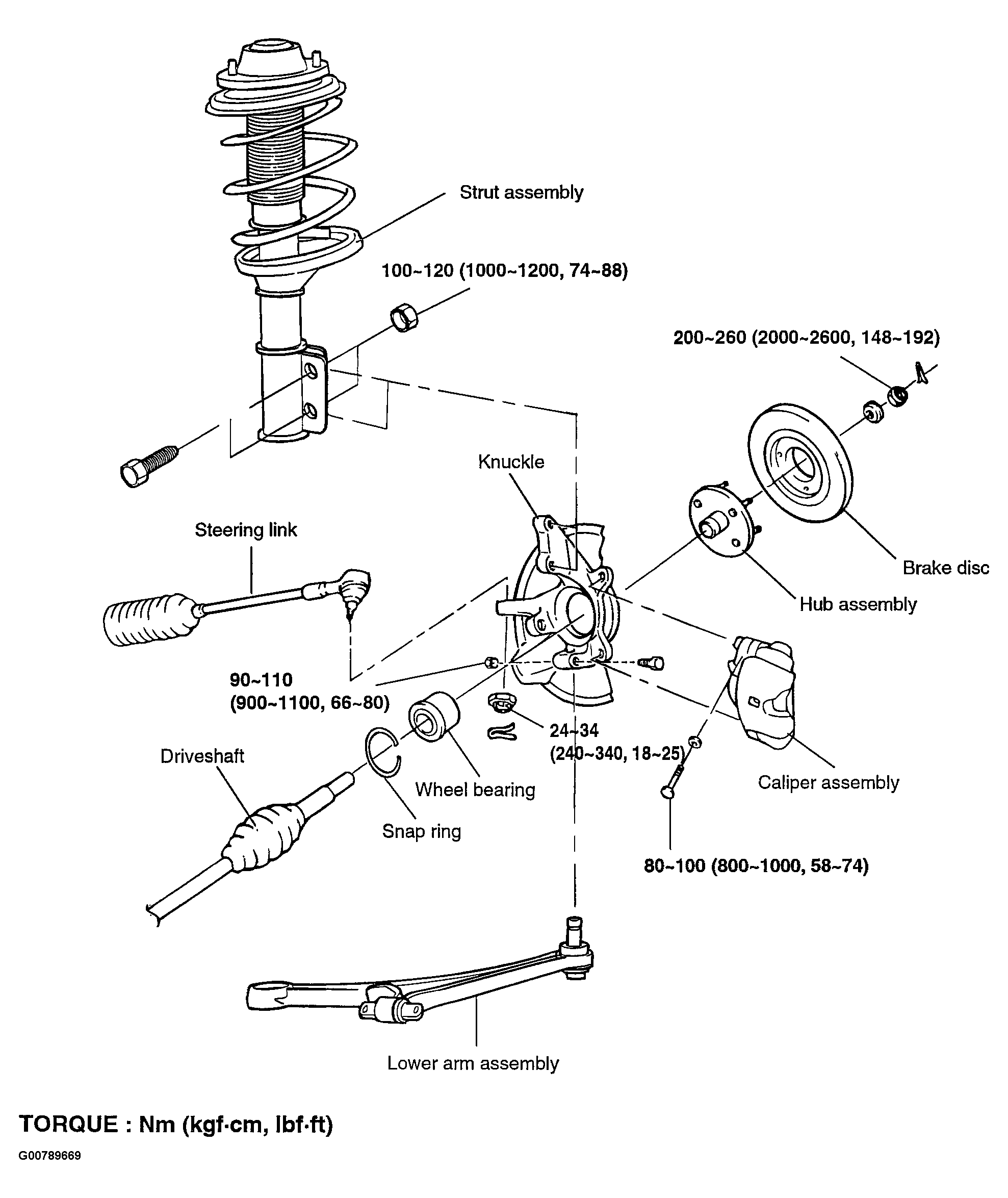

Fig 1: Front Hub/Knuckle Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
