Front Strut Assembly: Components

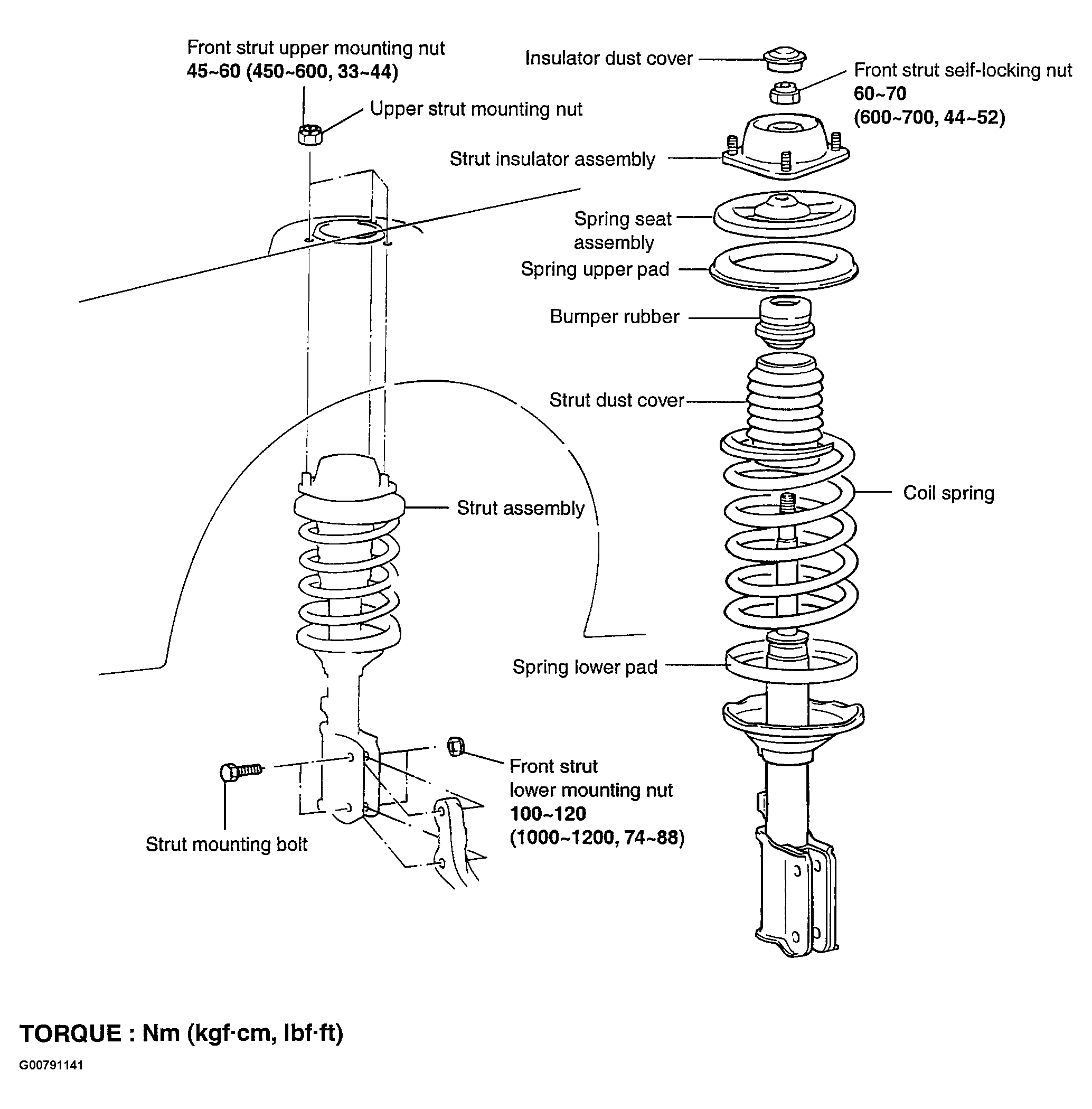

Fig 1: Front Strut Assembly Components

G00791141

Courtesy of HYUNDAI MOTOR CO.
