Inspection Procedure 7
WARNING:
This page is about a different variant/trim than selected.

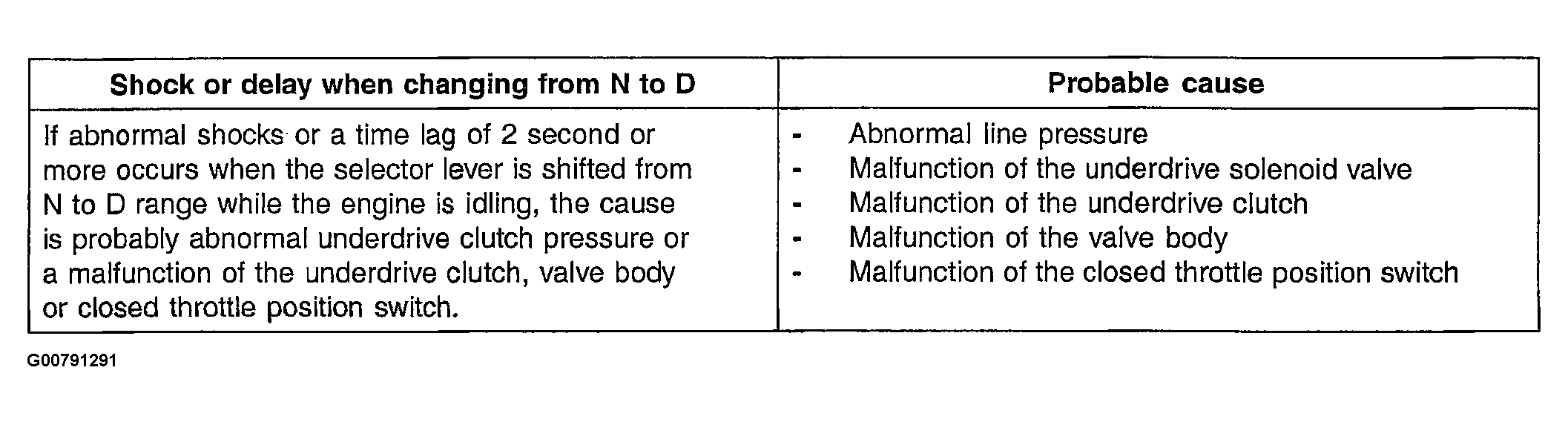

Fig 1: Inspection Procedure 7 Definitions & Probable Causes
Courtesy of HYUNDAI MOTOR CO.

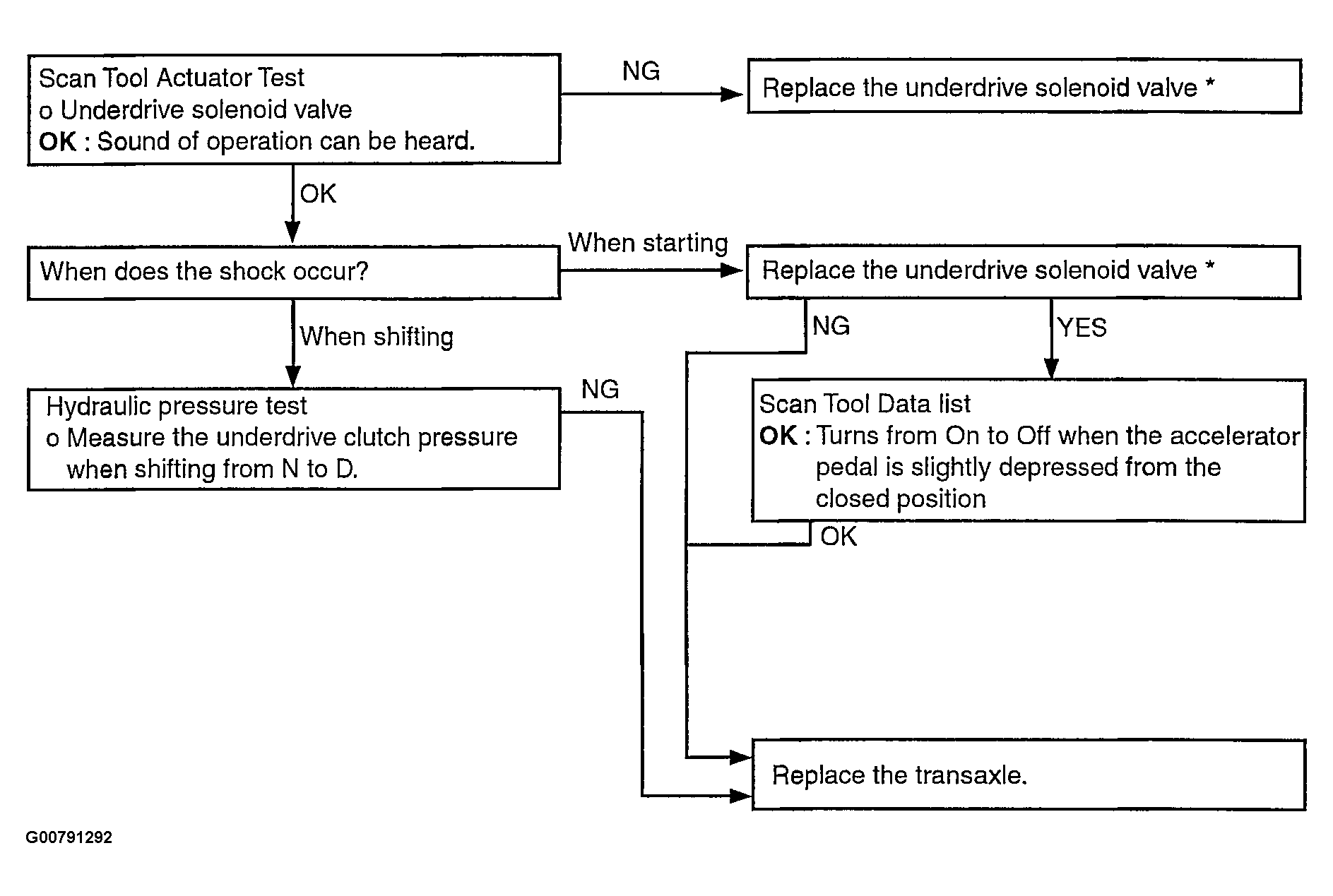

Fig 2: Inspection Procedure 7 Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
