Control Harness

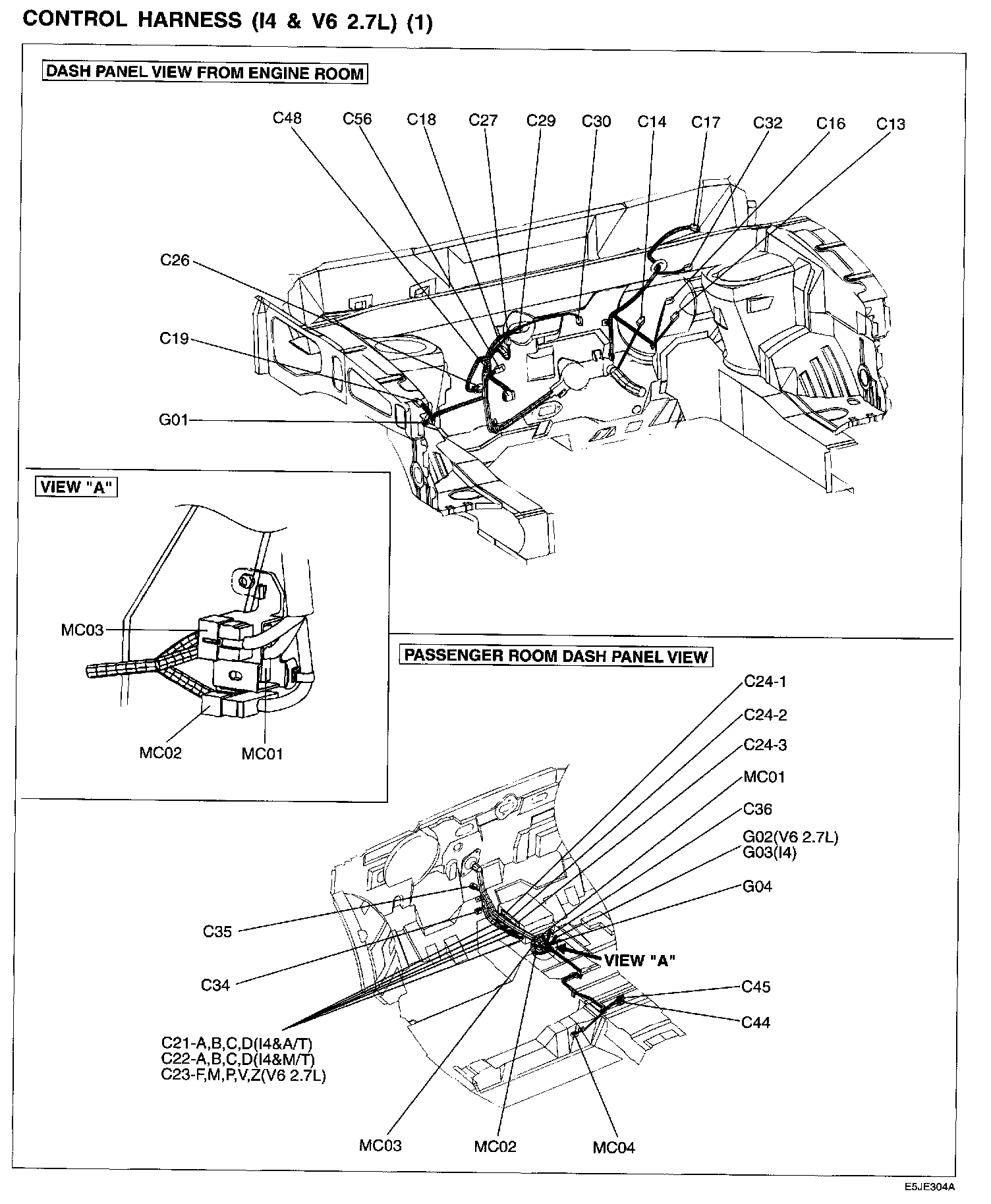

Control Harness View (l4 & V6 2.7L) (1):

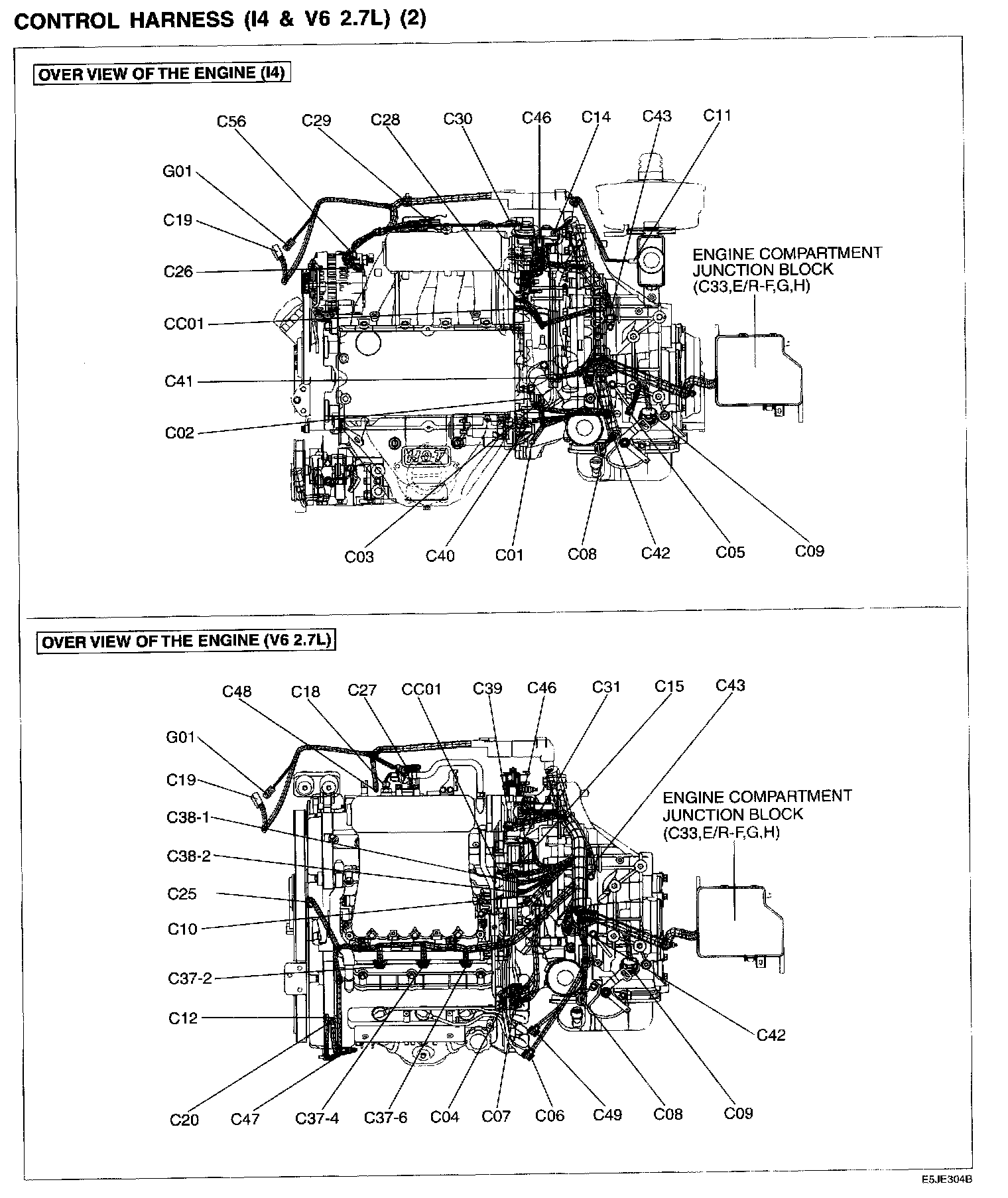

Control Harness View (l4 & V6 2.7L) (2):

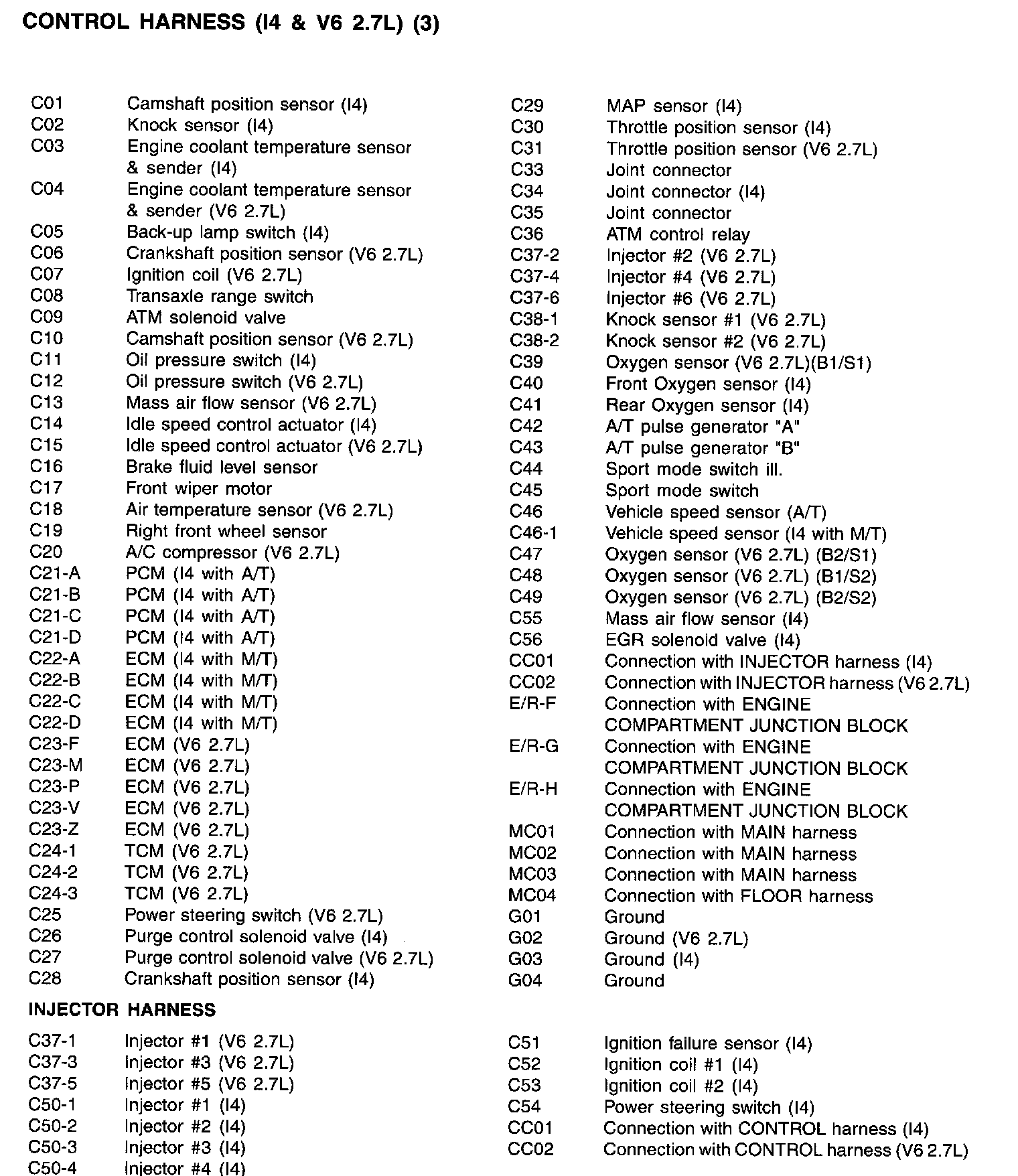

Control Harness (l4 & V6 2.7L) Index (3):
