Power Window Motor: Inspection

Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operations abnormal, replace the motor.

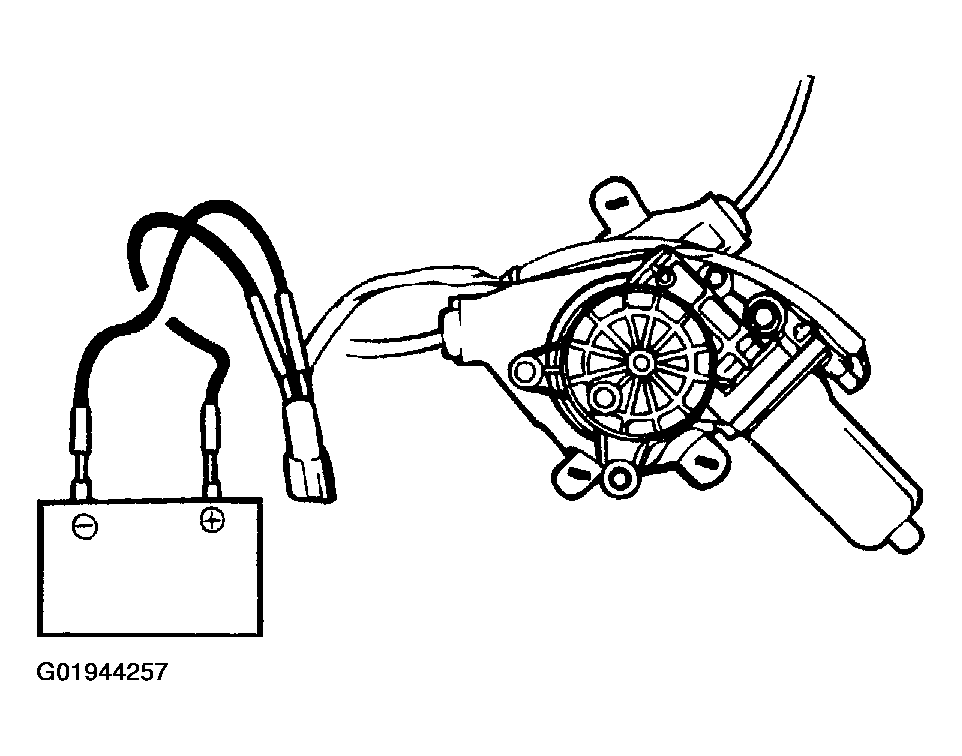

Fig 1: Checking Window Motor
G01944257Courtesy of HYUNDAI MOTOR CO.
