ETACS Module Input Signal Test: Notes

  1. Disconnect the wire connectors (B) from the ETACS module (A).
  2. Inspect the connectors (B) on wire harness side as shown in the below.

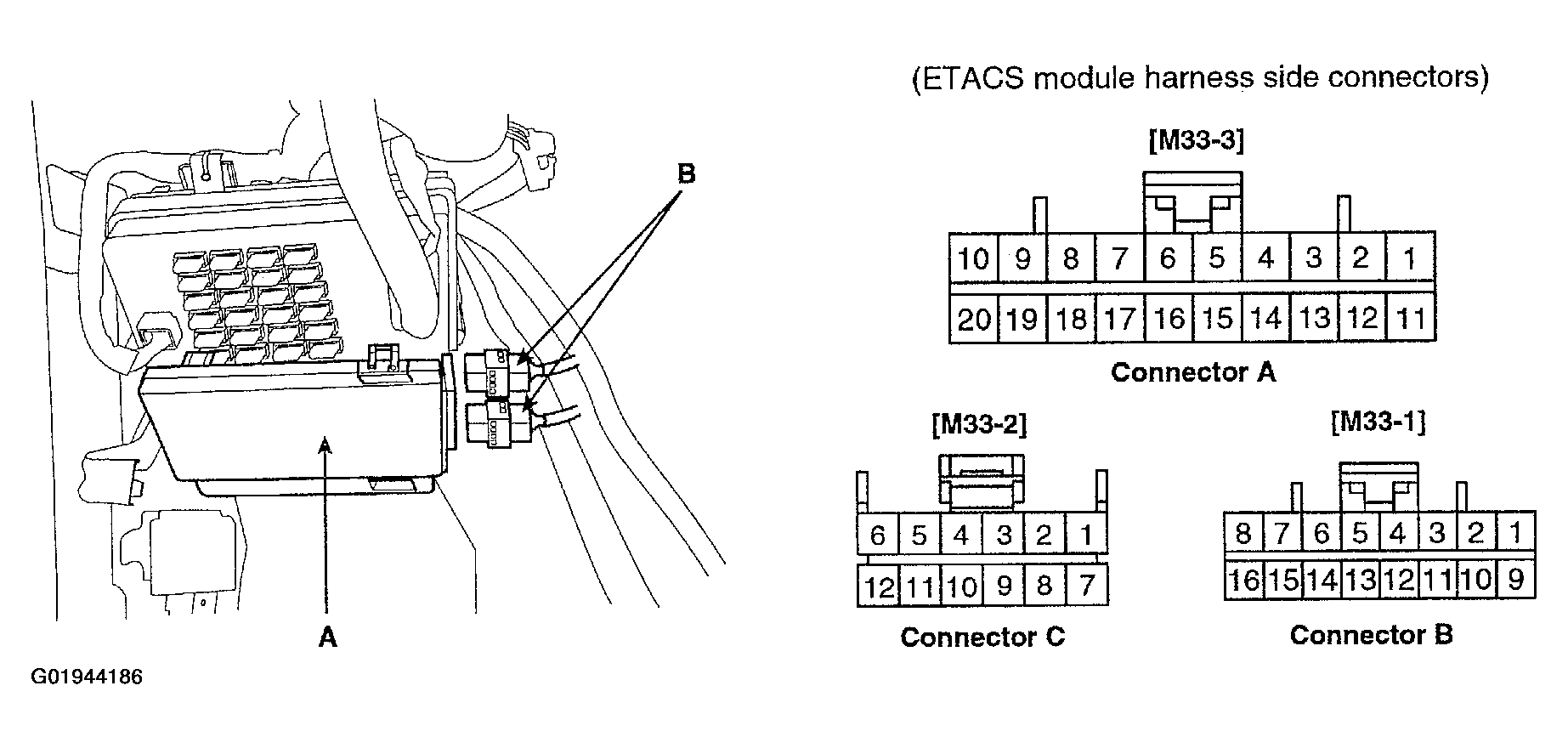

    Fig 1: Identifying ETACS Module Connector Terminals (1 Of 2)
    G01944186Courtesy of HYUNDAI MOTOR CO.

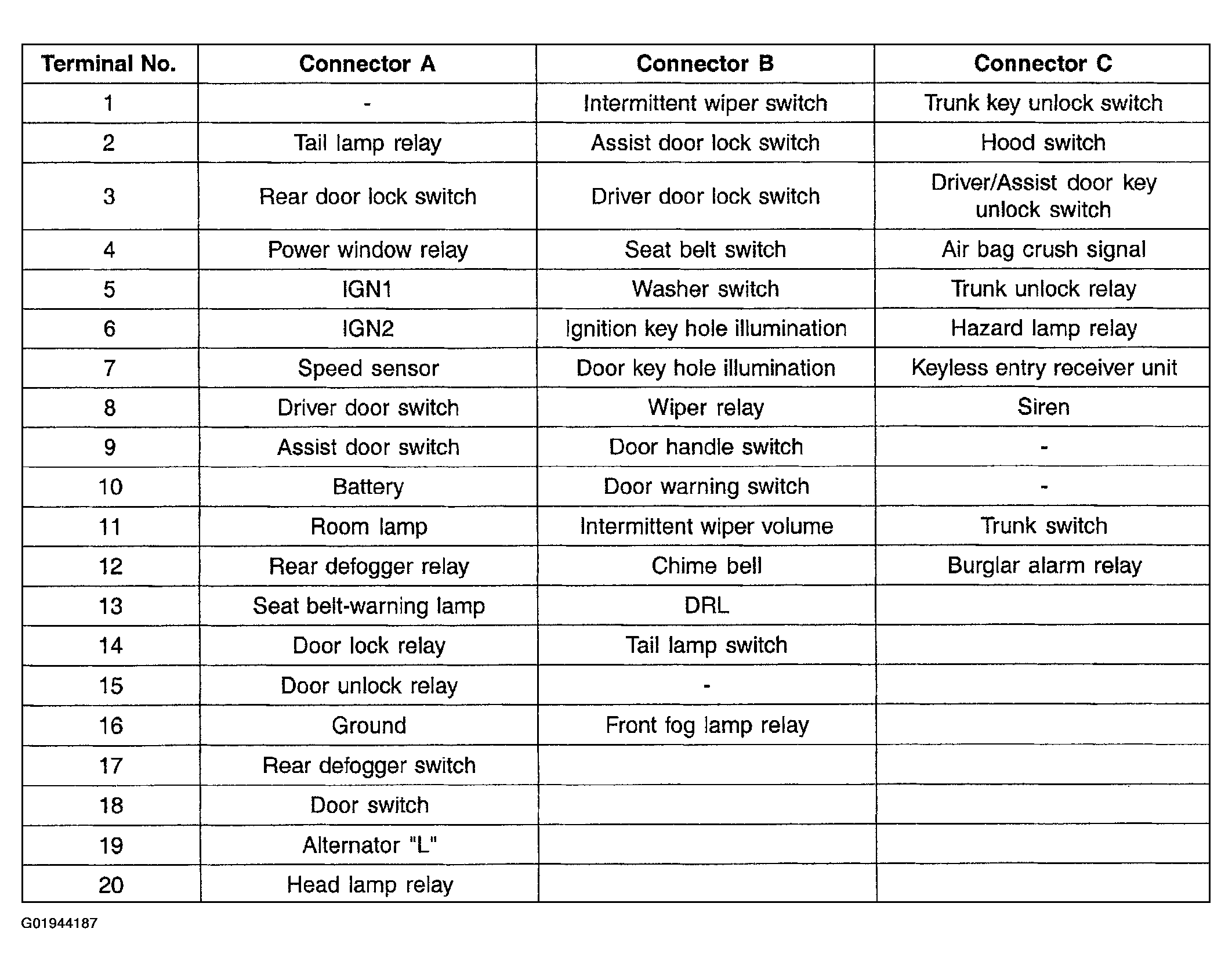

    Fig 2: Identifying ETACS Module Connector Terminals (2 Of 2)
    G01944187Courtesy of HYUNDAI MOTOR CO.
