HECU Terminal Inspection

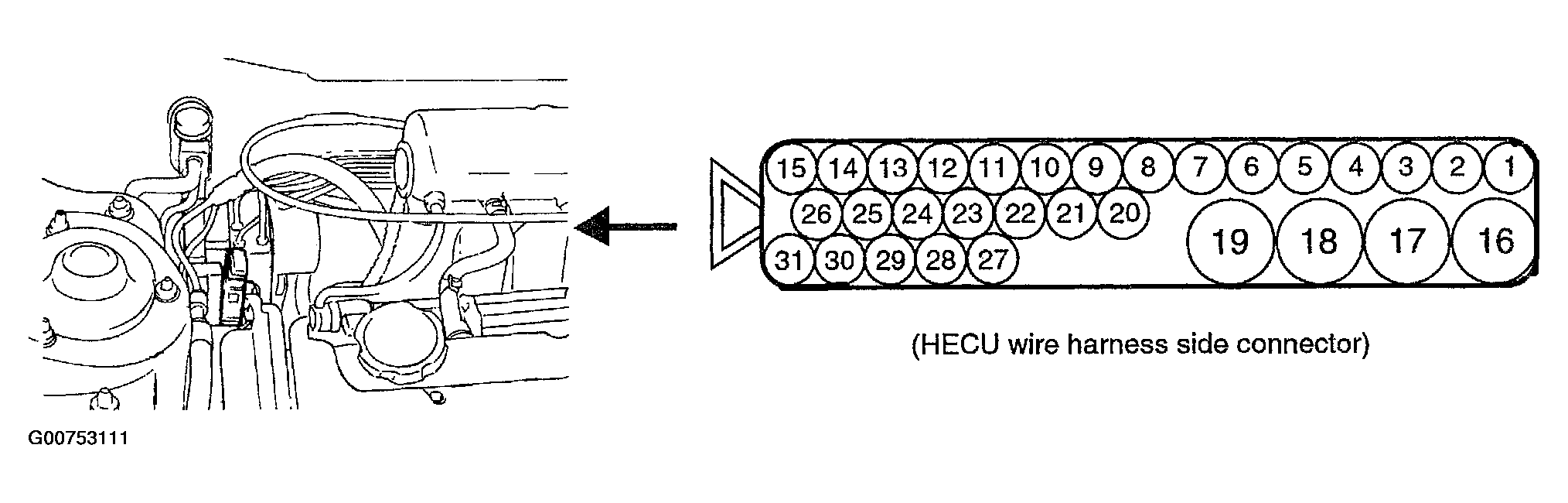

Fig 1: View Of HECU Location & Connector Terminals
G00753111Courtesy of HYUNDAI MOTOR CO.

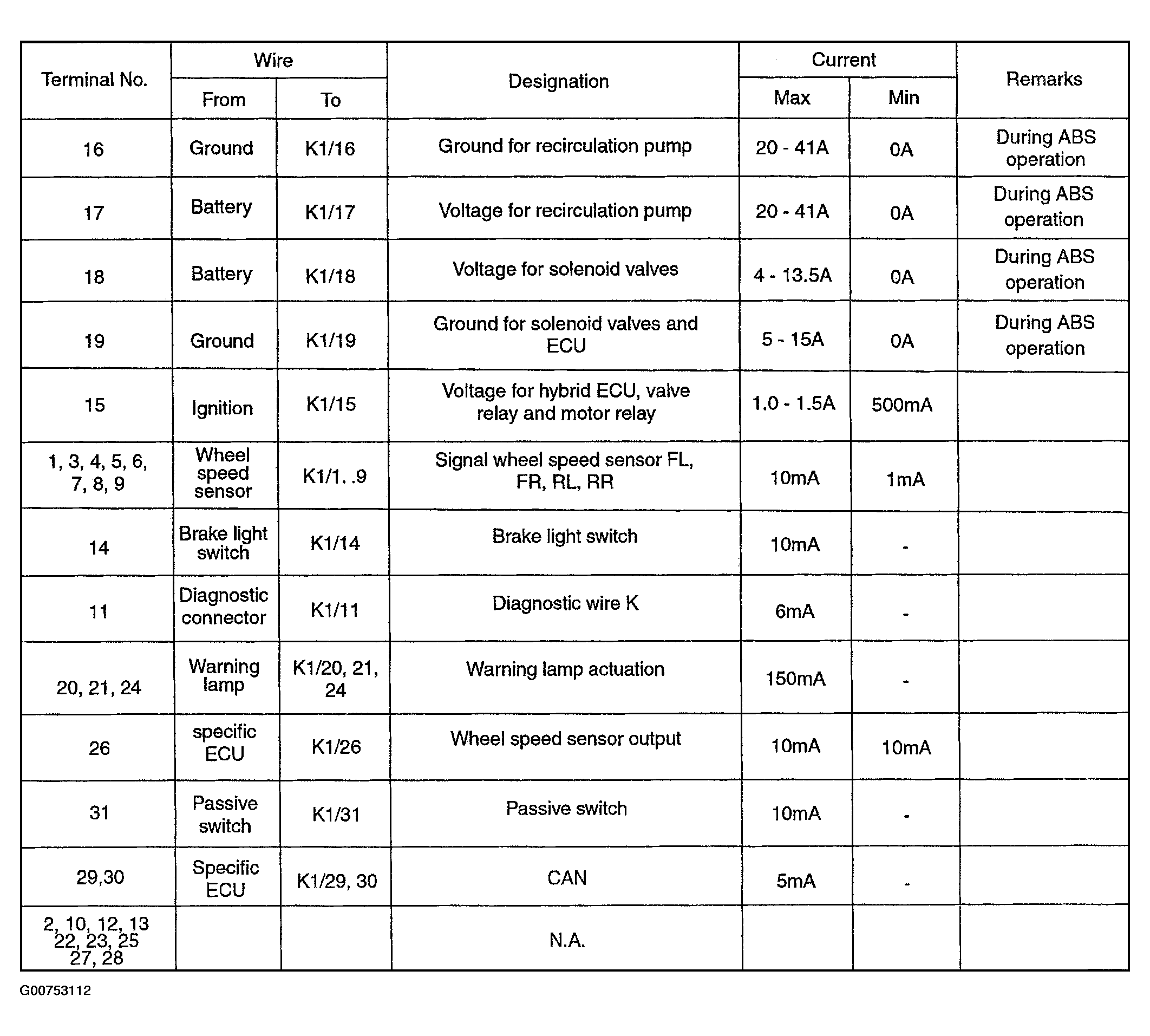

Fig 2: Identifying HECU Connector Terminals
G00753112Courtesy of HYUNDAI MOTOR CO.
