Fuel System - 2.7L -- Sonata
>>
General
>>
Troubleshooting
>>
Troubleshooting Guide Chart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Troubleshooting Guide Chart

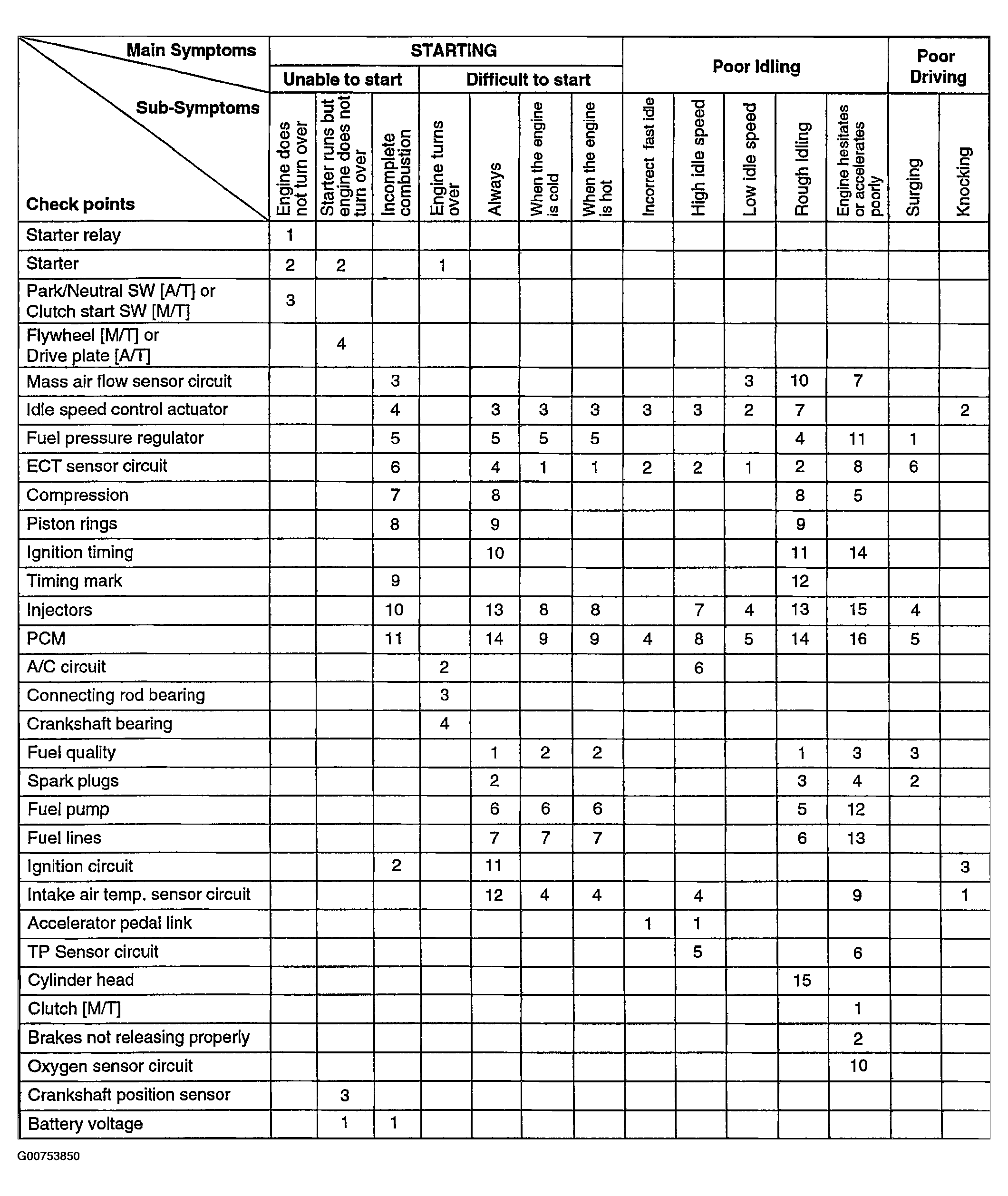

Fig 1: Troubleshooting Guide Chart (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

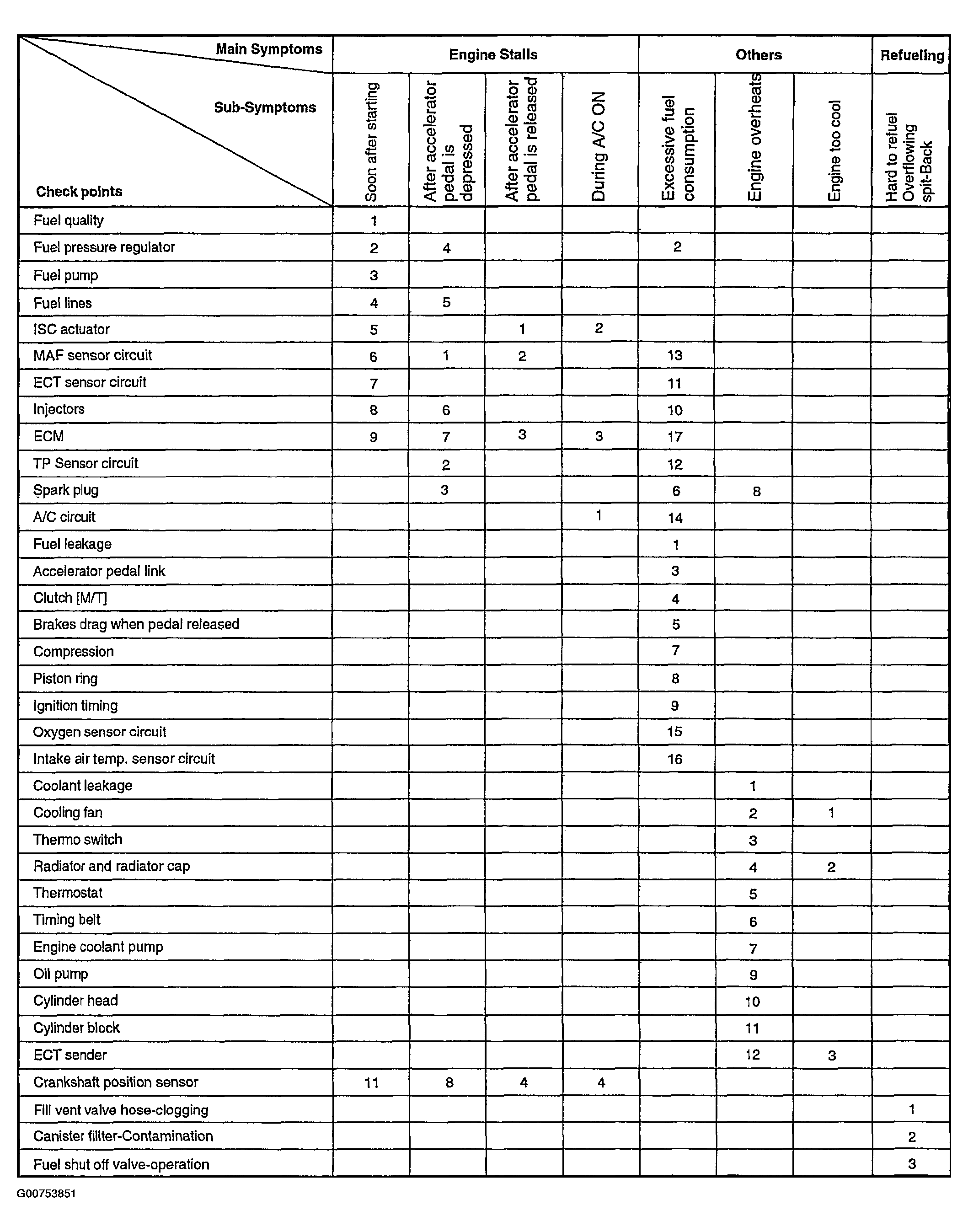

Fig 2: Troubleshooting Guide Chart (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
NOTE:
The number herein means the check order.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
