Wheel Alignment Specifications & Adjustment Procedures
>>
General
>>
Specifications
>>
Service Standard
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Service Standard

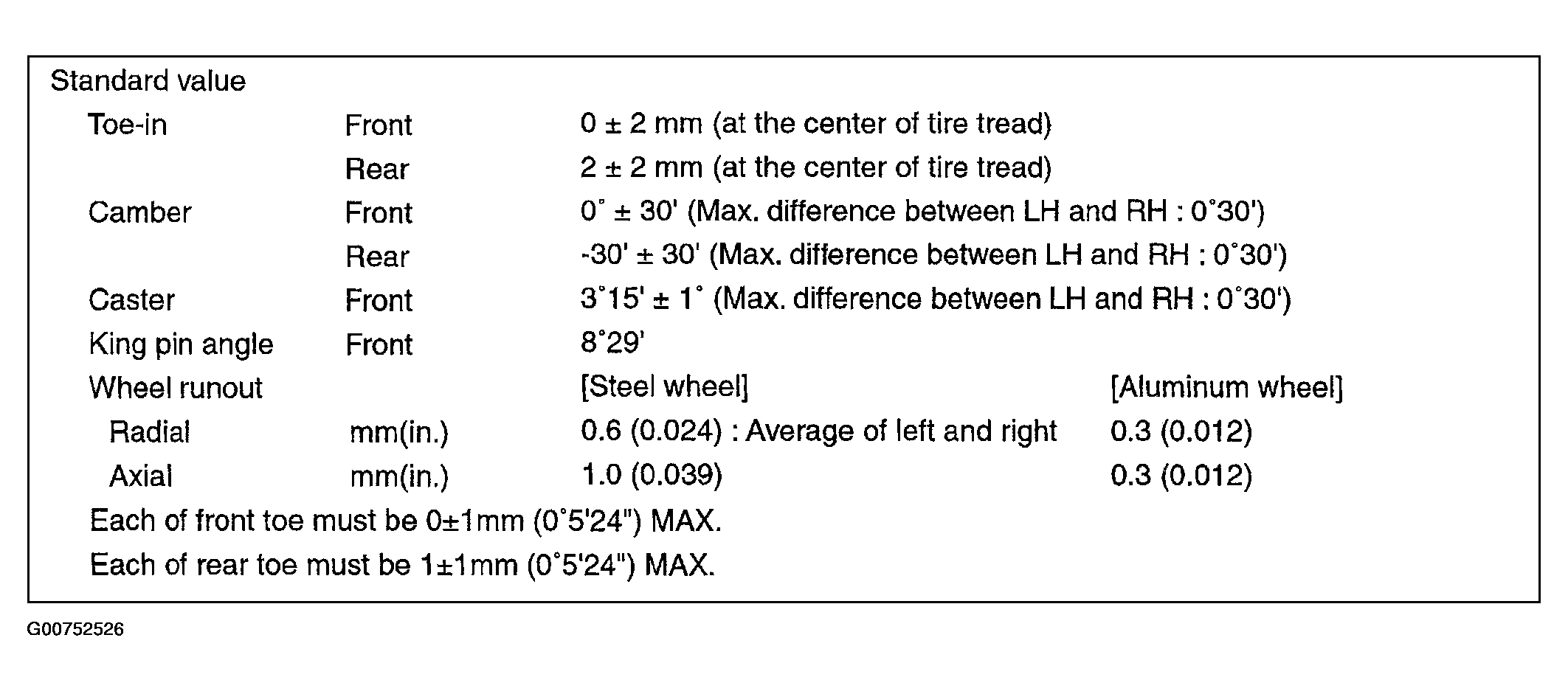

Fig 1: Service Standard Specification
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
