Wheel Alignment Specifications

Use illustration for wheel alignment specifications. See Fig 1.

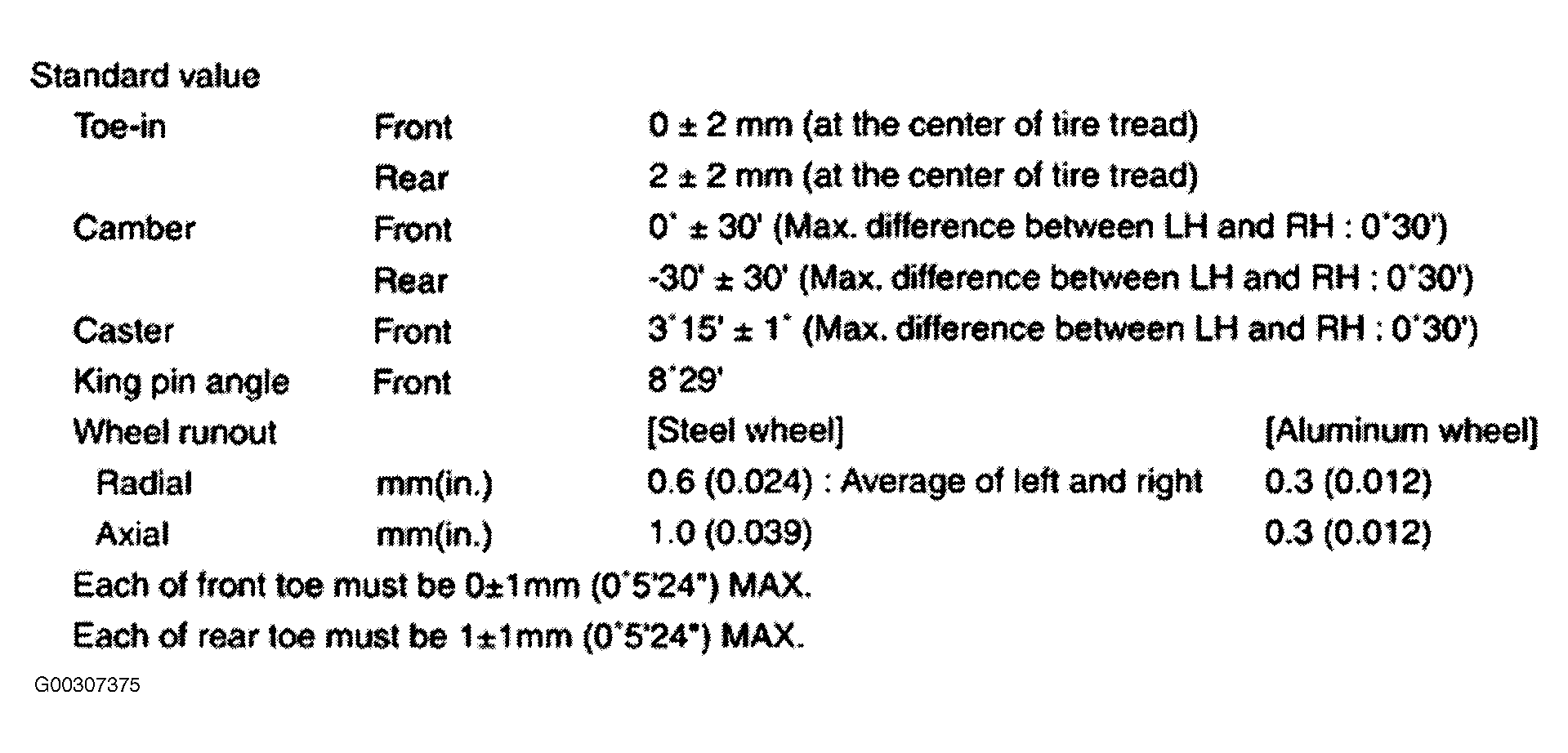

Fig 1: Wheel Alignment Specifications
G00307375Courtesy of HYUNDAI MOTOR CO.
