Connector Locations

C02, C03, C04, C05, C06:

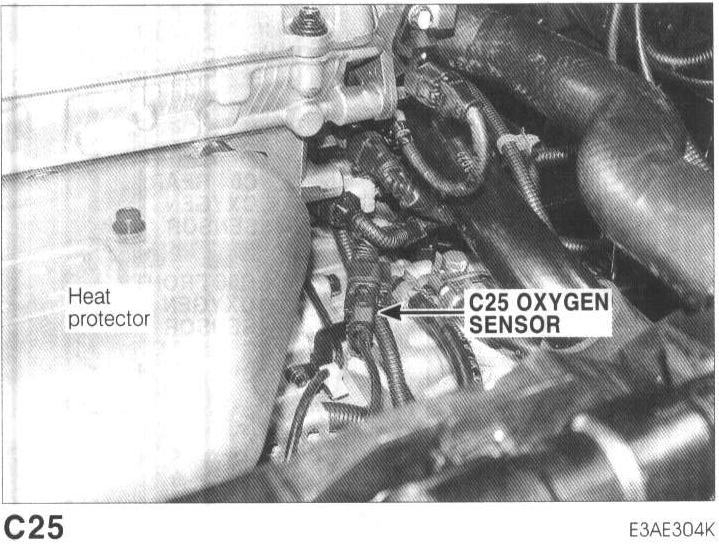

C25:

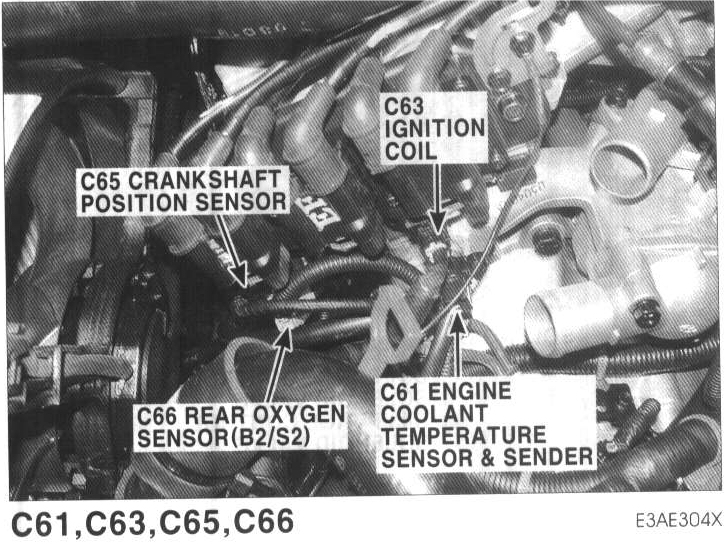

C61, C63, C65, C66:

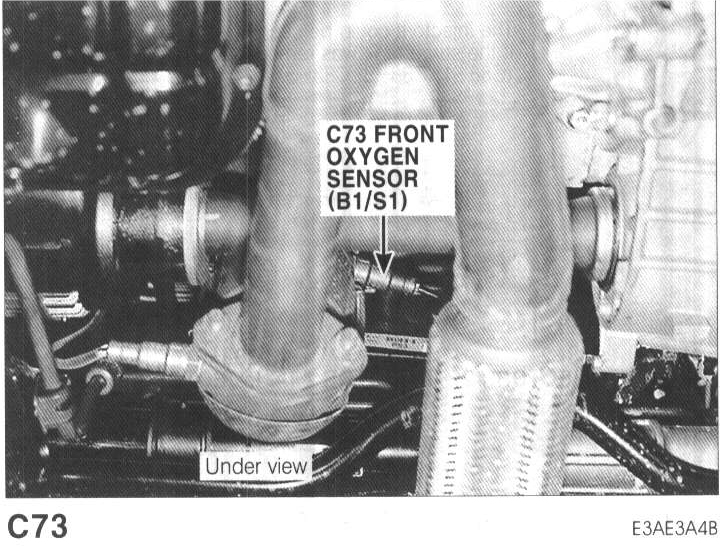

C73:

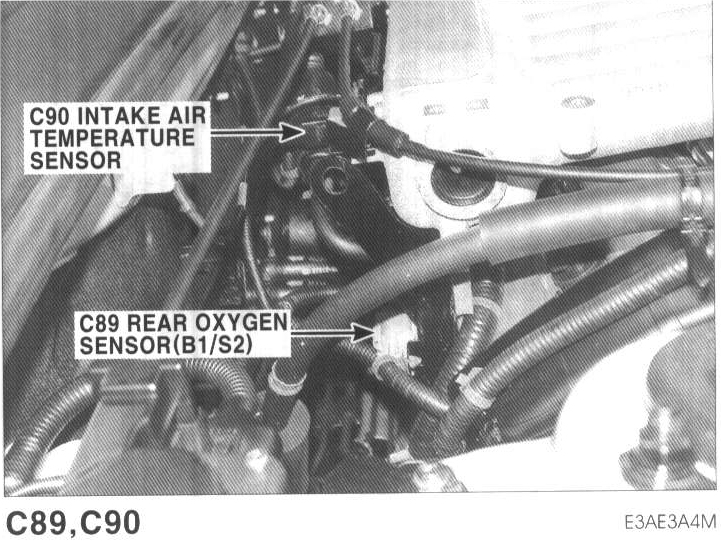

C89, C90:

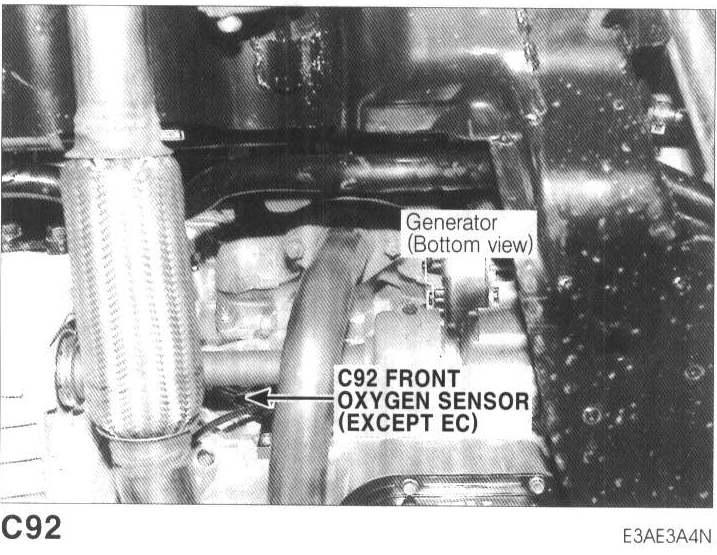

C92:

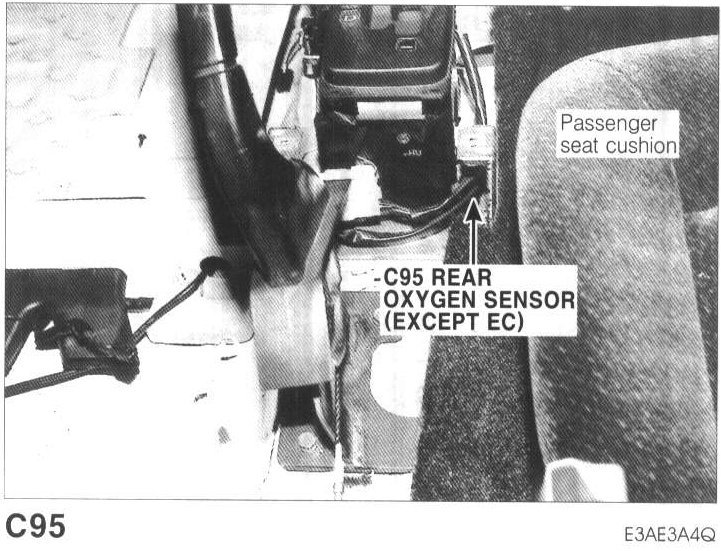

C95:

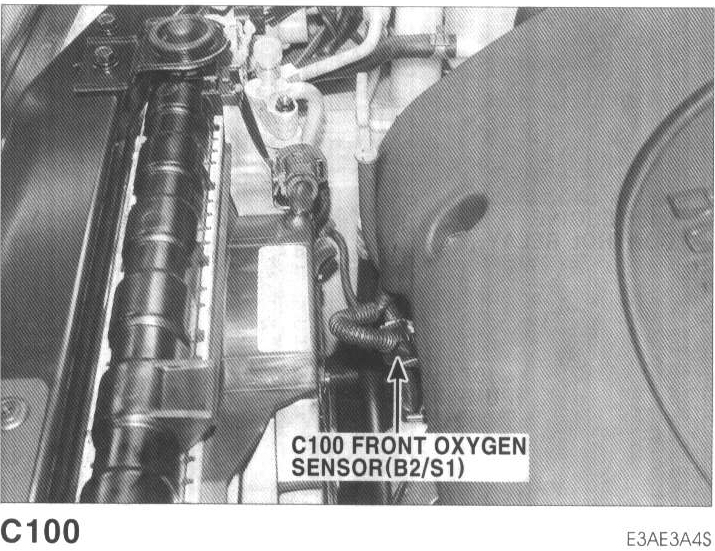

C100:
