Specifications (A/T)

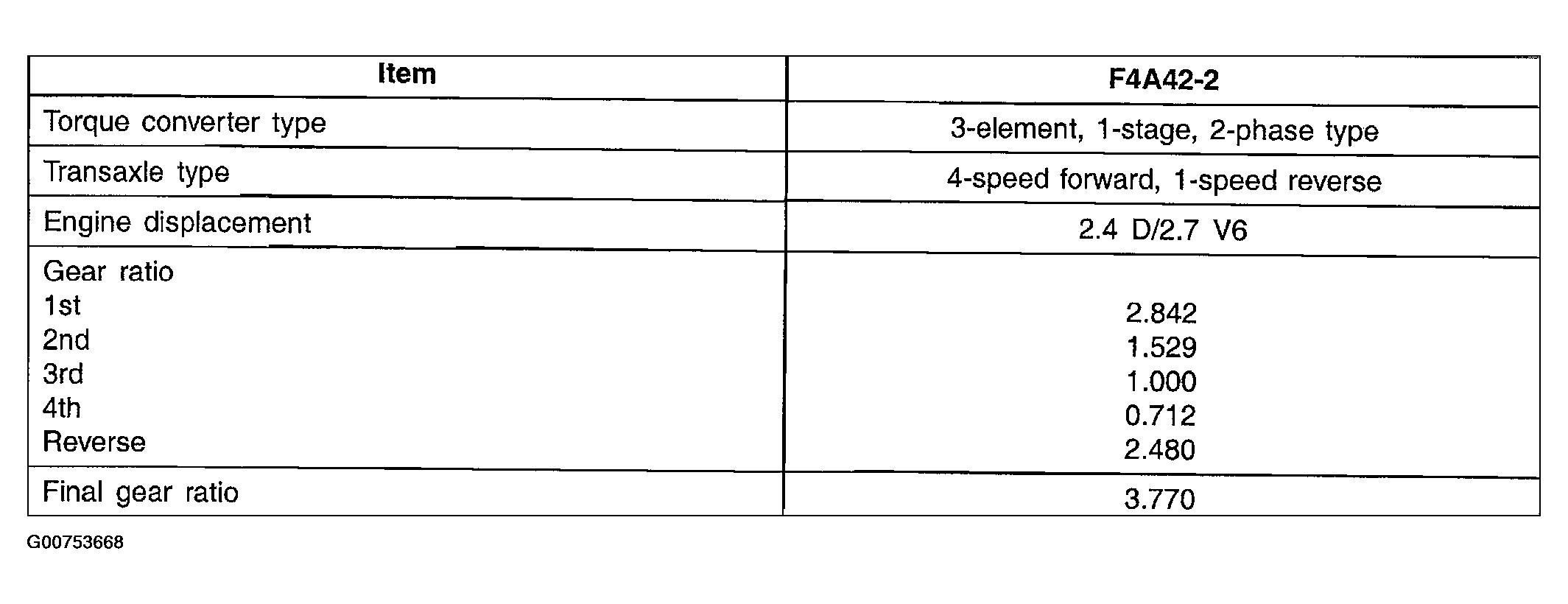

Fig 1: General Automatic Transaxle Specifications
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
