Front Wheel Speed Sensor

  1. Remove the front wheel speed sensor mounting bolt.

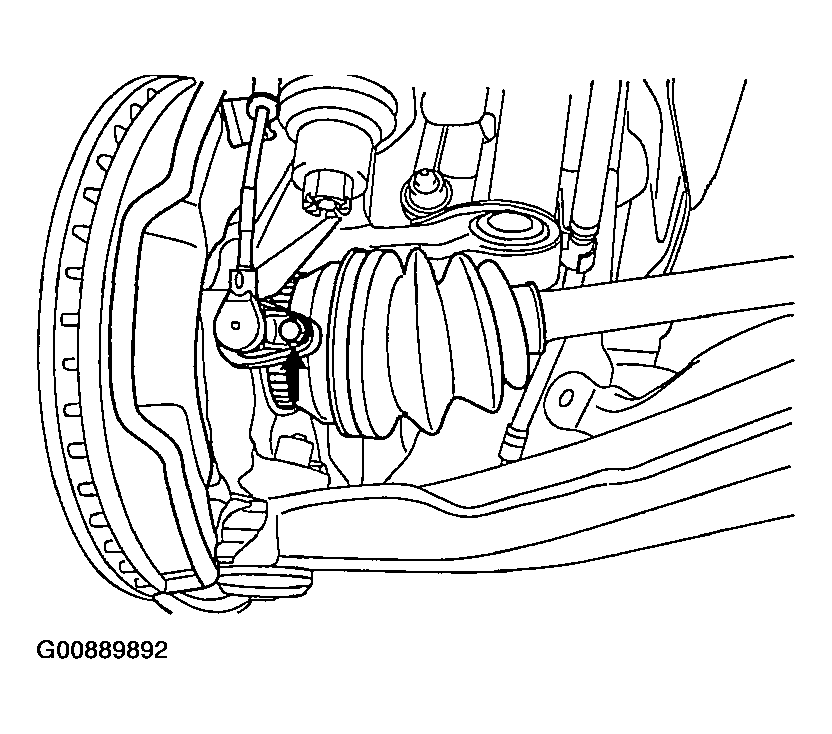

    Fig 1: Removing Front Wheel Speed Sensor Mounting Bolt
    G00889892Courtesy of HYUNDAI MOTOR CO.
  2. Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector.
Fig 2: Disconnecting Wheel Speed Sensor Connector
G00889893Courtesy of HYUNDAI MOTOR CO.
