Engine Block: Components

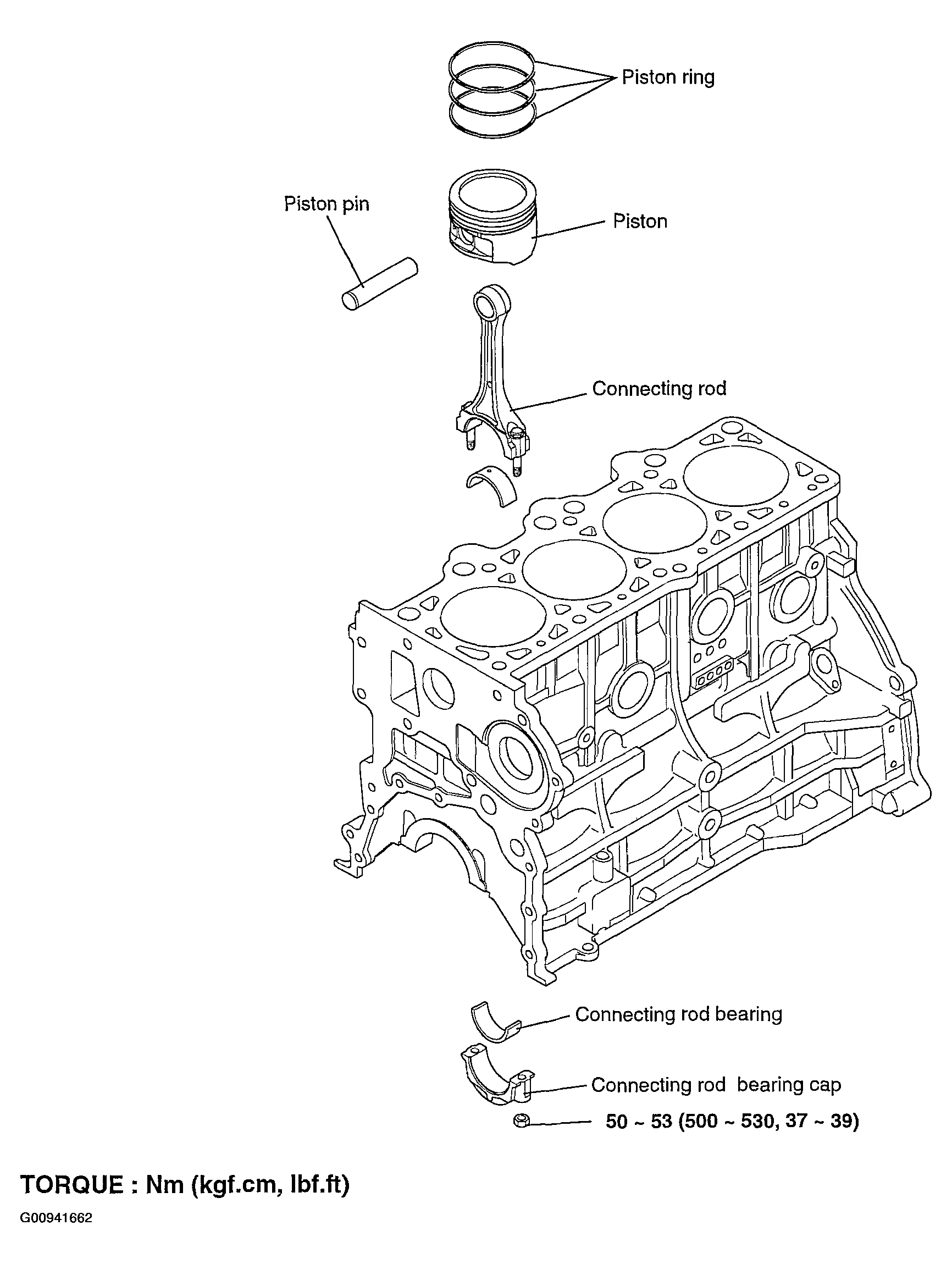

Fig 1: Locating Engine Block Components

G00941662

Courtesy of HYUNDAI MOTOR CO.
