Specific Gravity Test

  1. Measure the specific gravity of the coolant with a hydrometer.
  2. Measure the coolant temperature and calculate the concentration from the relation between the specific gravity and temperature, using the following table for reference.

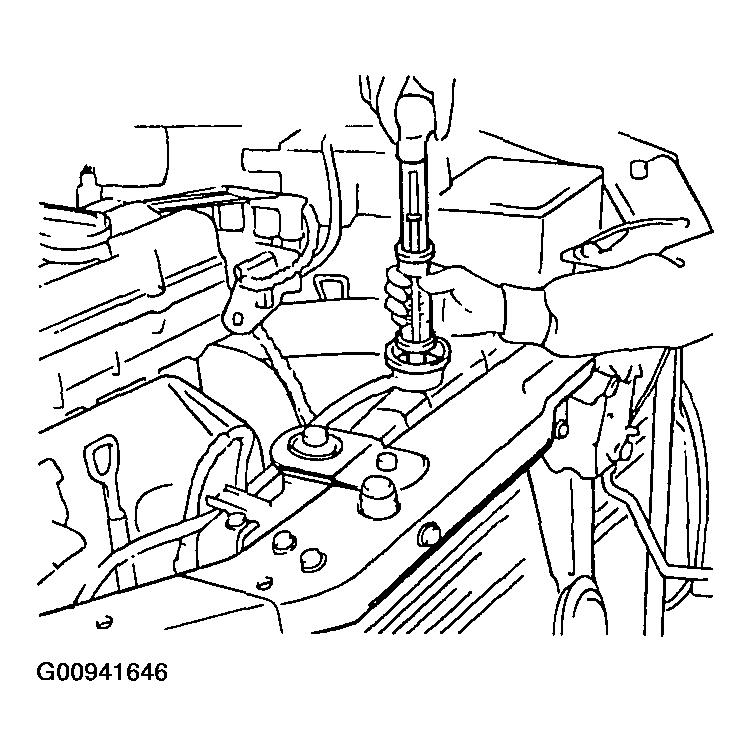

Fig 1: Testing Coolant Gravity
G00941646Courtesy of HYUNDAI MOTOR CO.
