Intake Manifold: Components

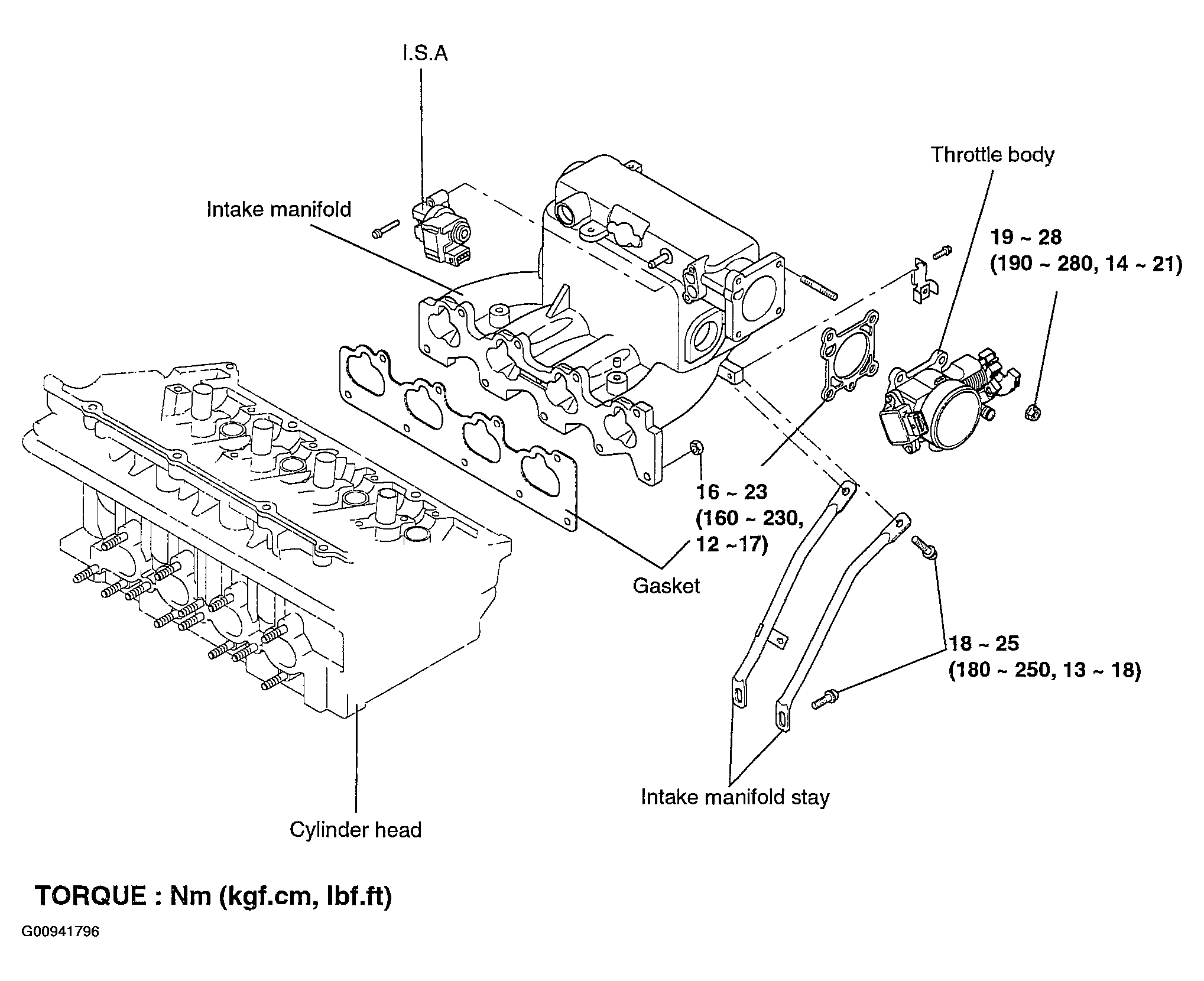

Fig 1: Identifying Intake Manifold Components
G00941796Courtesy of HYUNDAI MOTOR CO.
