Main Moving System: Flywheel: Components

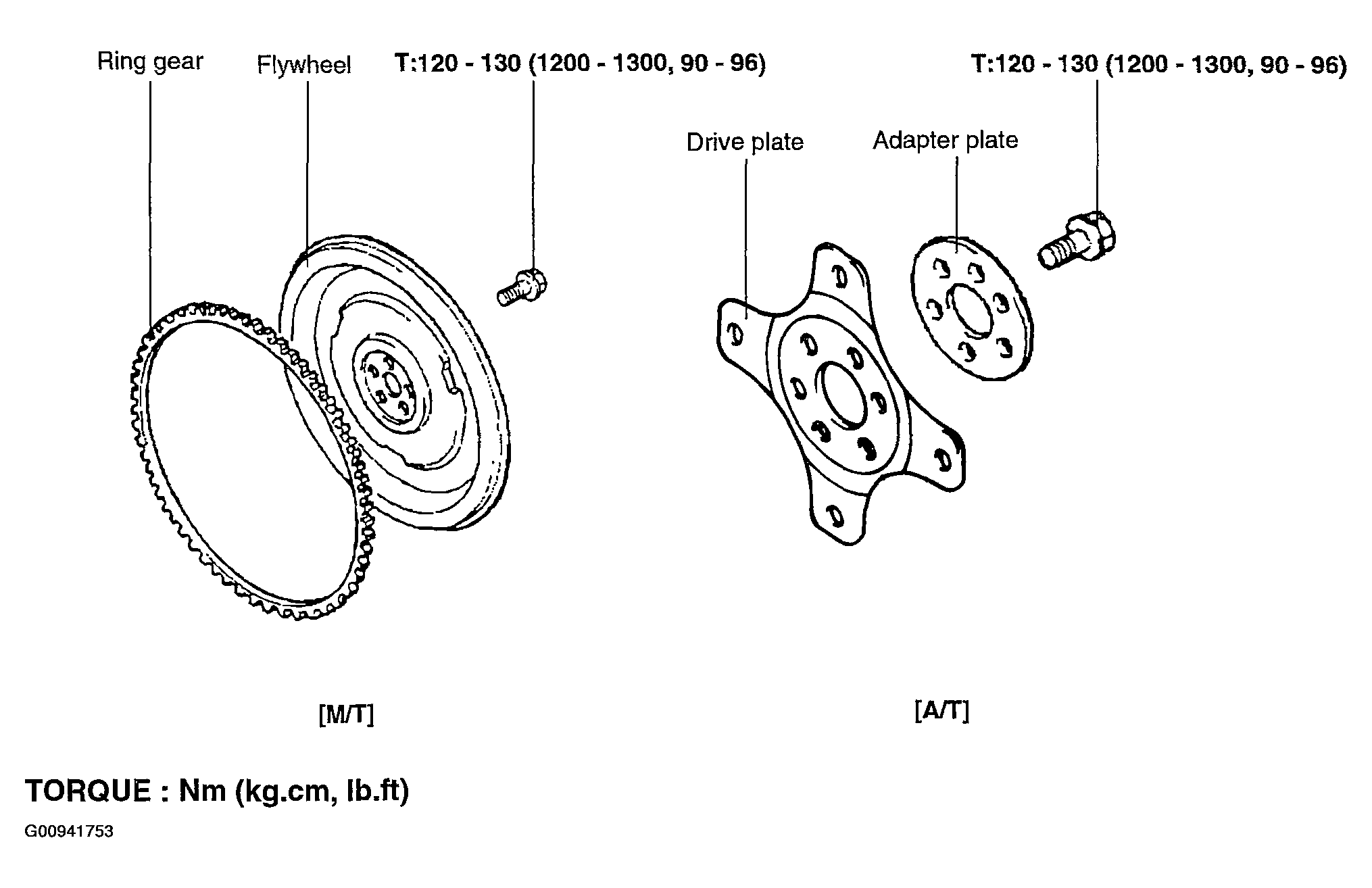

Fig 1: Identifying Fly Wheel Components
G00941753Courtesy of HYUNDAI MOTOR CO.

M/T : Manual Transmission Vehicles

A/T : Automatic Transmission Vehicles
