Main Moving System: Piston: Components

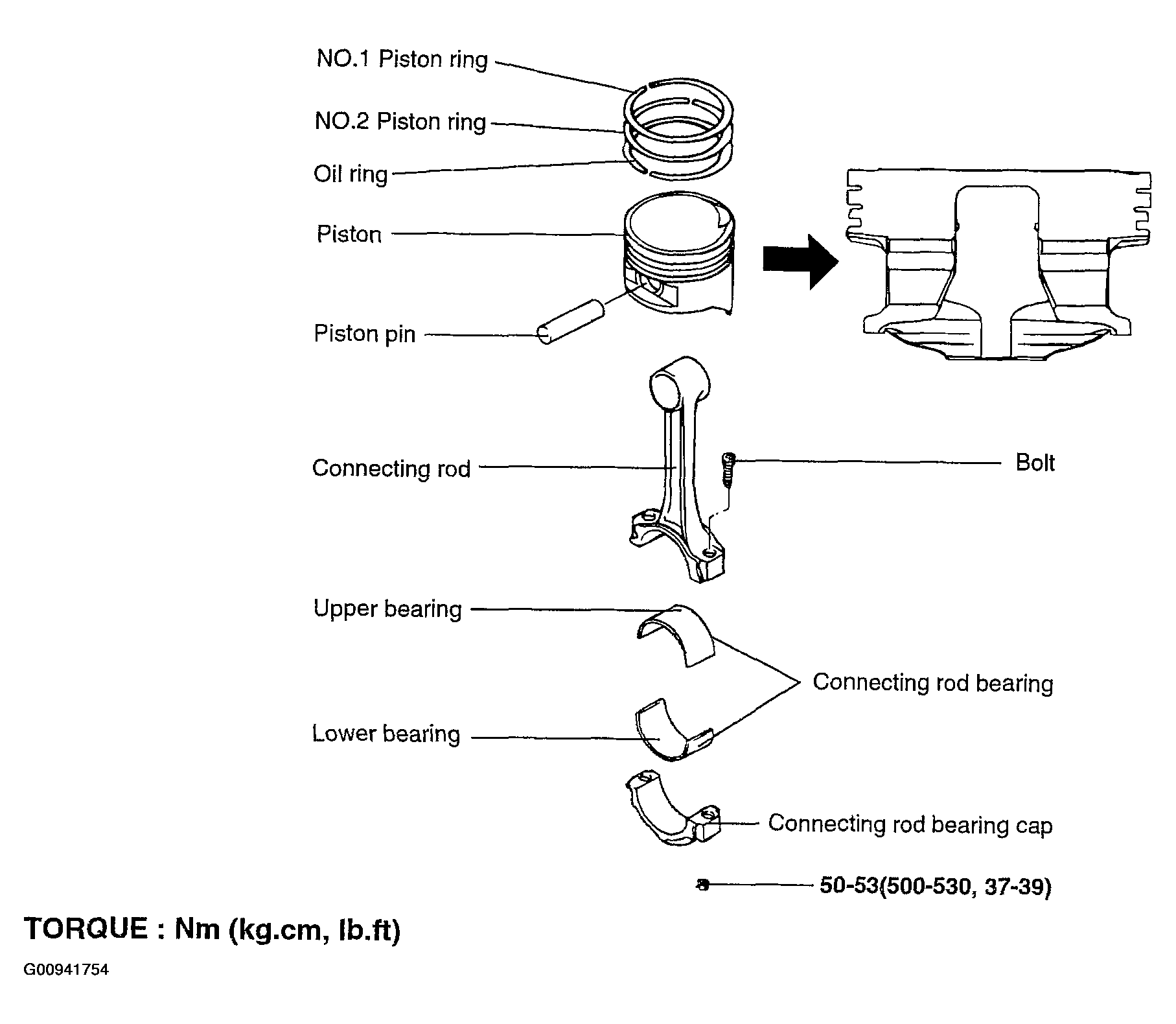

Fig 1: Exploded View Of Piston

G00941754

Courtesy of HYUNDAI MOTOR CO.
