Timing Belt: Components

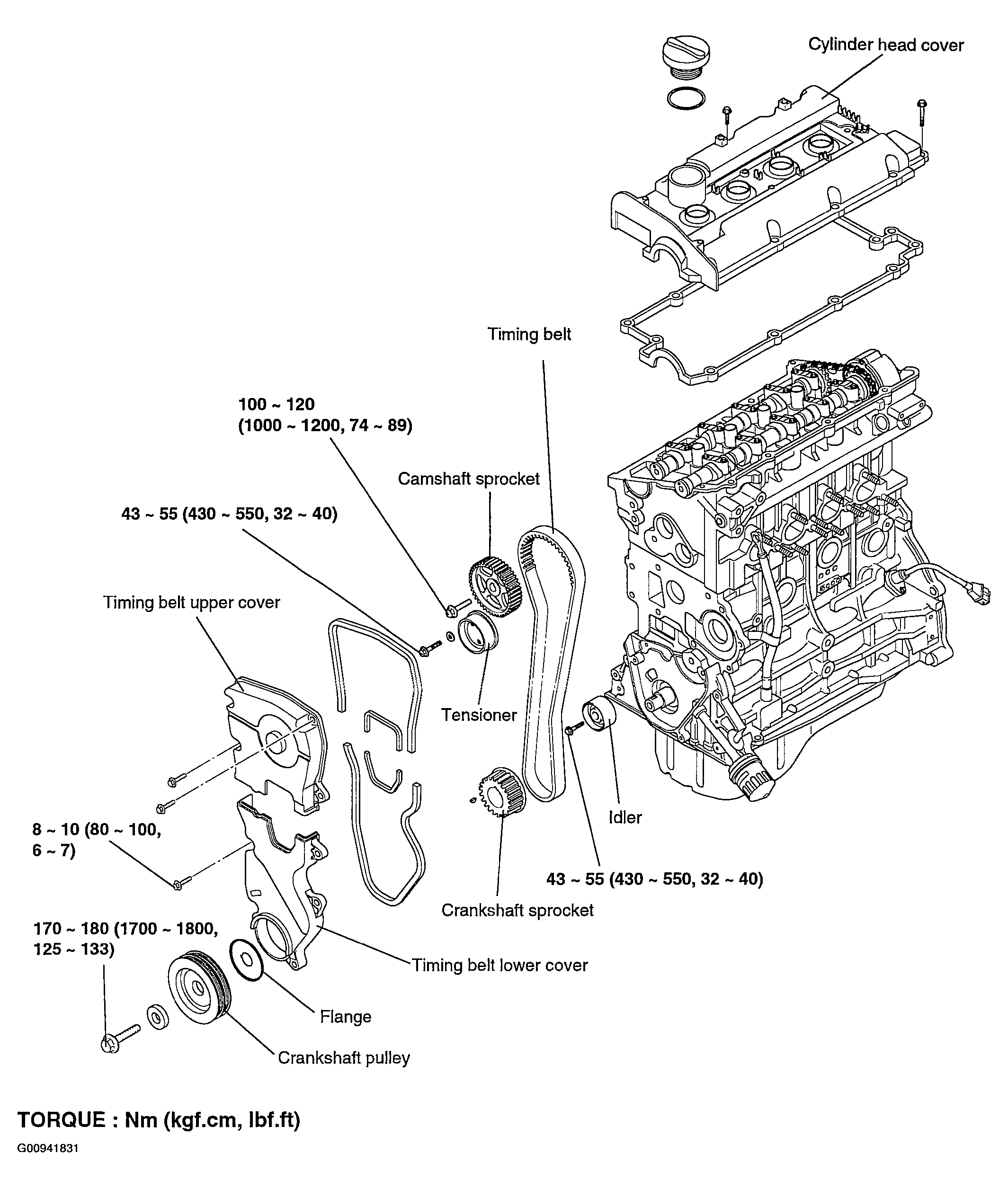

Fig 1: Identifying timing System components
G00941831Courtesy of HYUNDAI MOTOR CO.
