Automatic Transaxle: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the engine cover.

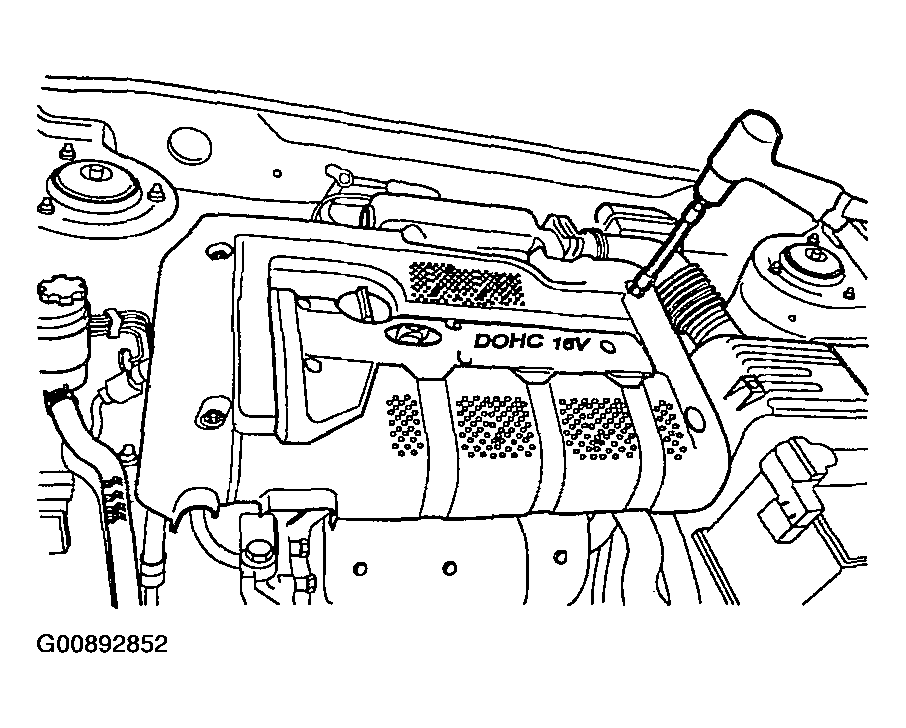

Fig 1: Removing Engine Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the battery terminal.
Remove the air duct.

Fig 2: Removing Air Duct
Courtesy of HYUNDAI MOTOR CO.
Remove the battery tray.

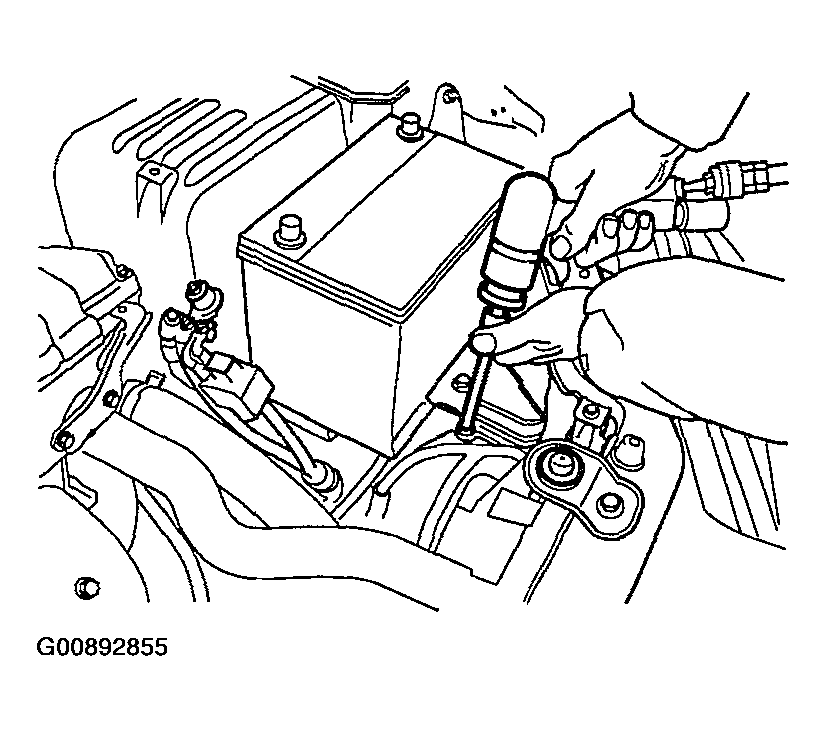

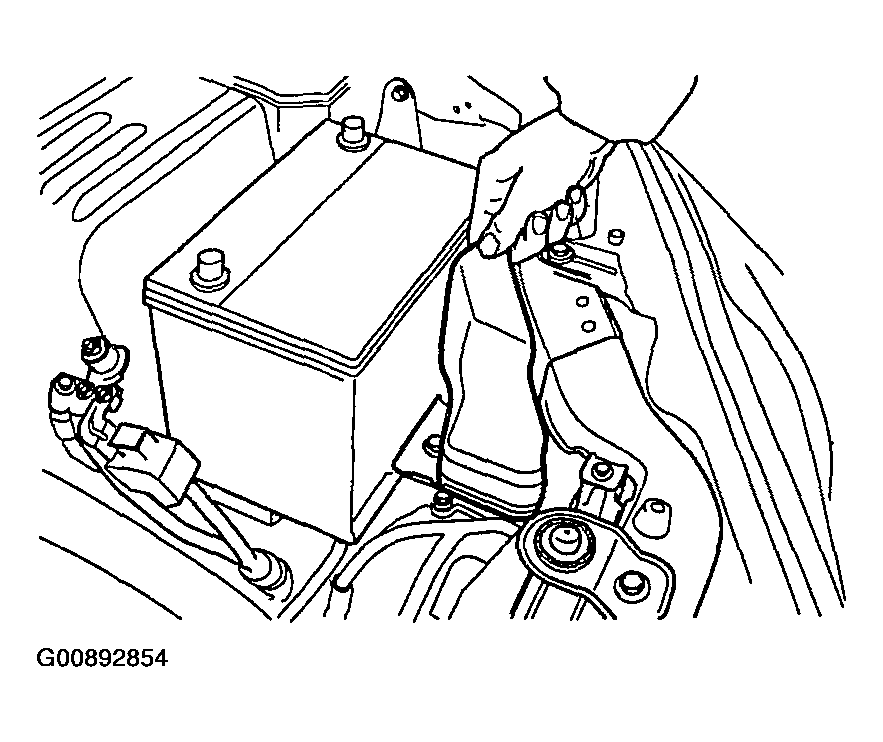

Fig 3: Removing Battery Tray
Courtesy of HYUNDAI MOTOR CO.
Remove the upper and lower air cleaner.

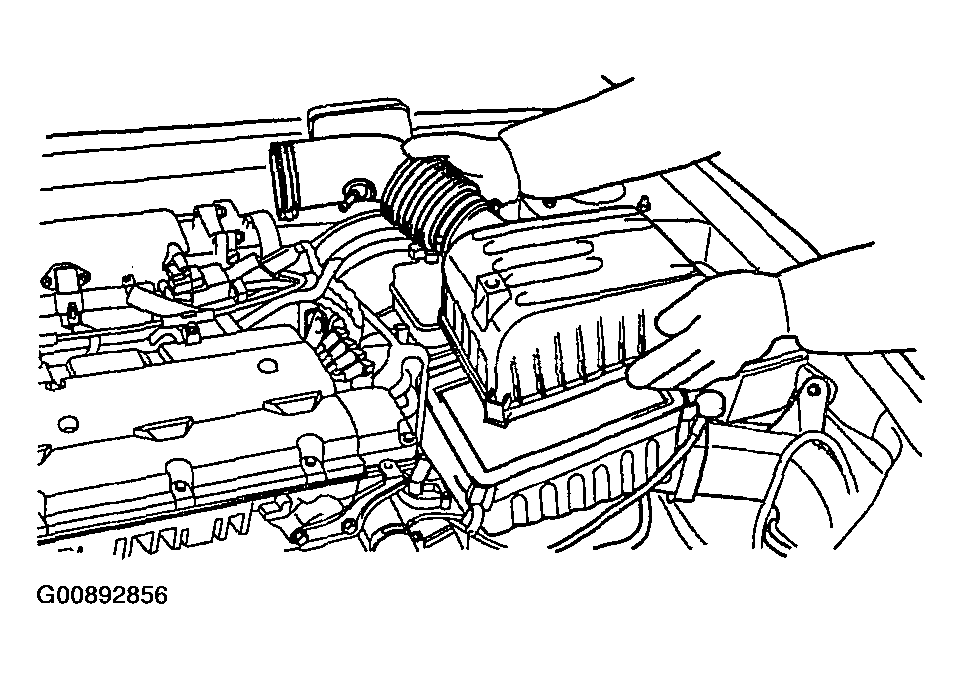

Fig 4: Removing Upper Air Cleaner
Courtesy of HYUNDAI MOTOR CO.

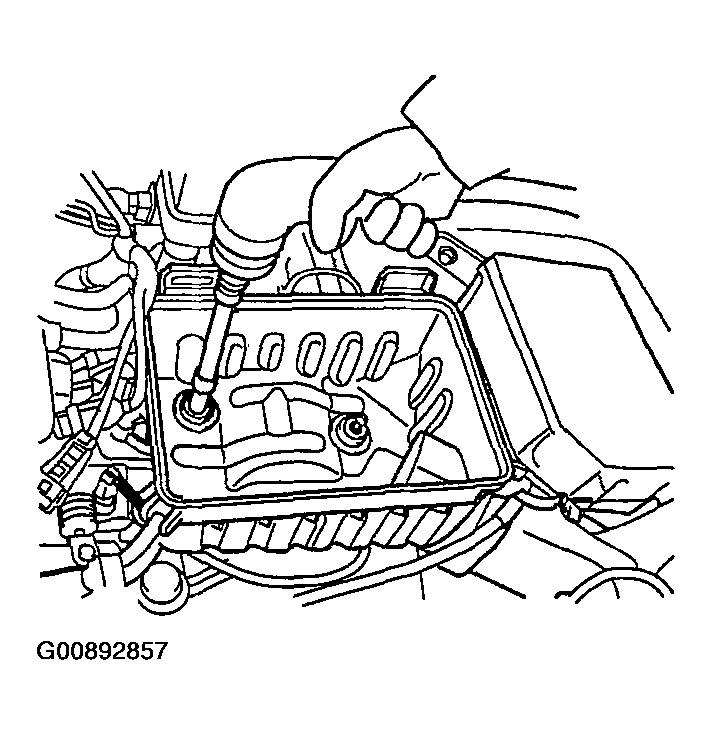

Fig 5: Removing Lower Air Cleaner
Courtesy of HYUNDAI MOTOR CO.
After removing the CKP sensor, O2 sensor and oil pressure switch wiring bracket, separate the connectors.
Remove the speedometer sensor connector.

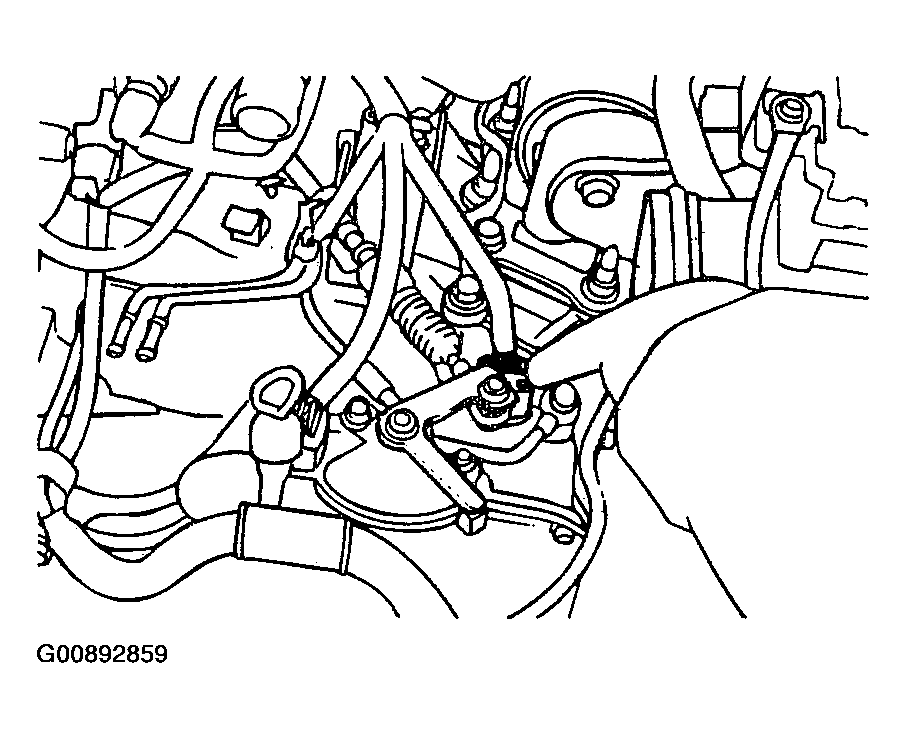

Remove the transaxle range switch.

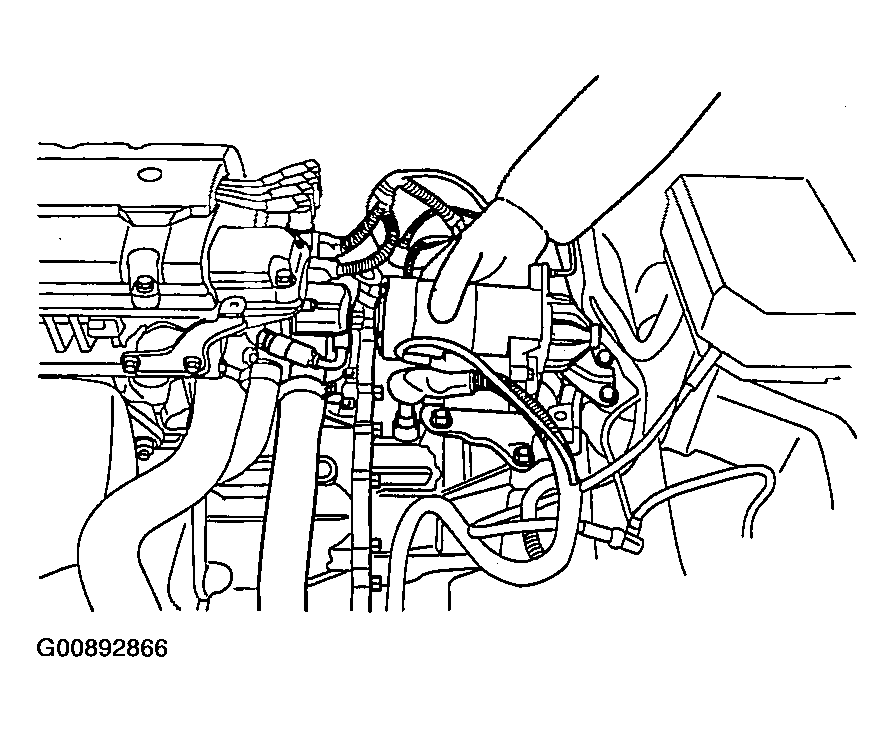

Fig 6: Removing Transaxle Range Switch
Courtesy of HYUNDAI MOTOR CO.

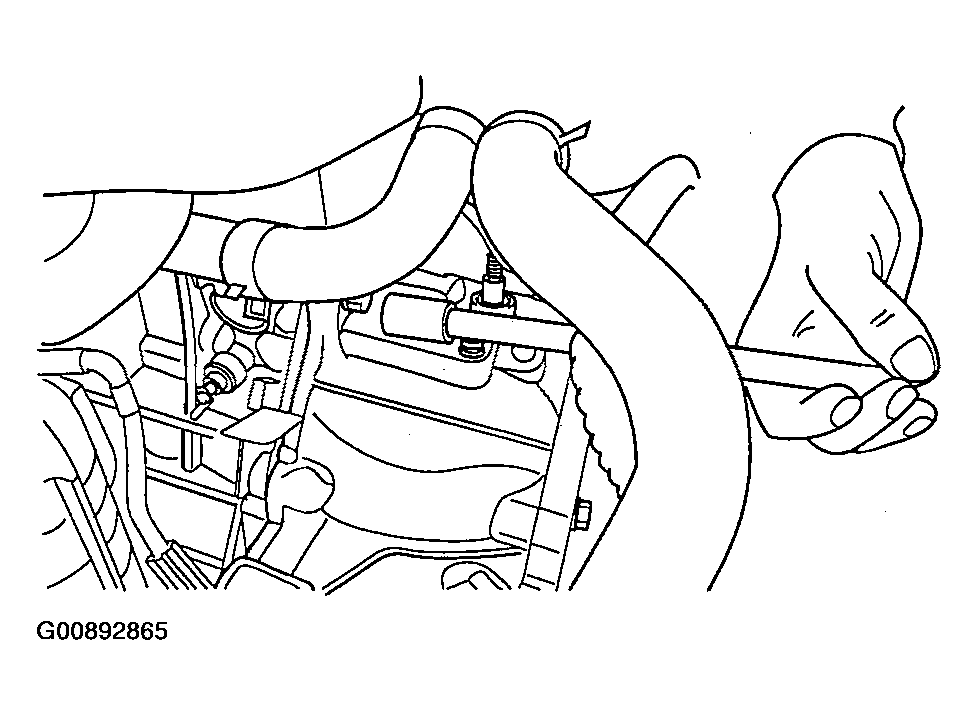

Remove the oil cooler hose.

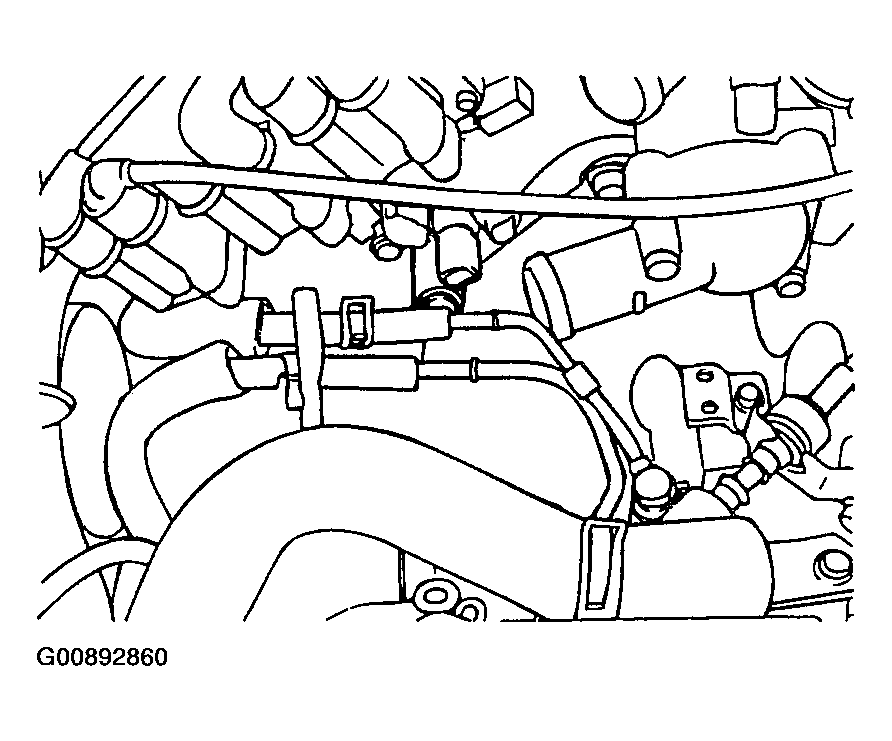

Fig 7: Removing Oil Cooler Hose
Courtesy of HYUNDAI MOTOR CO.

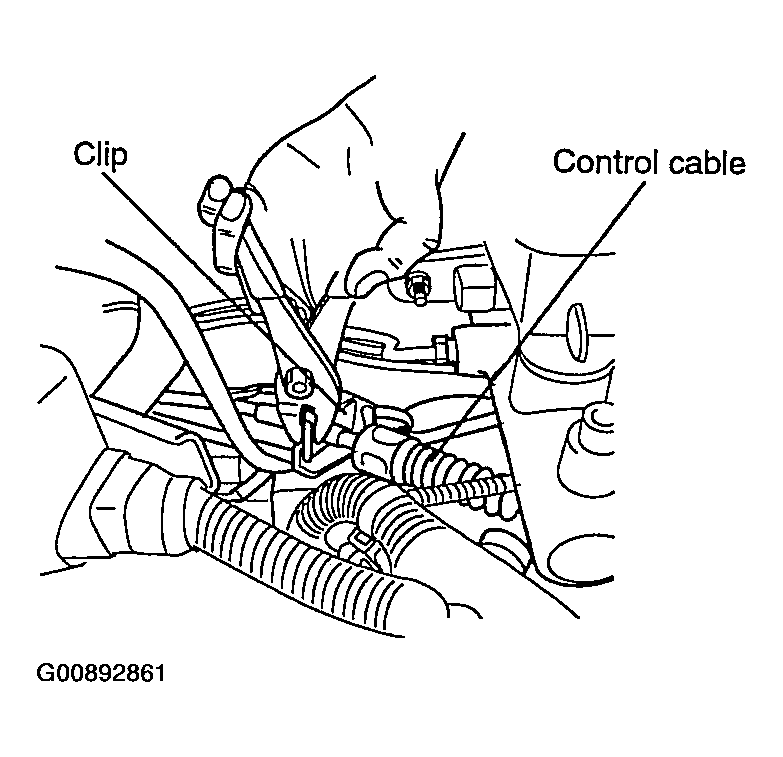

Remove the clip (transaxle side) of the shift cable.

Fig 8: Removing Clip (Transaxle Side) Of Shift Cable
Courtesy of HYUNDAI MOTOR CO.
Separate the steering column shaft joint.

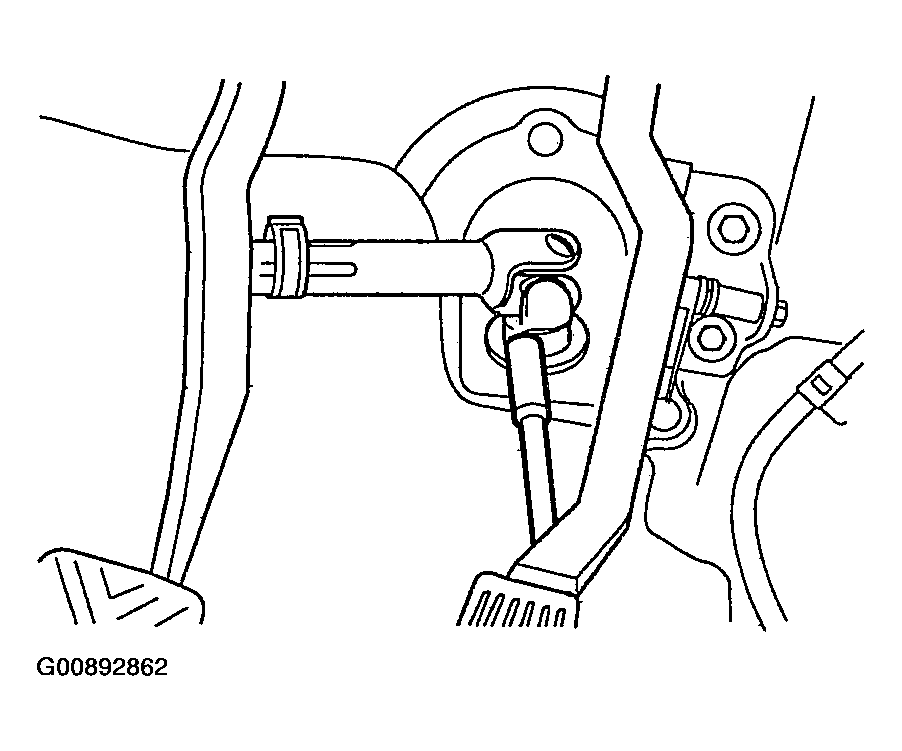

Fig 9: Separating Steering Column Shaft Joint
Courtesy of HYUNDAI MOTOR CO.

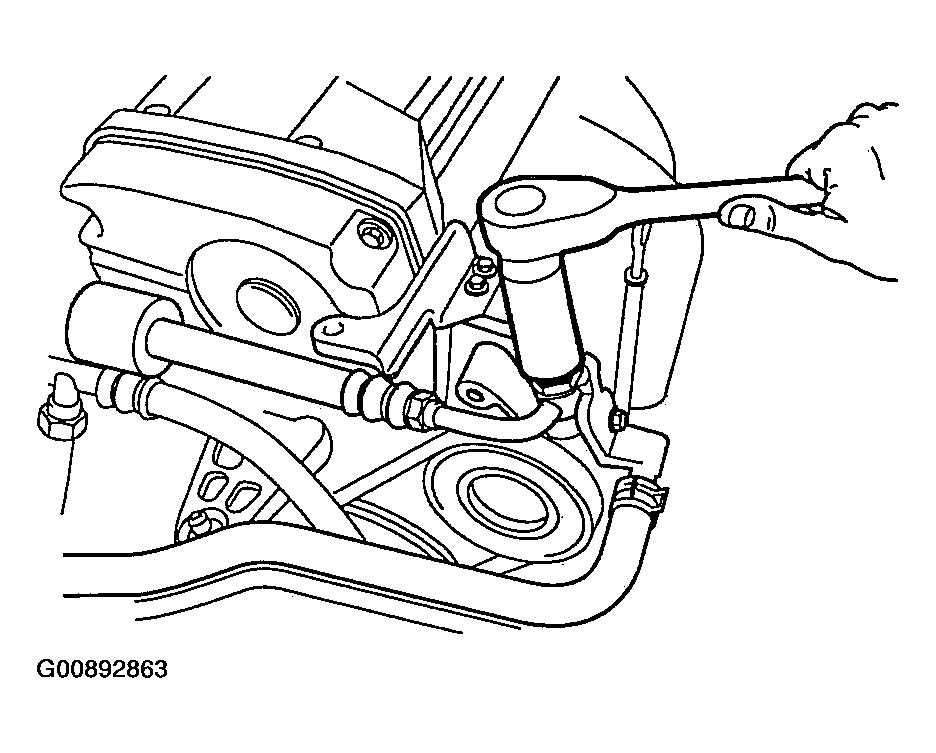

Separate the power steering oil pump hose.

Fig 10: Separating Power Steering Oil Pump Hose
Courtesy of HYUNDAI MOTOR CO.

NOTE: Be careful not to leak after separating.

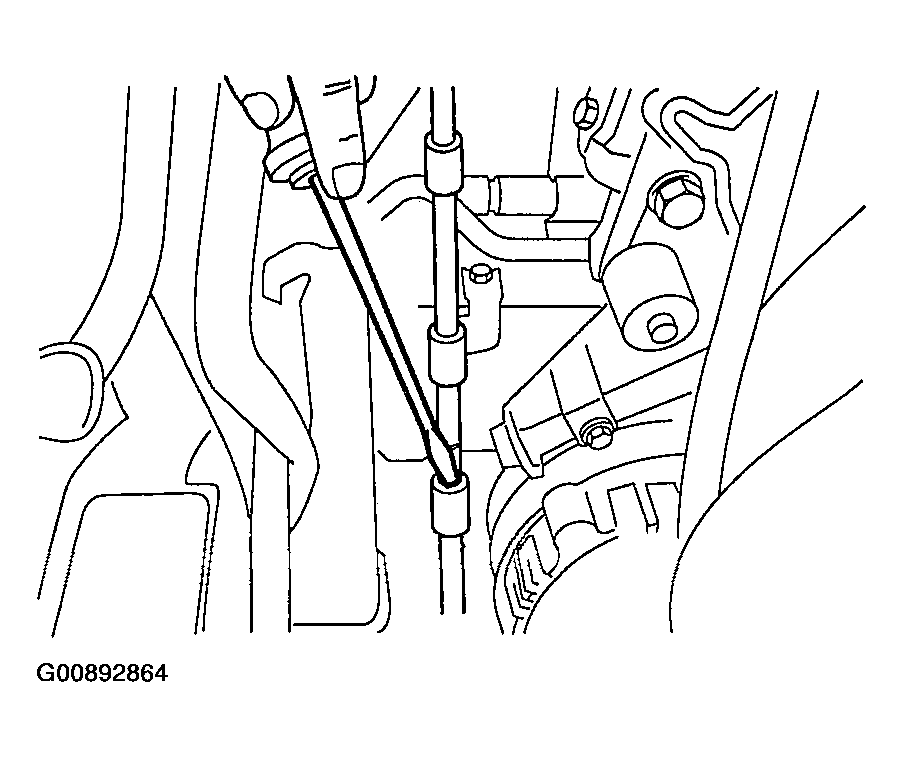

Separate the hose after removing the clip of the power steering return hose.

Fig 11: Separating Hose After Removing Clip Of Power Steering Return Hose
Courtesy of HYUNDAI MOTOR CO.

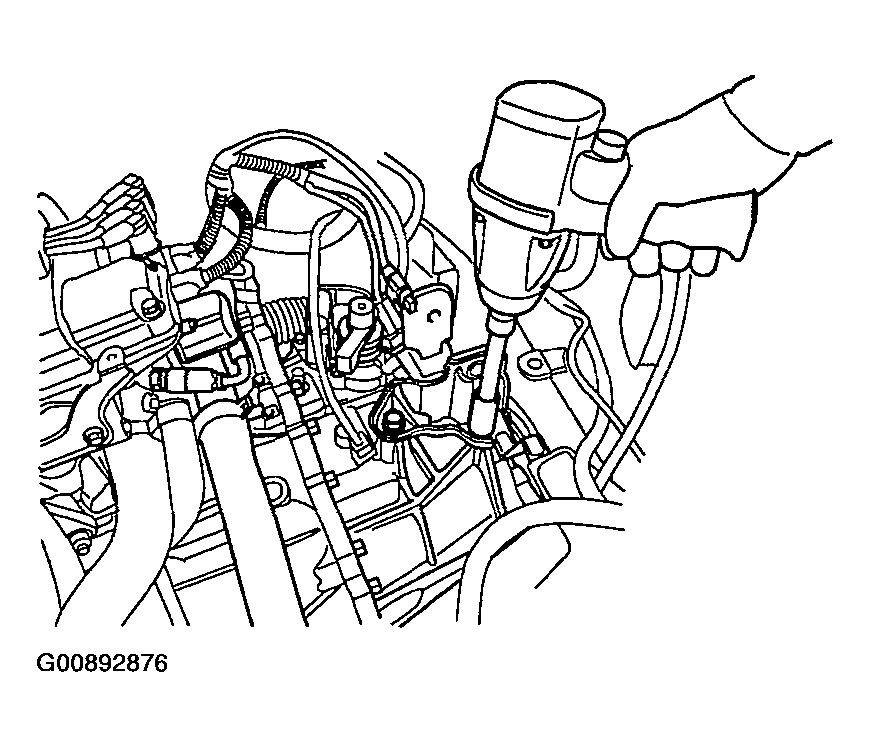

Remove the upper connecting transaxle bolt.

Fig 12: Removing Upper Connecting Transaxle Bolt
Courtesy of HYUNDAI MOTOR CO.
Separate the start motor.

Fig 13: Separating Start Motor
Courtesy of HYUNDAI MOTOR CO.
Install the engine support fixture.
After removing the tire, remove the caliper.

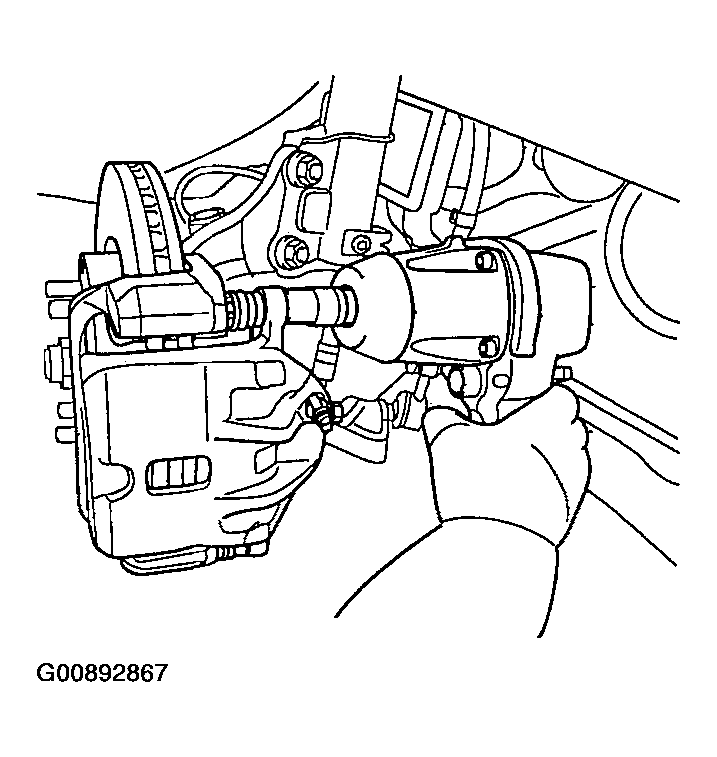

Fig 14: Removing Caliper
Courtesy of HYUNDAI MOTOR CO.
Remove the transaxle side cover.

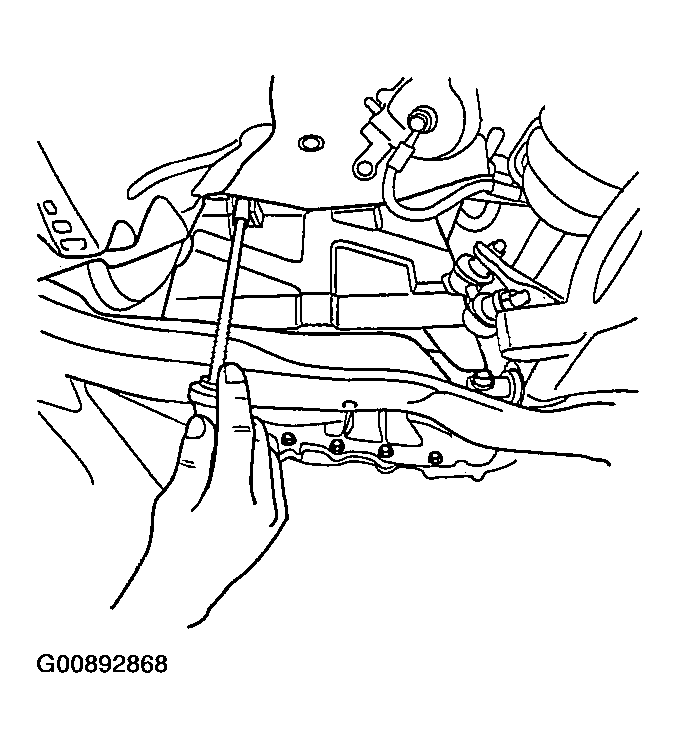

Fig 15: Removing Transaxle Side Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the transaxle under cover.

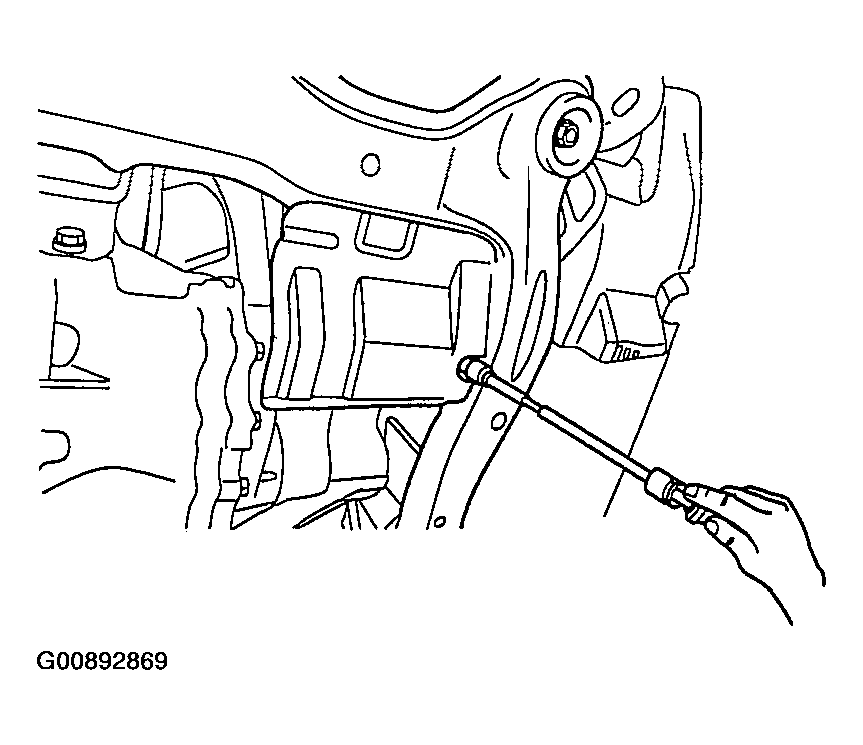

Fig 16: Removing Transaxle Under Cover
Courtesy of HYUNDAI MOTOR CO.
Separate the tie rod end.

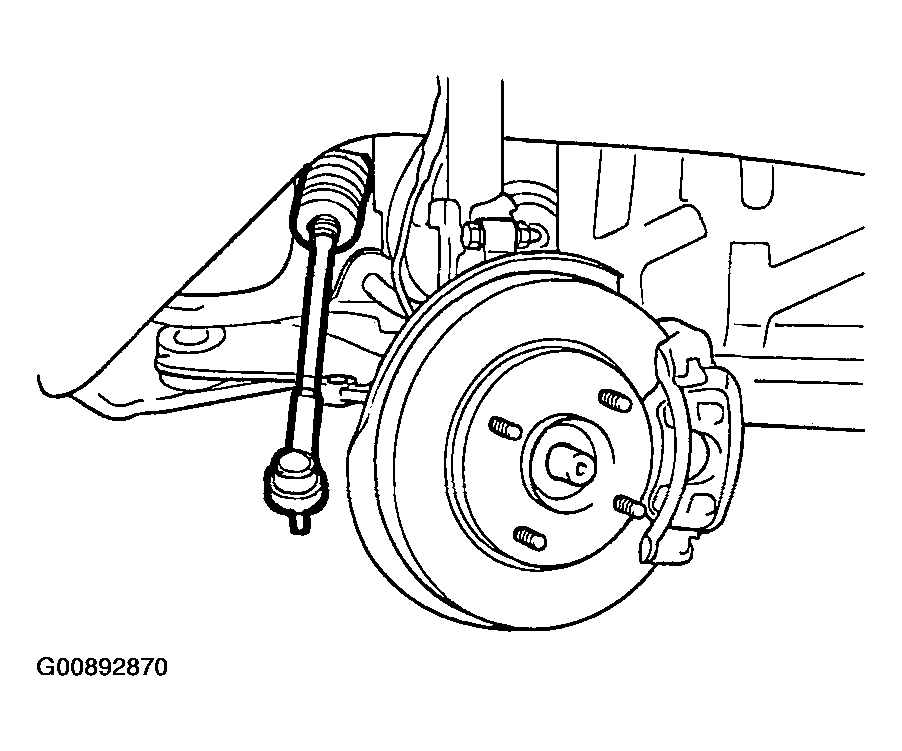

Fig 17: Separating Tie Rod End
Courtesy of HYUNDAI MOTOR CO.

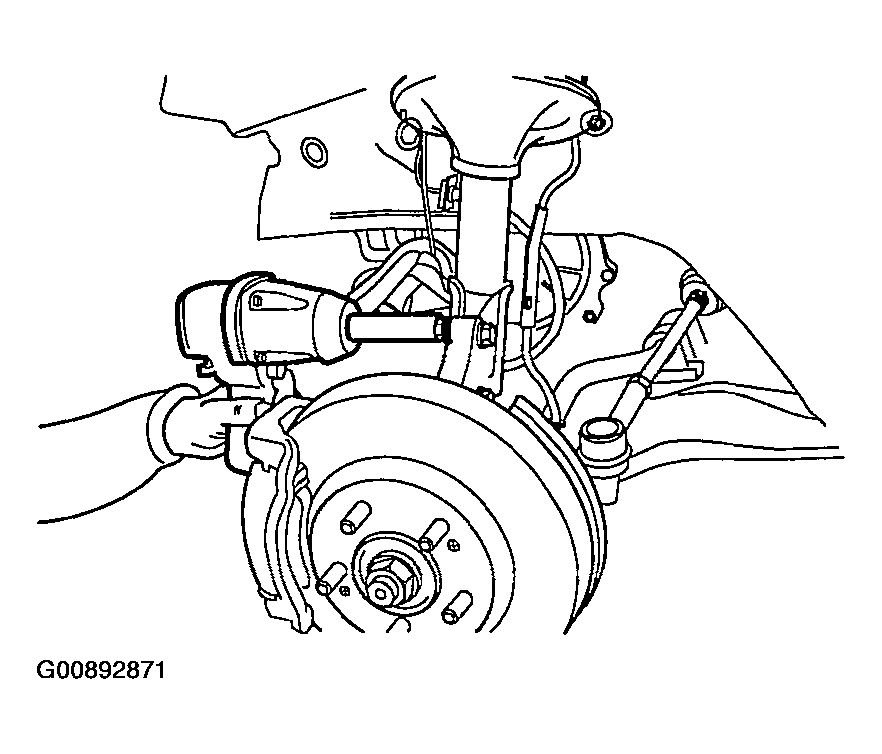

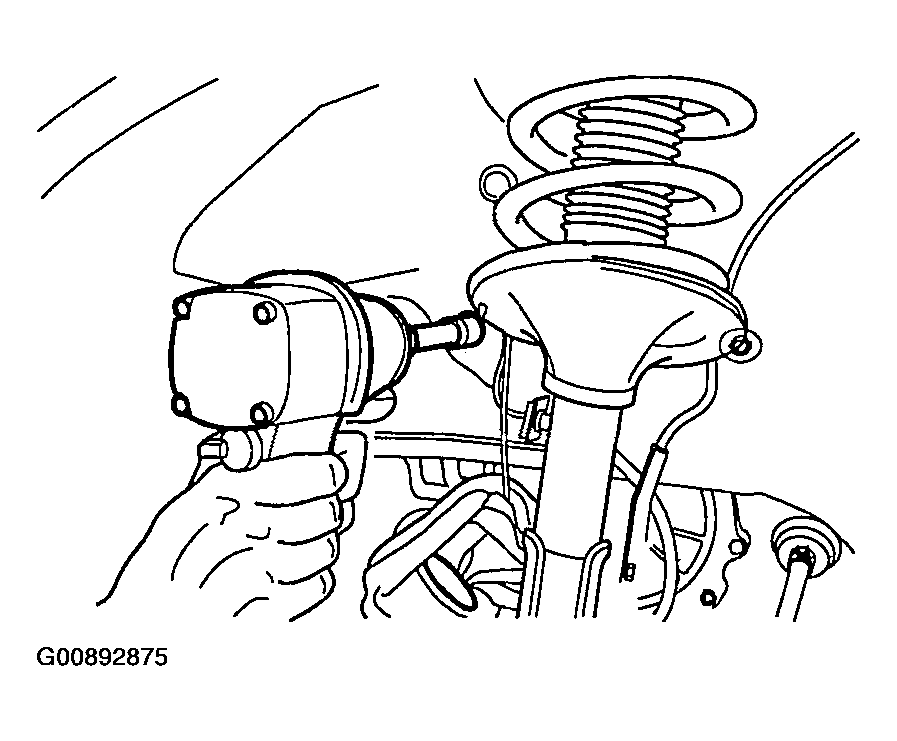

Remove the wheel speed sensor and the knuckle mounting bolt.

Fig 18: Removing Wheel Speed Sensor & Knuckle Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.
Drain the oil.

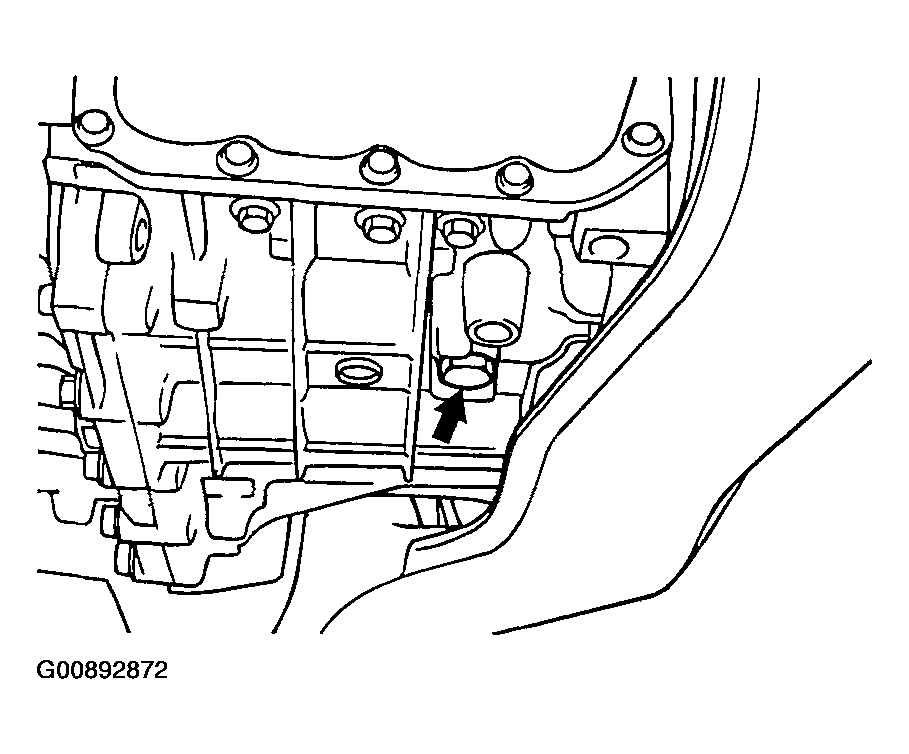

Fig 19: Locating Oil Drain Plug
Courtesy of HYUNDAI MOTOR CO.
Remove the transaxle mounting bracket.
1. Insulator bolt

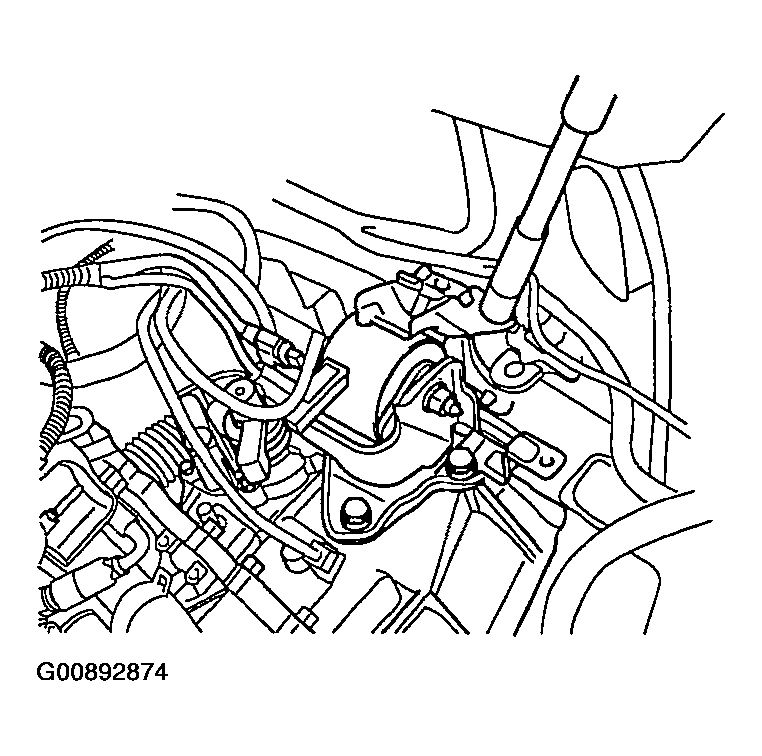

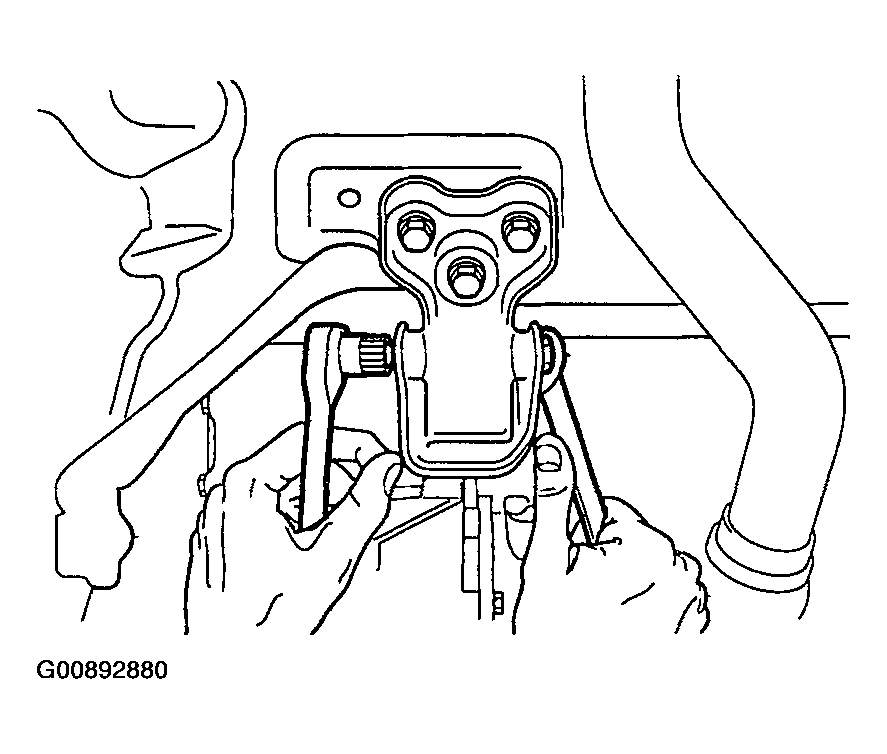

  Fig 20: Removing Transaxle Mounting Bracket Insulator Bolt
  Courtesy of HYUNDAI MOTOR CO.
2. Body mounting bolt (Upper)

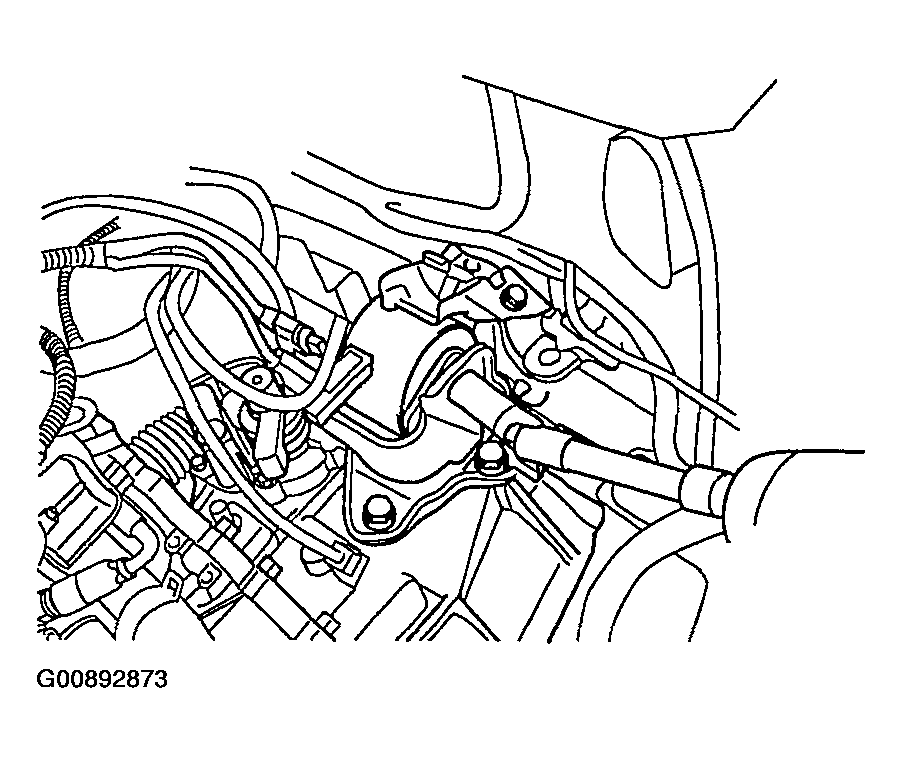

  Fig 21: Removing Body Mounting Bolt (Upper)
  Courtesy of HYUNDAI MOTOR CO.
3. Body mounting bolt (Side)

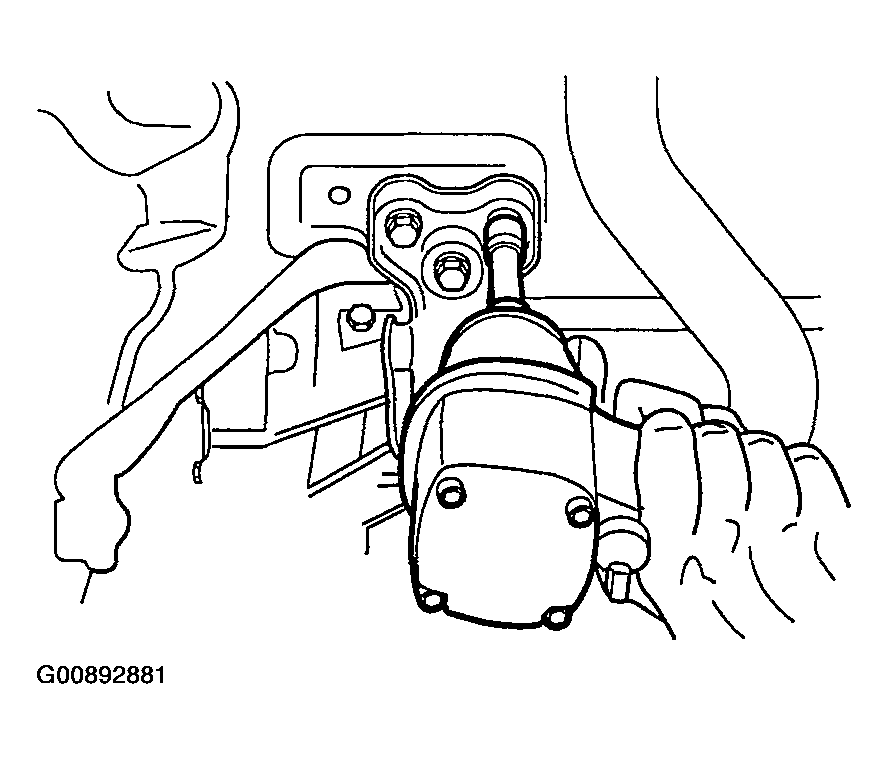

  Fig 22: Removing Body Mounting Bolt (Side)
  Courtesy of HYUNDAI MOTOR CO.
4. Transaxle side mounting bolt
Fig 23: Removing Transaxle Side Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.
Remove the front roll stopper.
1. Insulator bolt

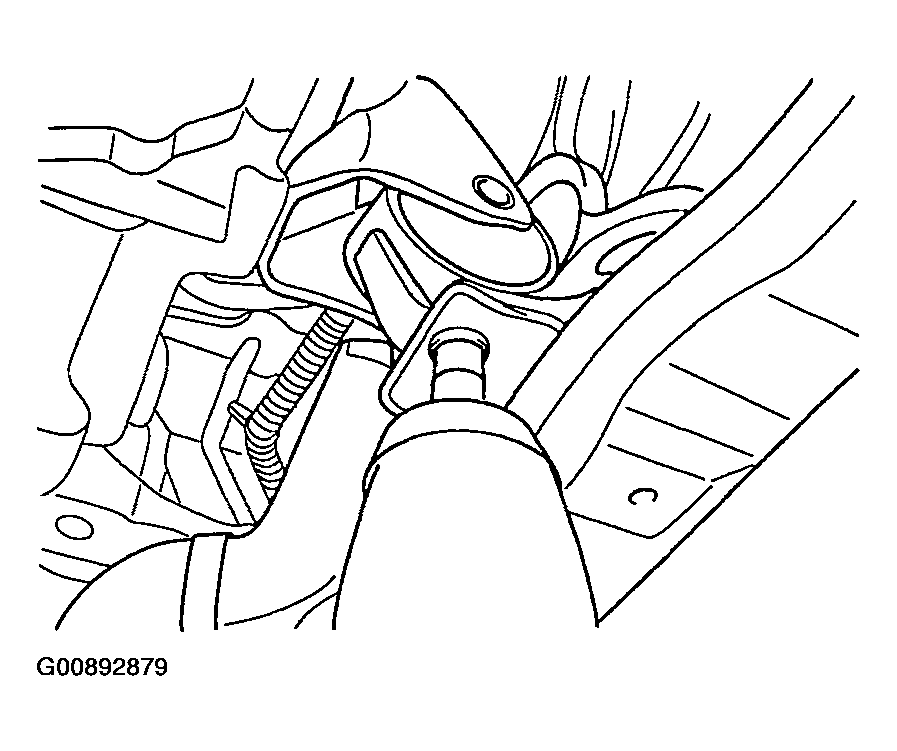

  Fig 24: Removing Front Roll Stopper Insulator Bolt
  Courtesy of HYUNDAI MOTOR CO.
2. Stopper bolt (Upper)

  Fig 25: Remove Front Roll Stopper Bolt (Upper)
  Courtesy of HYUNDAI MOTOR CO.
3. Stopper bolt (Lower)
Fig 26: Removing Front Roll Stopper Bolt (Lower)
Courtesy of HYUNDAI MOTOR CO.
Remove the rear roll stopper.
1. Insulator bolt

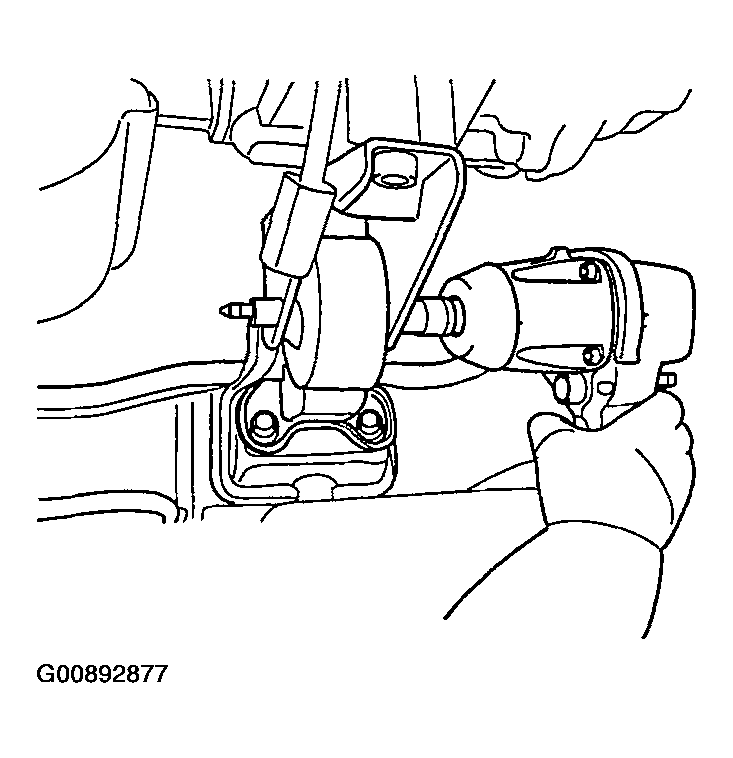

  Fig 27: Removing Rear Roll Stopper Insulator Bolt
  Courtesy of HYUNDAI MOTOR CO.
2. Stopper bolt

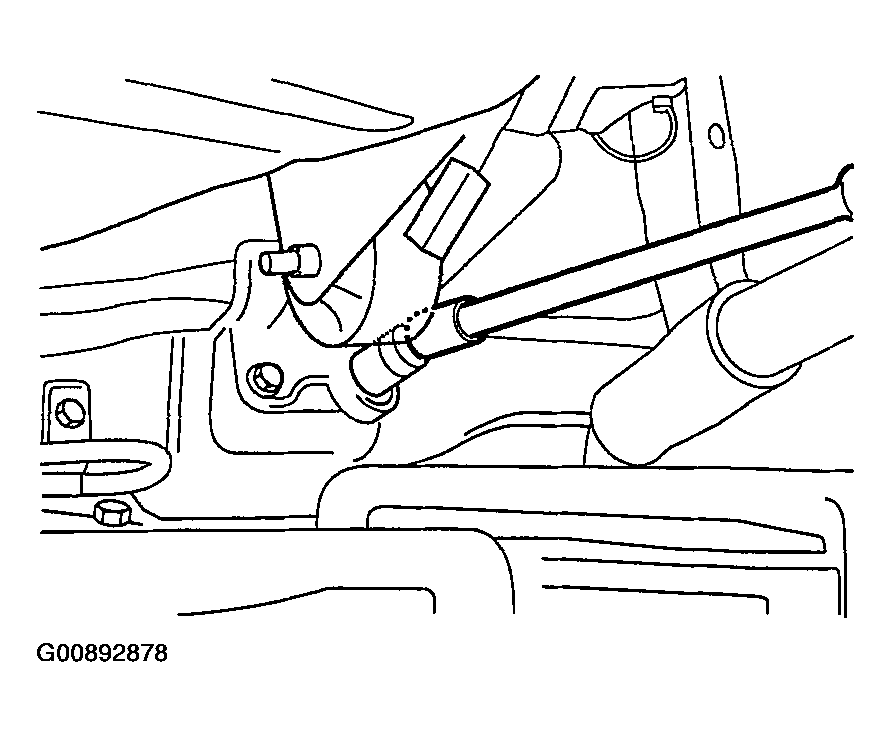

Fig 28: Removing Rear Roll Stopper Bolt
Courtesy of HYUNDAI MOTOR CO.
Remove the drive shaft.

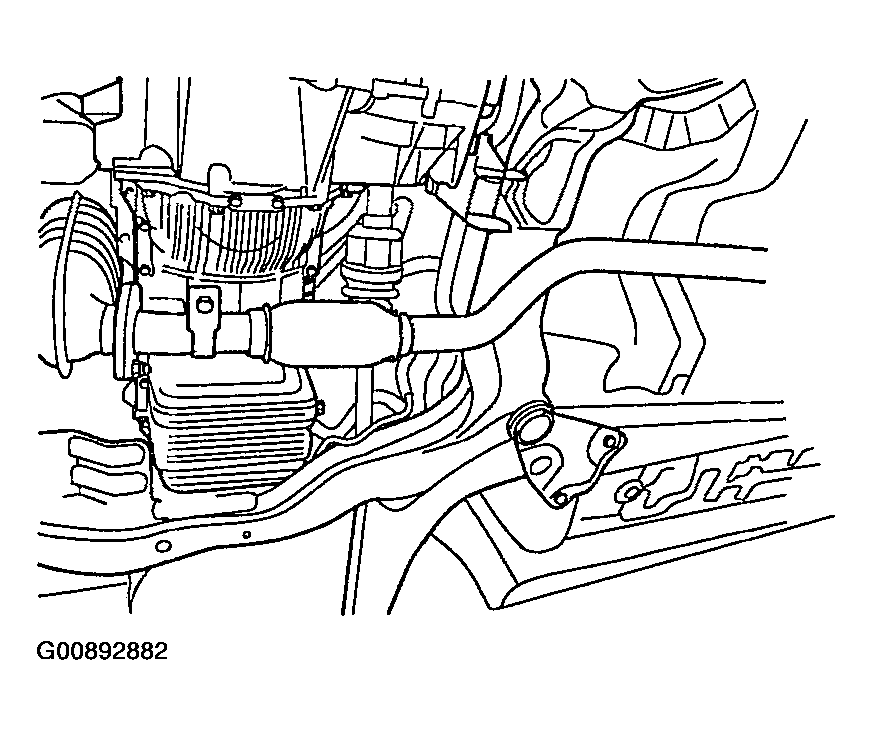

Remove the front muffler.

Fig 29: Removing Front Muffler
Courtesy of HYUNDAI MOTOR CO.

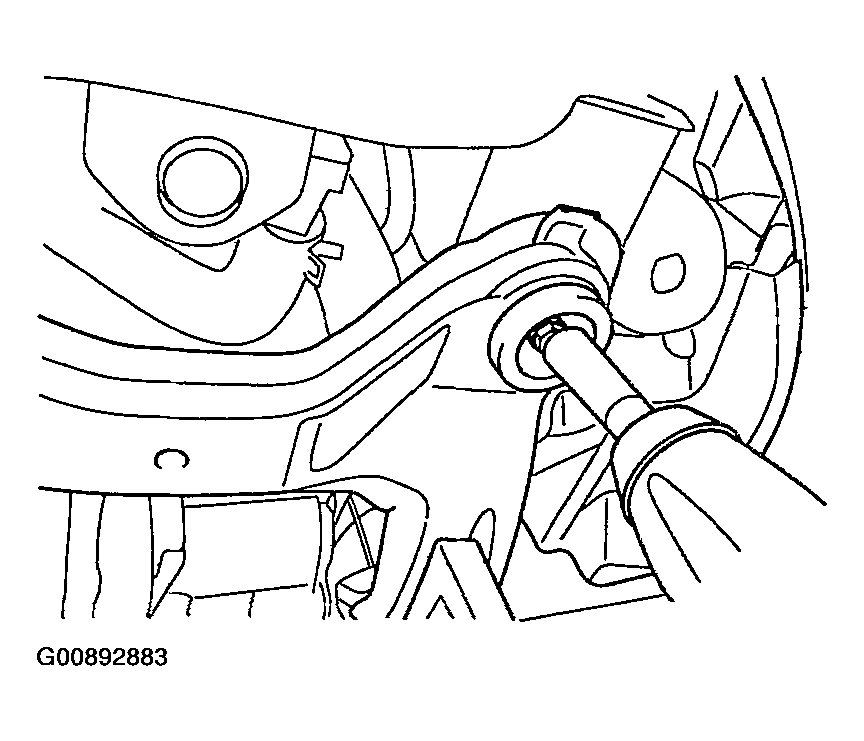

Remove the sub frame mounting bolt.

Fig 30: Removing Sub Frame Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.
Install the jack under the transaxle assembly.
Remove the transaxle lower mounting bolt to the engine.
Remove the transaxle assembly.
