Section 5 (Automatic Transaxle System)
>>
Automatic Transaxle System
>>
Inspection Process For Diagnostic Trouble Codes
>>
P1723: A/T Control Relay System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
P1723: A/T Control Relay System
WARNING:
This page is about a different variant/trim than selected.

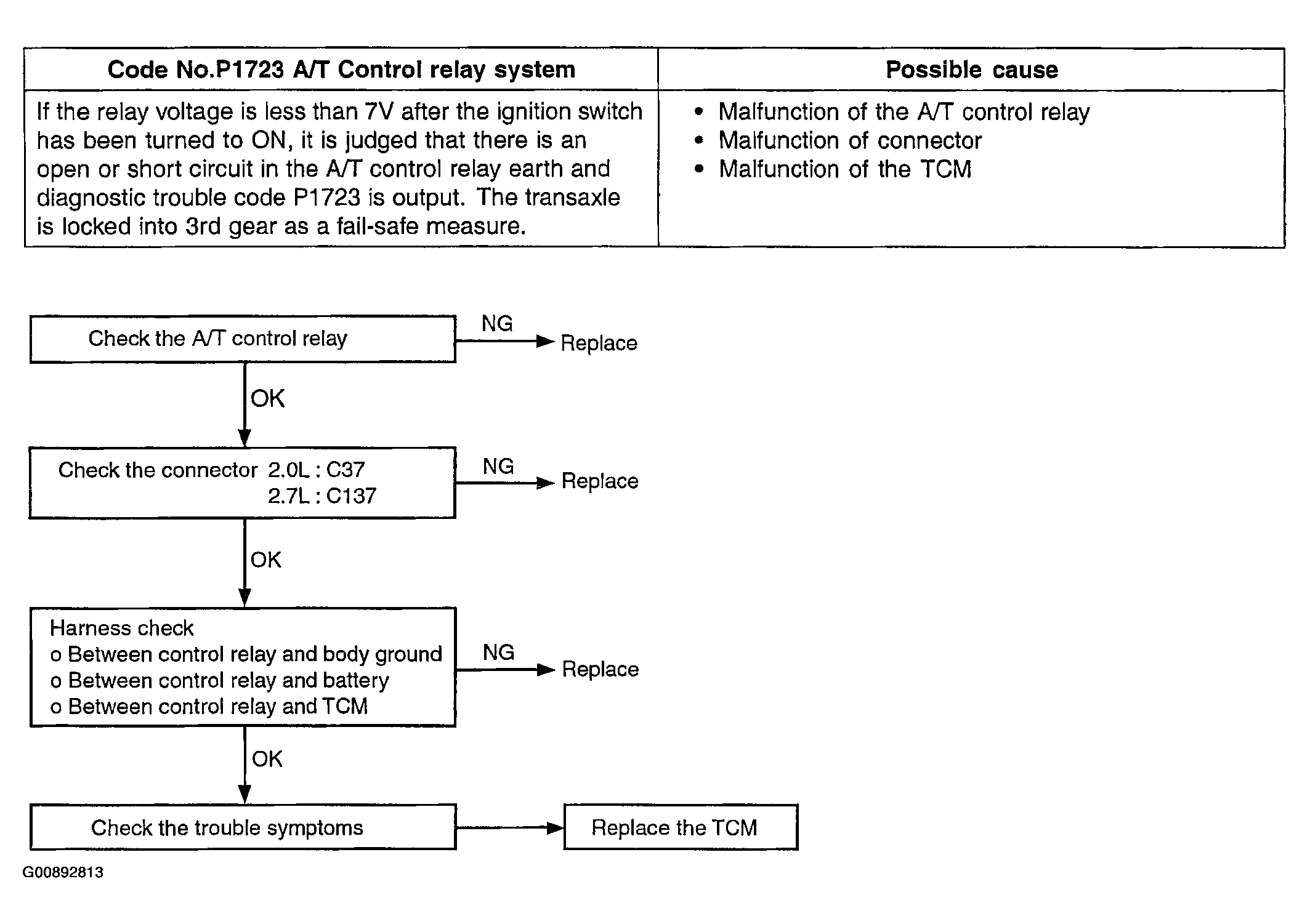

Fig 1: P1723: A/T Control Relay System
Courtesy of HYUNDAI MOTOR CO.
