Inspection Procedure 14

WARNING: This page is about a different variant/trim than selected.

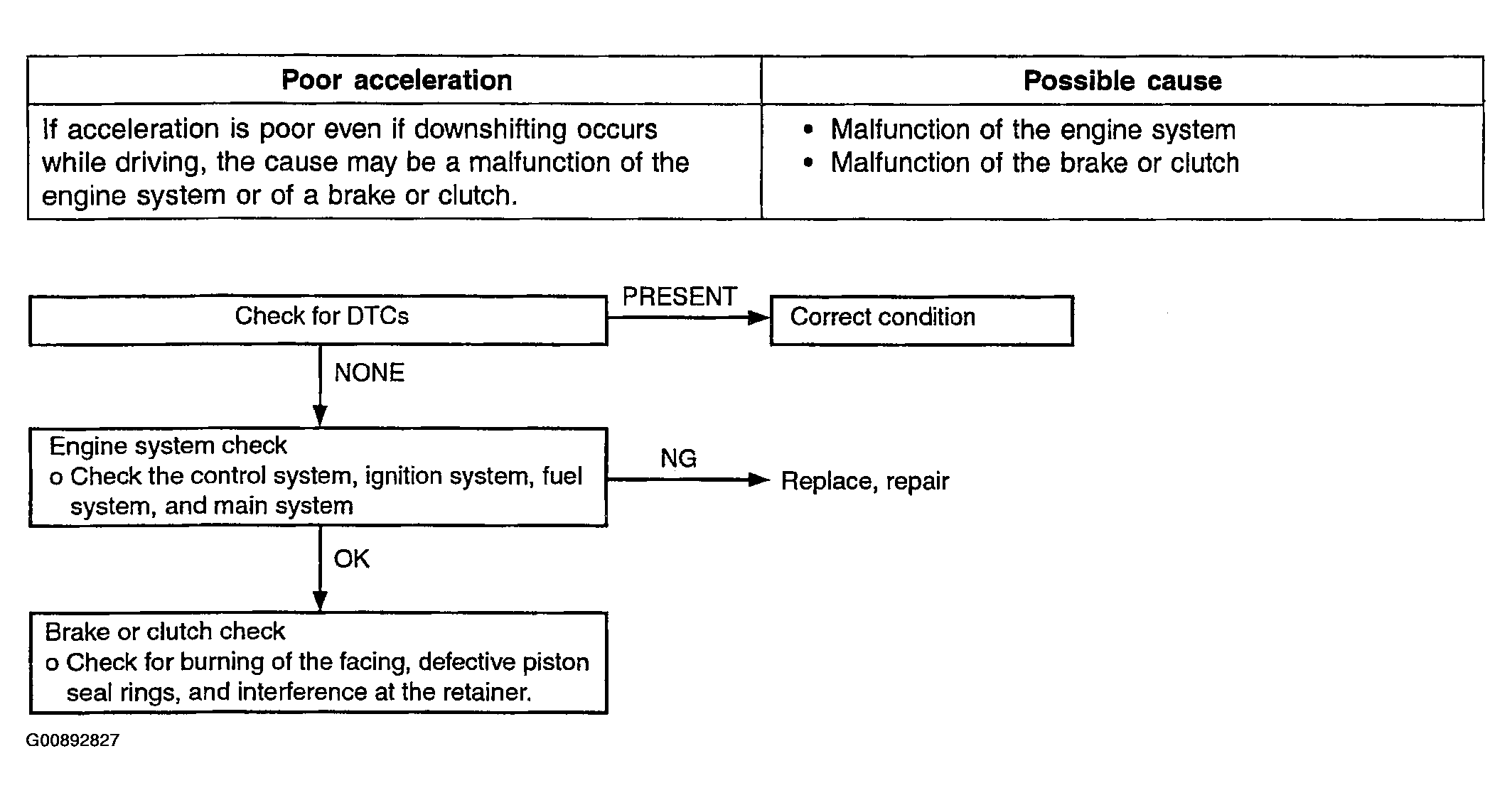

Fig 1: Inspection Procedure 14
G00892827Courtesy of HYUNDAI MOTOR CO.
