Wheel Alignment Specifications & Adjustment Procedures: General: Troubleshooting

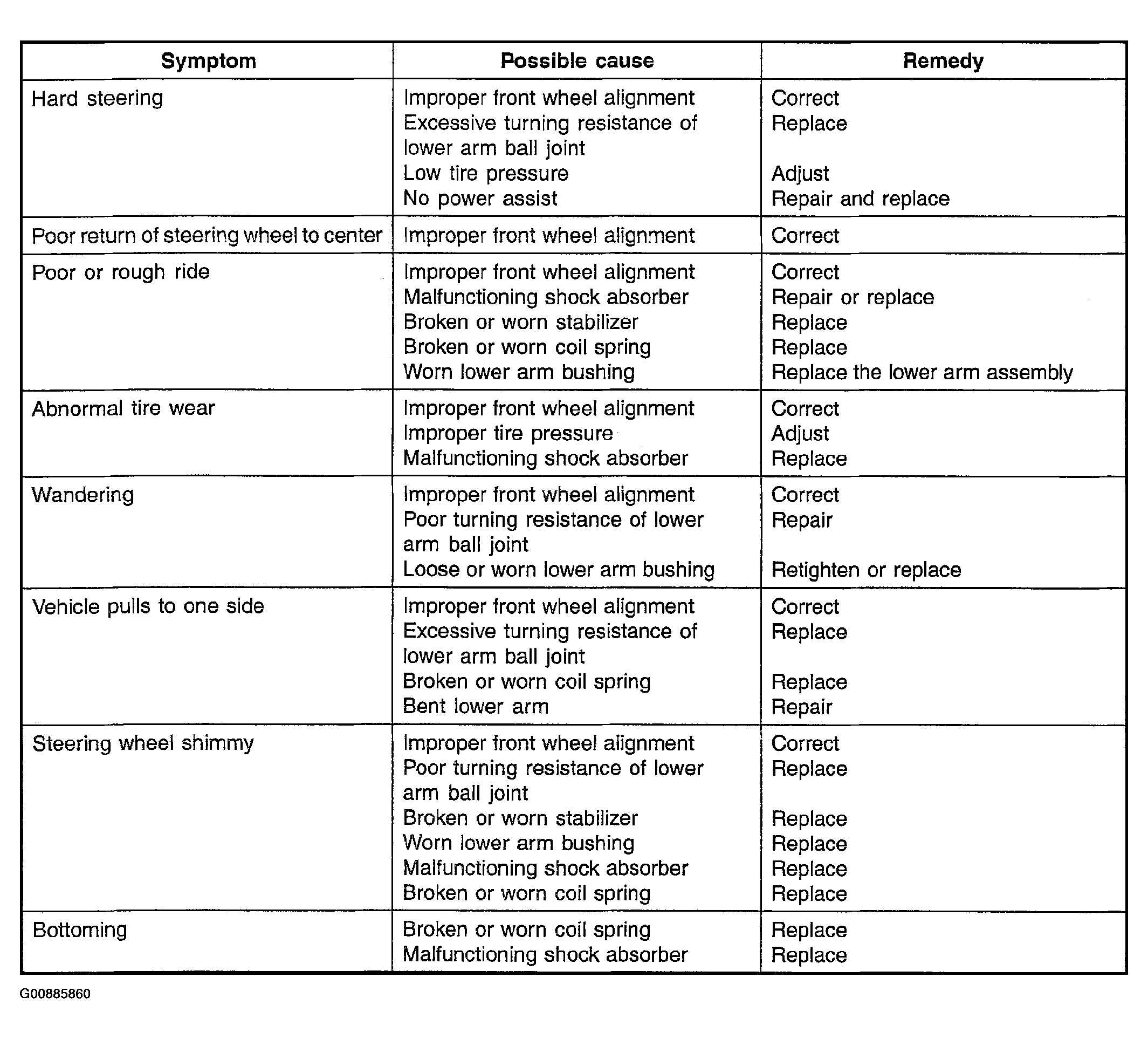

Fig 1: Troubleshooting Symptom Chart
Courtesy of HYUNDAI MOTOR CO.

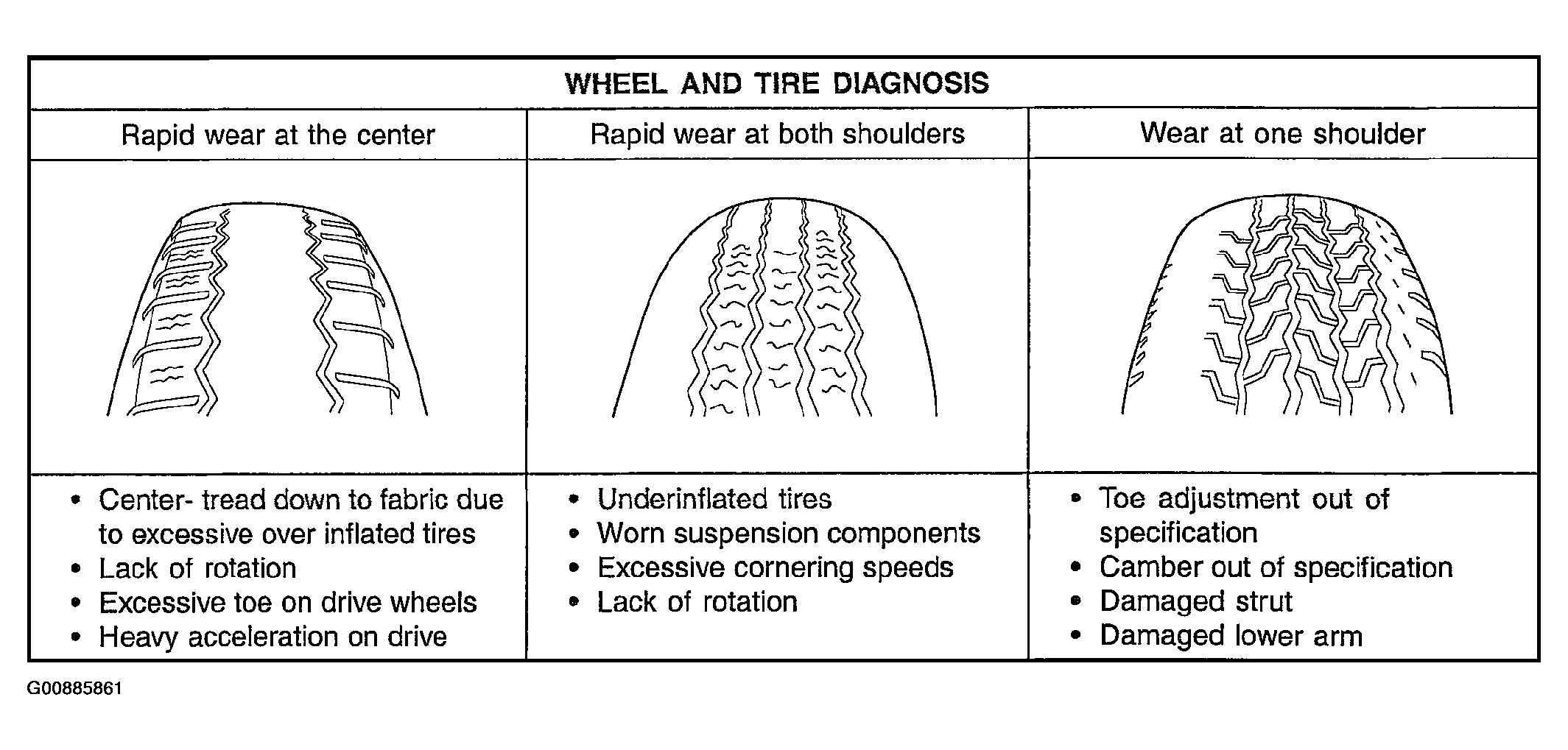

Fig 2: Wheel & Tire Diagnosis Table (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

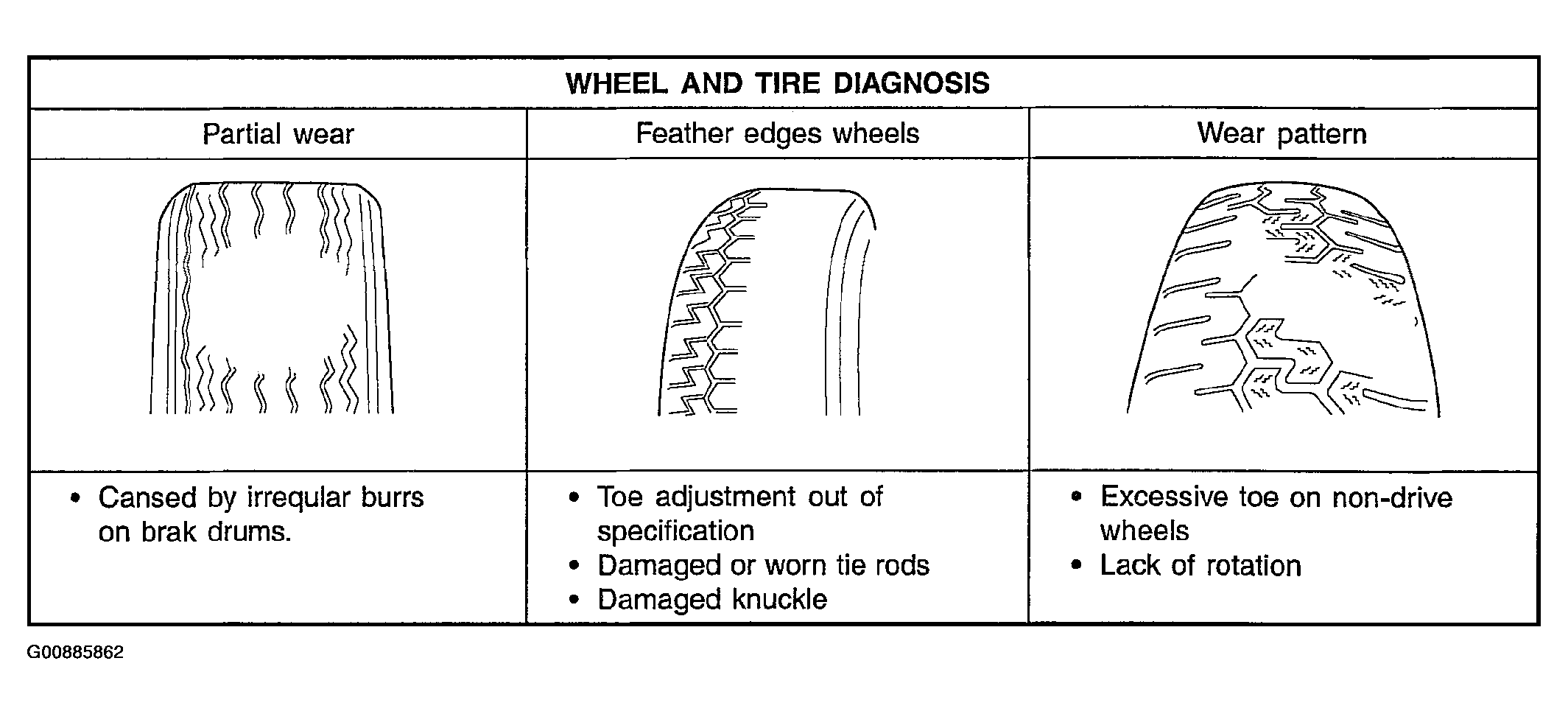

Fig 3: Wheel & Tire Diagnosis Table (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
