Tightening Torque

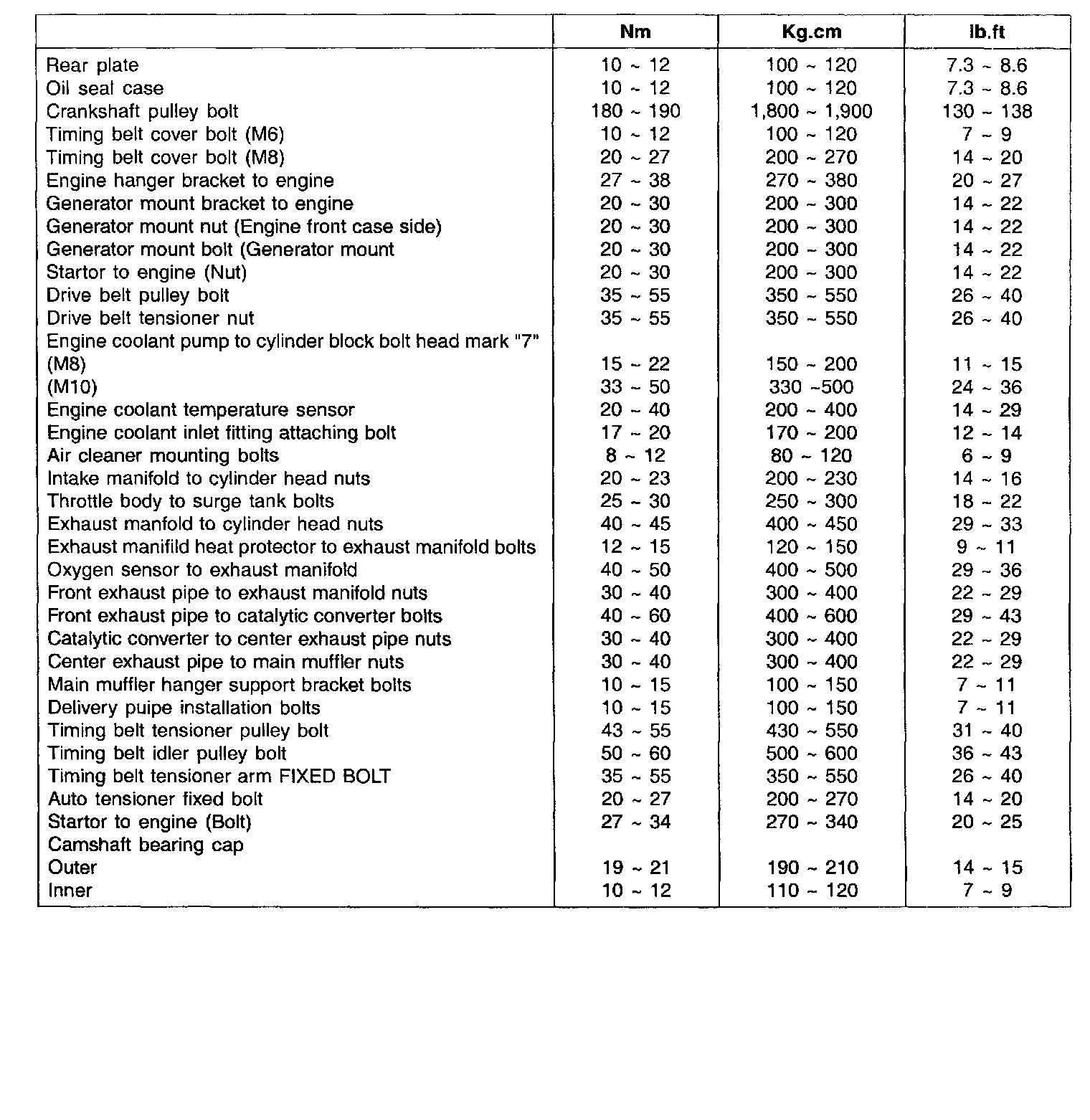

TIGHTENING TORQUE Part 1:

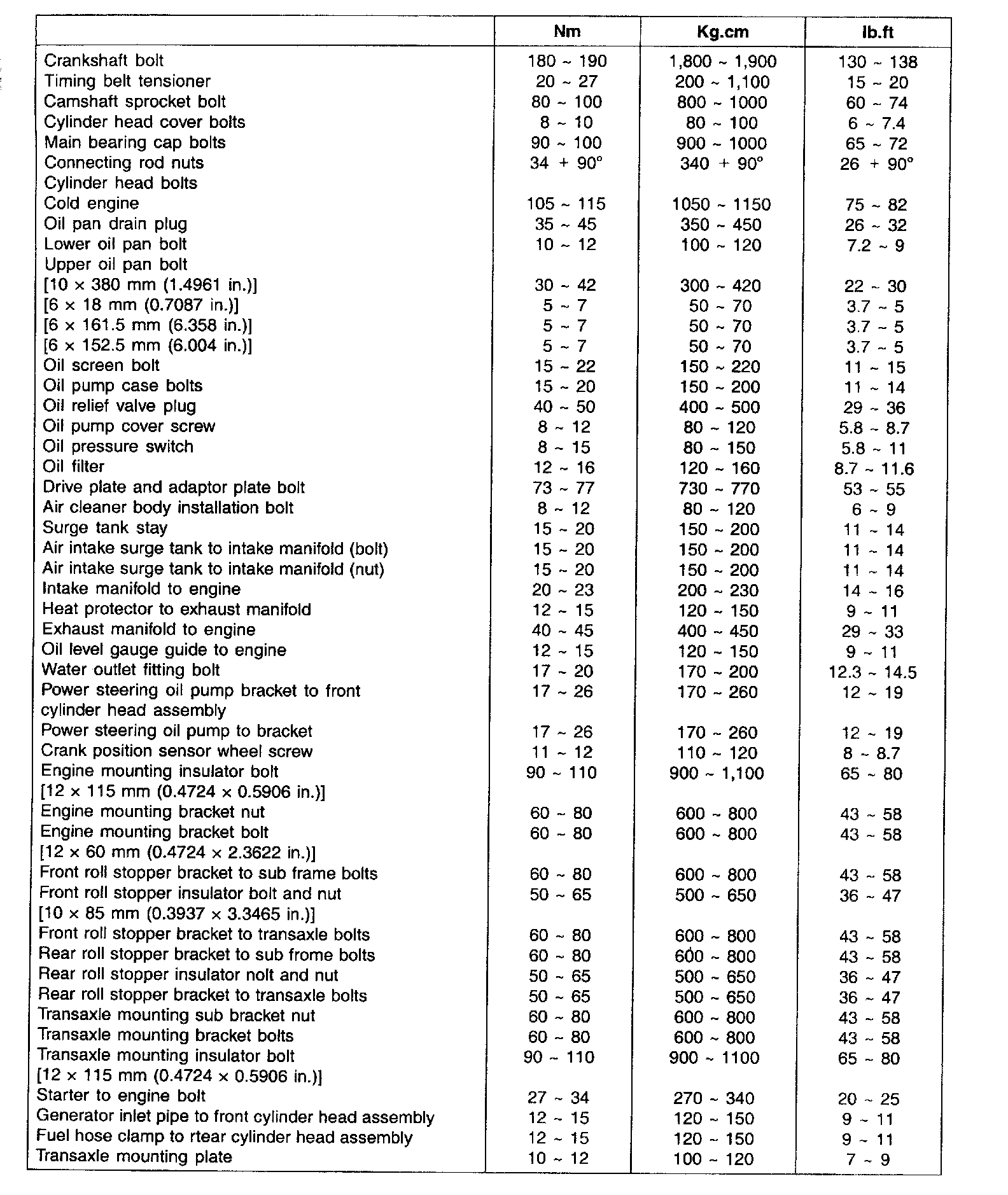

TIGHTENING TORQUE Part 2:





Cylinder Head Tightening Sequence:





Intake Manifold:





Camshaft Bearing Caps:
