Harness Inspection Procedures

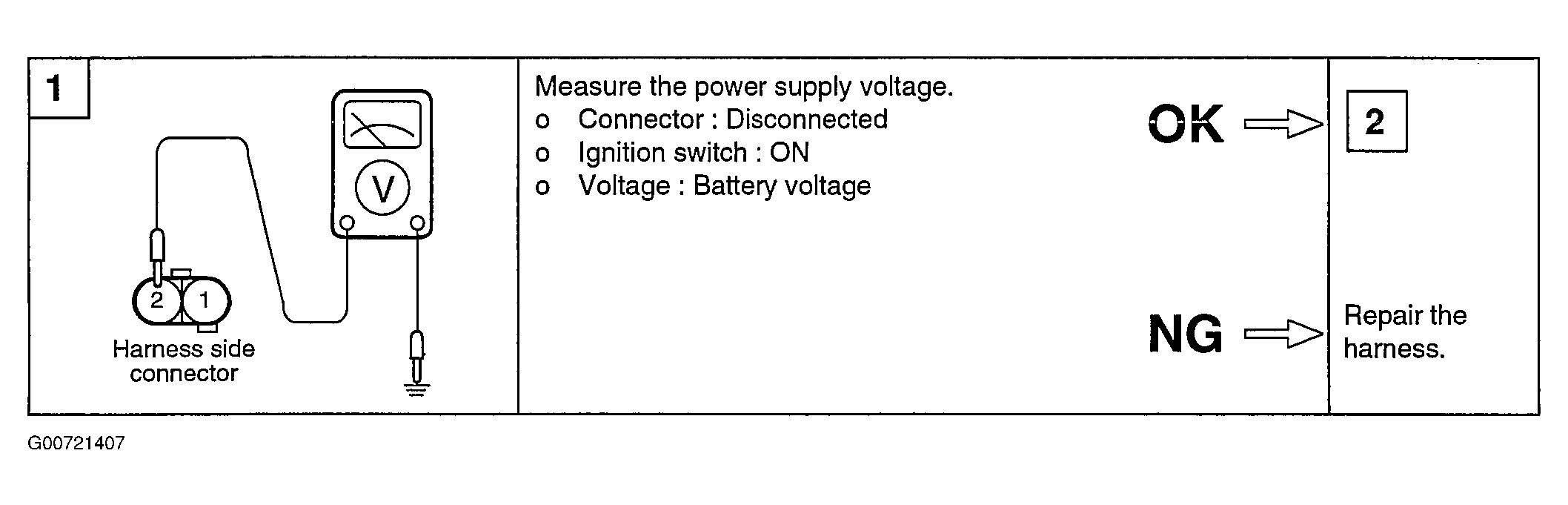

Fig 1: Checking EGR Solenoid Valve Harness (1 Of 2)
G00721407Courtesy of HYUNDAI MOTOR CO.

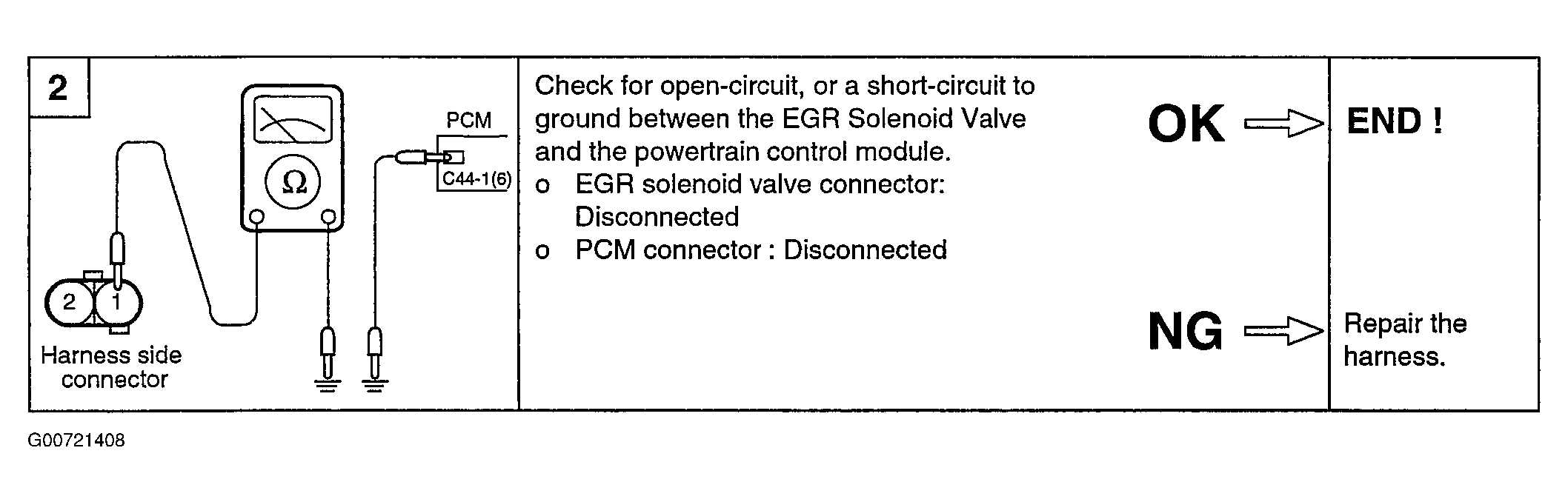

Fig 2: Checking EGR Solenoid Valve Harness (2 Of 2)
G00721408Courtesy of HYUNDAI MOTOR CO.
