Electronic Power Steering Control Module

The EPSCM is installed underneath the audio inside the center fascia.

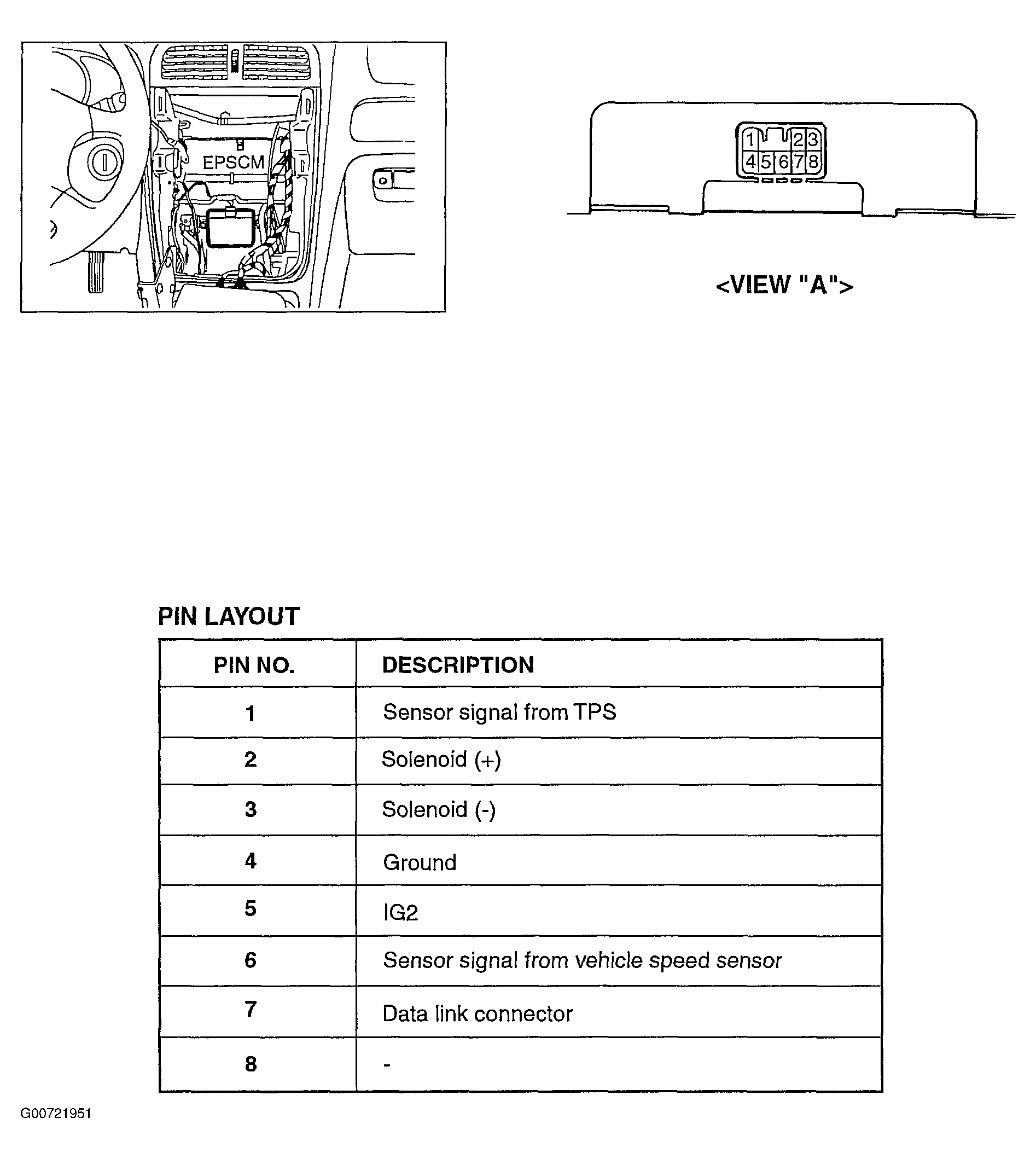

Fig 1: EPS Control Module Location/Identification
G00721951Courtesy of HYUNDAI MOTOR CO.
