Shift Lever: Components

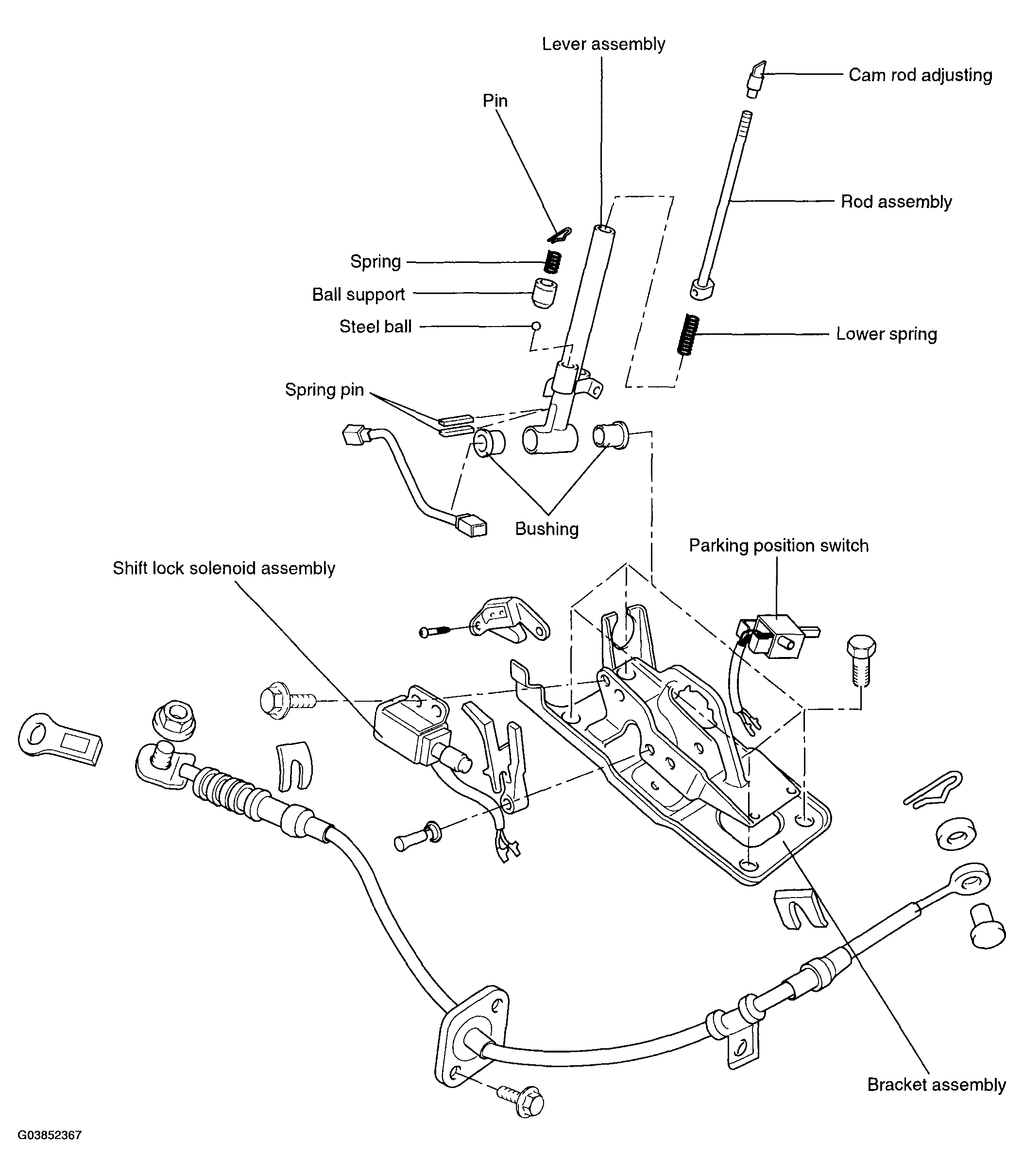

Fig 1: Identifying Shift Lever Components
G03852367Courtesy of HYUNDAI MOTOR CO.
