Charging System: Generator: Components

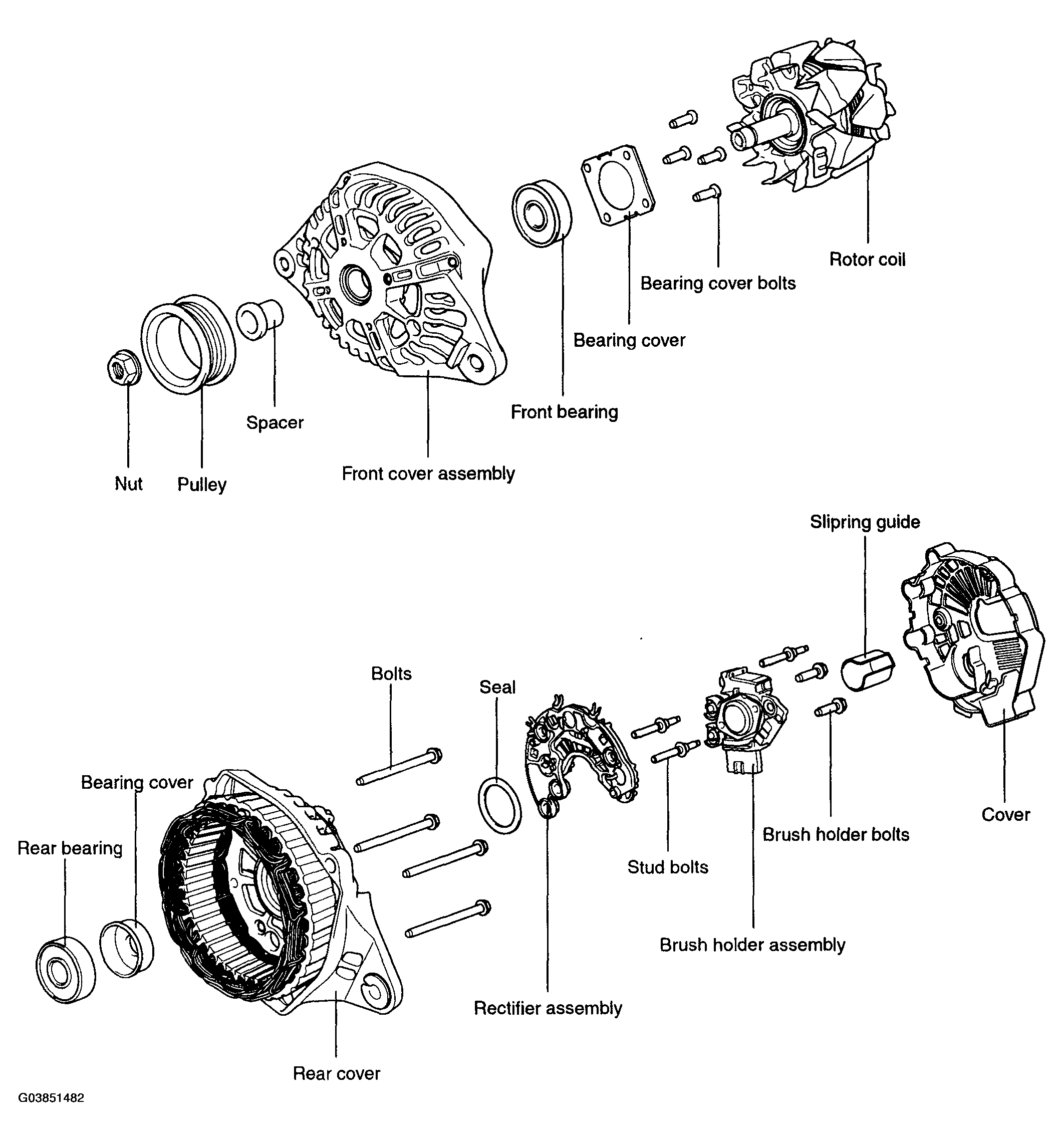

Fig 1: Exploded View Of Generator
G03851482Courtesy of HYUNDAI MOTOR CO.
