Installation

INSTALLATION

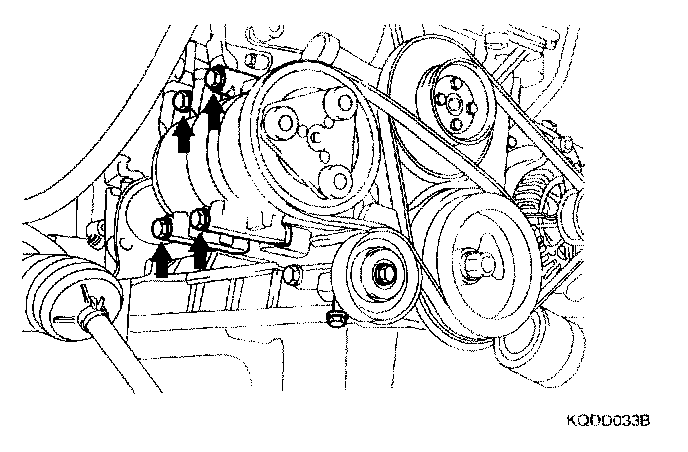

1. Tighten the 4 compressor mounting bolts
2. Connect the suction hose and discharge hose to the compressor.

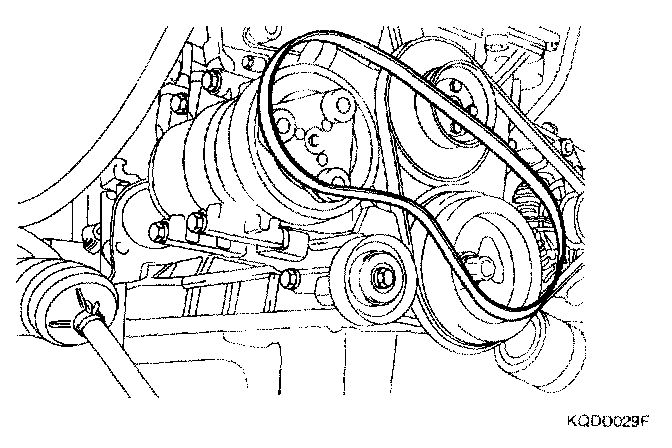

3. Connect the drive-belt.




4. Adjust the drive-belt tension.




5. Supply the coolant.
Specified amount: 550 ± 25g
