Elantra GLS, 4D Hatchback, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel System
>>
DTC Troubleshooting Procedures
>>
DTC P0196: Engine Oil Temp. Sensor Range / Performance
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

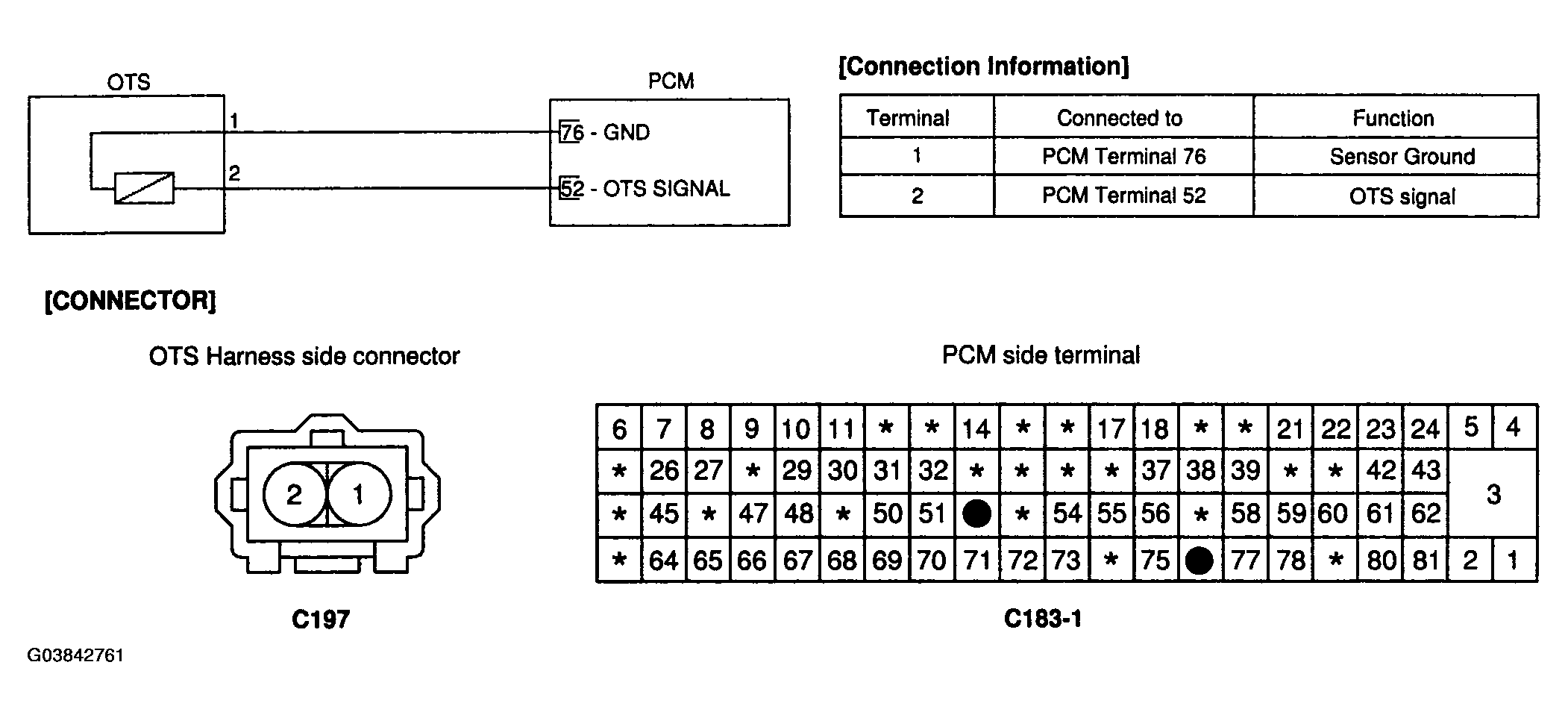

Fig 1: Engine Oil Temperature Sensor Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
