Component Inspection

Measure resistance between terminals 1 and 2 of the injector connector(Component side).

SPECIFICATION

INJECTOR RESISTANCE SPECIFICATIONS

Injector	Normal Parameter At 20°C (68°F)
Coil Resistance	13.8 ~ 15.2Ω
Insulation Resistance	Above 10MΩ

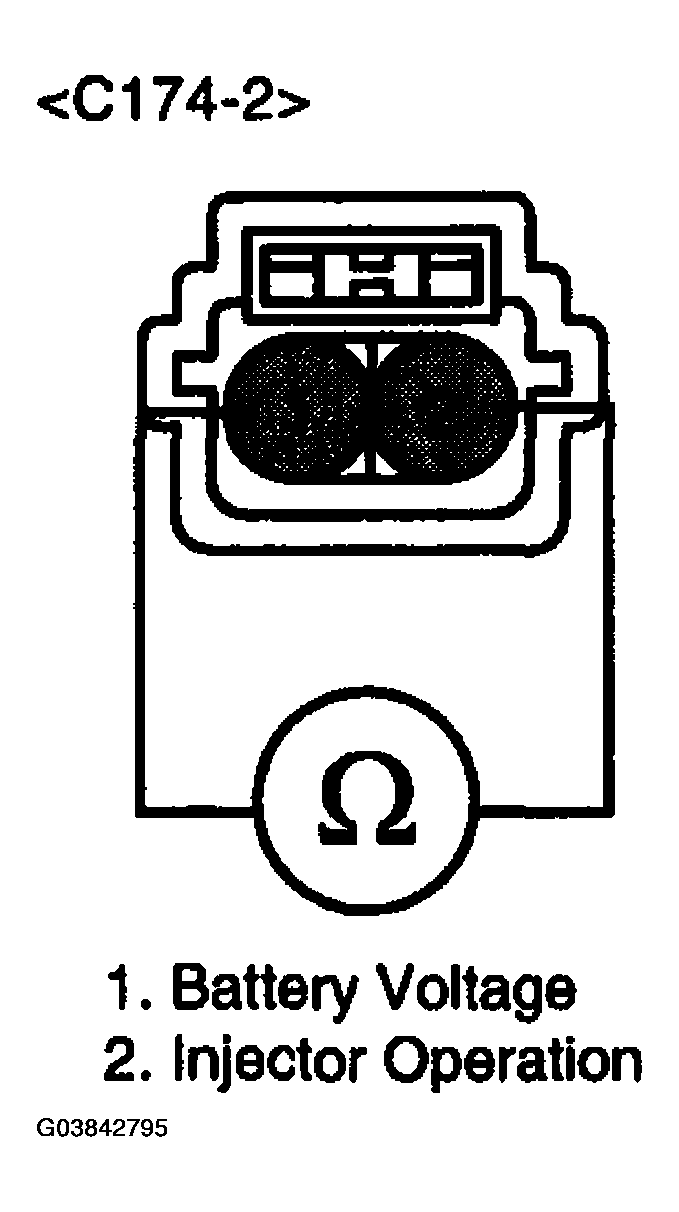

Fig 1: Measuring Resistance Between Terminals 1 And 2 Of Injector Connector

Courtesy of HYUNDAI MOTOR CO.

Is resistance within the specification?
YES
- Go to next step as below.
NO
- Check injector for contamination, deterioration, or damage. Substitute with a known-good injector and check for proper operation. If the problem is corrected, replace injector and then go to VERIFICATION OF VEHICLE REPAIR procedure.
