Automatic Transaxle Shift Control: Components

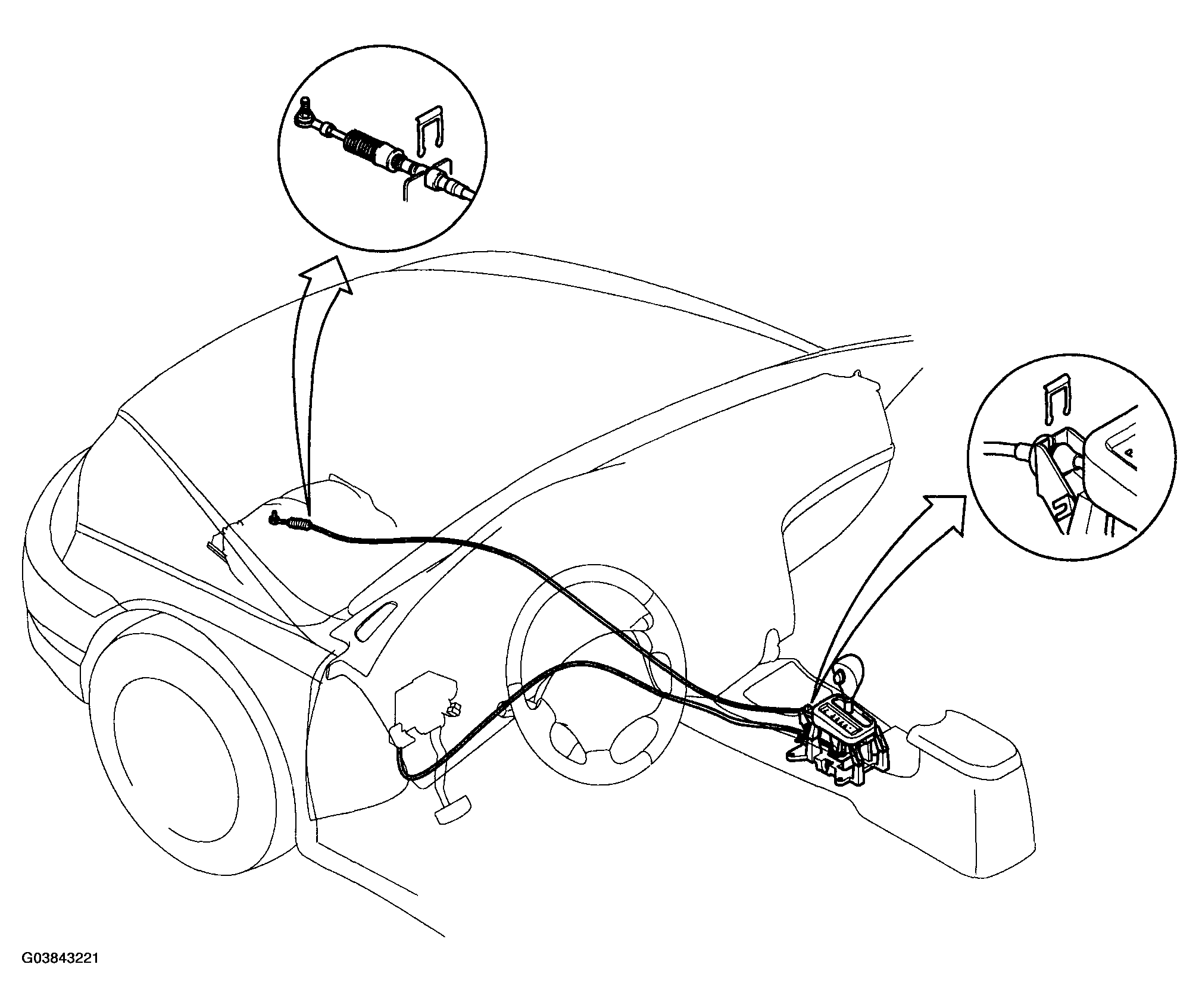

Fig 1: Identifying Automatic Transaxle Shift Control Components
G03843221Courtesy of HYUNDAI MOTOR CO.

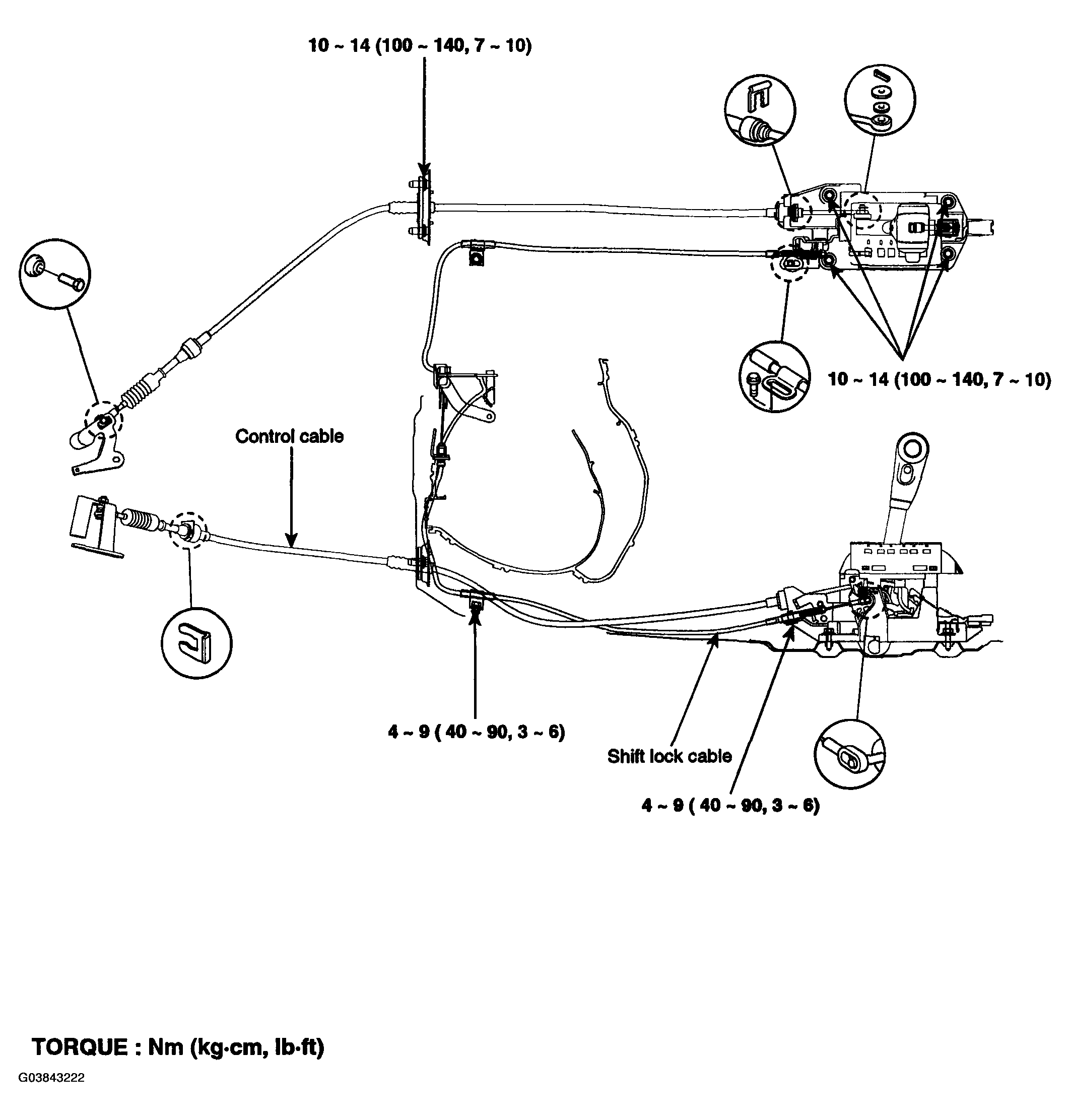

Fig 2: Automatic Transaxle Shift Control Replacement Components With Torque Specifications
G03843222Courtesy of HYUNDAI MOTOR CO.
