Transaxle Range Switch Continuity Check

Continuity check

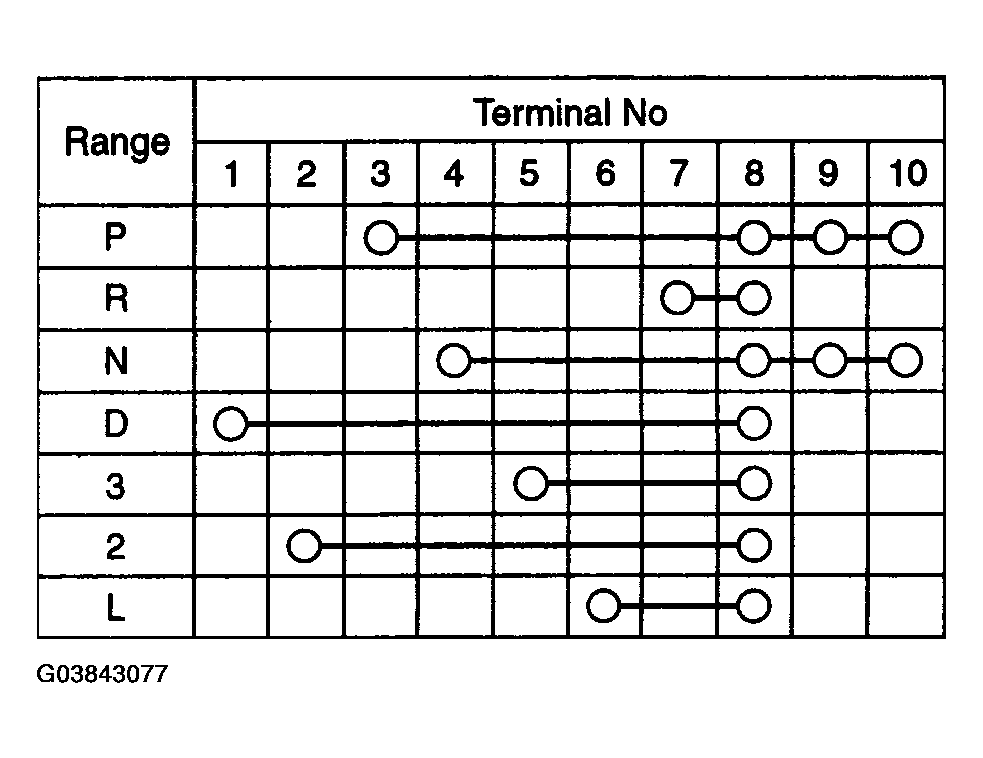

Fig 1: Transaxle Range Switch Continuity Chart
G03843077Courtesy of HYUNDAI MOTOR CO.

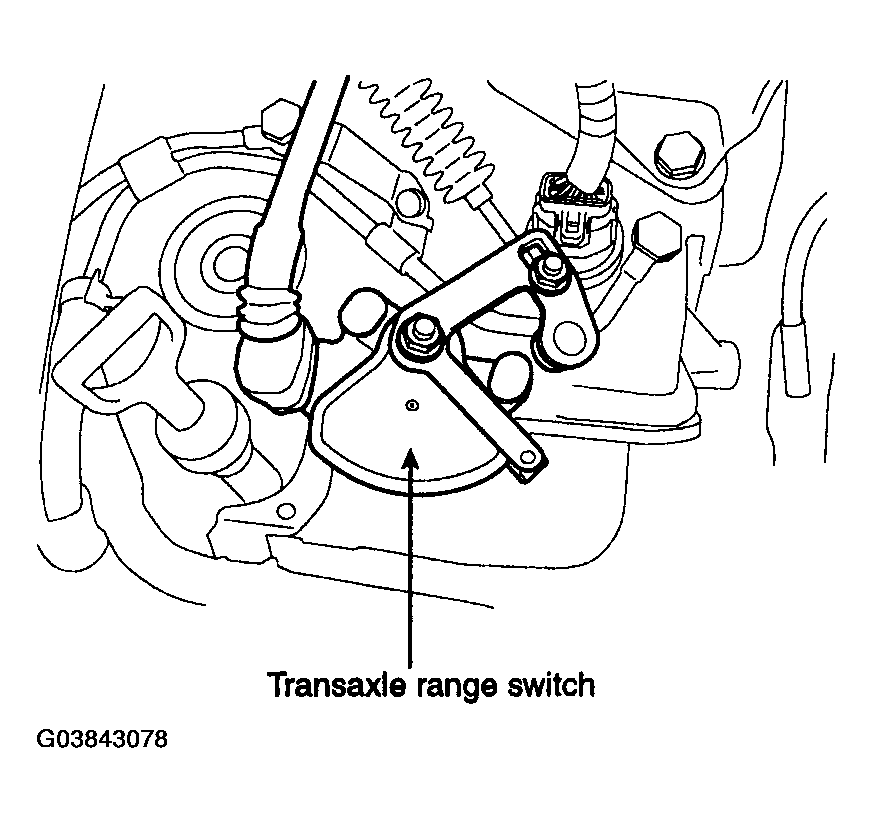

Fig 2: Identifying Transaxle Range Switch
G03843078Courtesy of HYUNDAI MOTOR CO.
Fig 3: Transaxle Range Switch Connector Terminals
G03843079Courtesy of HYUNDAI MOTOR CO.
